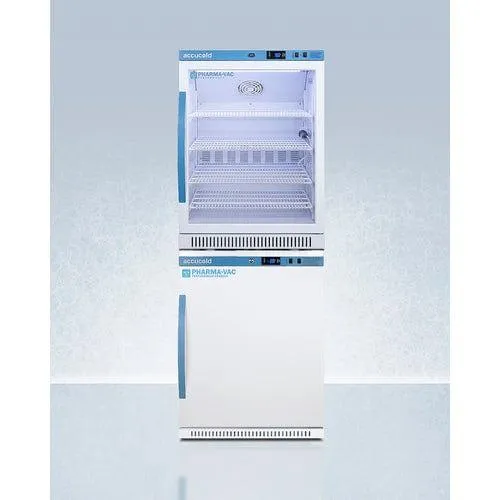

Accucold 24" Wide ARG6PV-AFZ5PVBIADASTACK Combo Refrigerator and Freezer

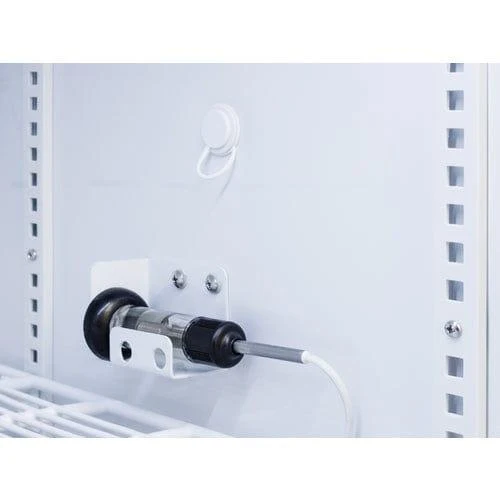

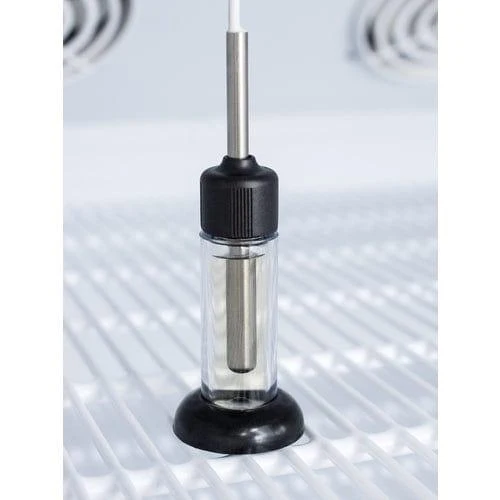

The Accucold ARG6PV-AFZ5PVBIADASTACK Combo Refrigerator and Freezer is specially designed for optimal vaccine storage. With a microprocessor temperature controller, the refrigerator maintains temperatures between +2 and +8ºC while the freezer maintains temperatures between -30 and -10ºC. The included buffered temperature probe is encased in a glycol-filled bottle to accurately replicate the temperature of stored products, while an additional sensor measures air temperature for superior control. The temperature can be viewed in Celsius or Fahrenheit to the nearest tenth of a degree, and audible and visual alarms will sound if the interior temperatures go out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. For added convenience, the units are equipped with remote alarm contacts and a probe port for additional monitoring devices. The built-in antimicrobial handles are coated with naturally occurring silver ions to reduce the spread of germs and provide a cleaner user experience. The hospital grade cord with

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines, with antimicrobial handle

Accucold offers innovative solutions to vaccine storage with our Performance Series stackable purpose-built refrigerator-freezer combinations designed to support meeting CDC/VFC guidelines.

Sized just under 24" wide, the ARG6PV-AFZ5PVBIADASTACK combines the 6 cu.ft. ARG6PV auto defrost all-refrigerator with AFZ5PVBIADA all-freezer into one slim footprint using Accucold's StackRack. This ships in three boxes and requires some minor assembly upon delivery.

Inside, the ARG6PV refrigerator utilizes adjustable cycle defrost operation to avoid temperature spikes. Optimized forced air cooling with an internal fan ensures excellent temperature stability and uniformity with rapid recovery after door openings. The adjustable plastic-coated wire shelves can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention.

The refrigerator is designed to be stacked on top of the AFZ5PVBIADA, our Performance Series 3.88 cu.ft. all-freezer that utilizes static manual defrost operation. The freezer includes four adjustable plastic-coated wire shelves for flexible storage.

Both units include front-mounted keyed locks and powerful magnetic gaskets to ensure a positive seal, with self-closing doors for added protection in high traffic settings. Additional stacked combinations are available. Browse Accucold's website for more information, or contact our sales team at 718-893-3900 to discuss your equipment needs.

NOTE: Accucold refrigerators are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate microprocessor controls and forced air circulation for stable operation between 2 and 8ºC. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

SPECIFICATIONS

Overview
Height of Cabinet	64.0" (163 cm)
Width	23.38" (59 cm)
Width with Door Open	23.88" (61 cm)
Depth	25.0" (64 cm)
Depth with Handle	26.75" (68 cm)
Depth with door at 90°	47.0" (119 cm)
Capacity	9.88 cu.ft. (280 L)
Door	Glass
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Voltage/Frequency	115 V AC/60 Hz
Parts & Labor Warranty	2 Years
Compressor Warranty	5 Years
UPC	761101104140
Refrigerator-Freezer
Door Swing	RHD
Reversible	Factory Reversible
Adjustable Shelves	Yes
Interior Light	Yes
Refrigerator - Interior Height	24.5" (62 cm)
Refrigerator - Interior Width	20.0" (51 cm)
Refrigerator - Interior Depth	17.0" (43 cm)
Refrigerator - Capacity	6.0 cu.ft
Refrigerator - Shelf Type	Wire
Refrigerator - Shelf Qty	4
Refrigerator - Temperature Range	2 to 8ºC
Refrigerator - Refrigerant Type	R600a
Refrigerator - Refrigerant Amount	1.66 oz.
Freezer - Interior Height	22.5" (57 cm)
Freezer - Interior Width	18.0" (46 cm)
Freezer - Interior Depth	18.0" (46 cm)
Freezer - Capacity	3.88 cu.ft
Freezer - Shelf Type	Wire
Freezer - Shelf Qty	4
Thermostat Type	Digital
Fan Type	Interior
Freezer - Temperature Range	-30 to -10ºC
Freezer - Refrigerant Type	R290a
Freezer - Refrigerant Amount	1.73 oz.

AVAILABLE UPGRADES

Exterior
DTFAR-Temperature display converted to Fahrenheit LHD - Left hand door swing DL2B - Factory installed NIST calibrated digital data logger (DDL)
Interior
LockBox24 - Interior locking compartment

FEATURES

Performance Series Refrigerator-Freezer Combination

Purpose-built all-refrigerator and all-freezer for vaccine storage in medical, pharmaceutical, and life science applications

Purpose-built design

Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines

+/-1ºC Variation

The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period

Space-saving design

Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint

Easy assembly

Unit ships in three boxes for customer to install the StackRack on the bottom refrigerator/freezer and place and secure the other unit on top

Antimicrobial silver ion-coated handles

Powder-coated handles with naturally occurring silver ions to help reduce the spread of germs

Adjustable temperature

Intuitive controls let you adjust the interior temperature between +2 to +8ºC (refrigerator) and -30º to -10ºC (freezer)

Temperature alarms

Visual and audible alarms alert if the interior temperature rises or falls out of set range

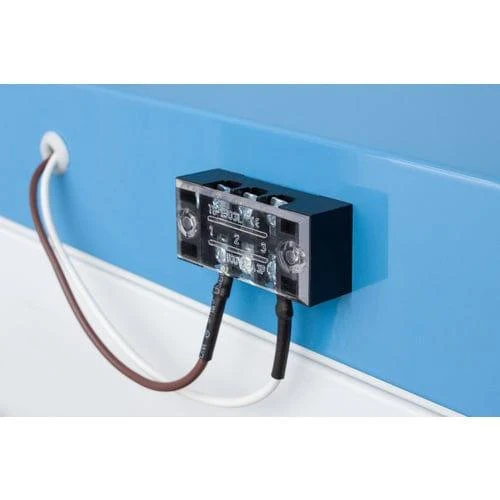

Remote alarm contacts

Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)

Automatic defrost with adjustable cycle defrost (refrigerator)

Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup

Manual defrost (freezer)

Static cooling system for reduced temperature fluctuations

Access ports

Both units include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment

Open door alarms

Alarms will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)

Audible power failure alarms

Battery-powered alarms sound if the power connection is interrupted

Sensor failure alarms

Audible and visual alarms warn if the sensor is disrupted

Password protection

Control panels require password entry to adjust the parameters beyond the set point

Microprocessor control panels

Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management

Resettable min/max displays

Control panels provide a readout of the low and high temperatures in 15 minute increments

Factory-installed locks

Keyed lock conveniently located towards the top of the door for added security (2 keys included for each unit)

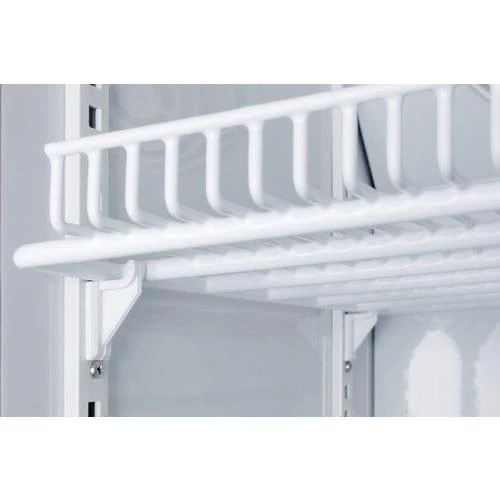

Adjustable plastic-coated wire shelves for improved circulation

Designed to accommodate a variety of sizes for flexible storage

Hospital grade cord with 'green dot' plug

Secure three-pronged cord for added unit safety

Interior light

Energy efficient LED lighting with internal on/off switch

Self-closing door

Added protection in busy settings; NOTE: door is not self-closing once reversed to an LHD swing

Magnetic door gaskets

Quality door gaskets ensure a tight seal for energy savings and improved performance

Extended warranty

2 years parts and labor/5 years compressor

Eco-Friendly (refrigerator)

Using environmentally friendly hydrocarbons refrigerants for a greener footprint

Usage stickers

Ships with removable warning stickers for "DO NOT UNPLUG," "DO NOT ADJUST TEMPERATURE," and "DO NOT STORE PERSONAL ITEMS"

Versatile design

Compatible with Pyxis®, Omnicell®, and AcuDose RX®

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
