Accucold 24" Wide Built-In All-Freezer, ADA Compliant ACF48WADA

Frost-free operation eliminates the need to defrost the interior

Accucold by Summit Appliance carries a range of general purpose and medical all-freezers designed for reliable, frost-free storage under the counter.

At 24" wide and 32" high, the ACF48WADA is ideally sized for various institutional settings following ADA guidelines for lower counter height. The front-breathing design allows built-in installation, while the fully finished cabinet also allows freestanding use. The user-reversible door includes a factory installed keyed lock for added security. This model comes in a white finish and includes a hospital grade cord with a 'green dot' plug for added security in high traffic areas.

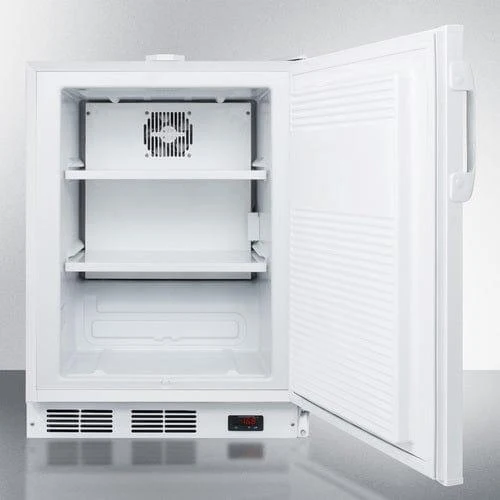

Full frost-free operation eliminates the need to defrost the interior, with an internal fan to keep the interior evenly cooled from top to bottom. A digital thermostat is located in the front kickplate, letting users manage the temperature without having to open the door. The interior includes two removable steel shelves.

Made in the USA, the ACF48WADA offers quality freezer storage in a conveniently sized and featured unit. It is ETL-S listed to NSF-7 commercial standards and meets UL-471. Additional door finishes are available. This model can also be paired with the matching FF7LWBIADA all-refrigerator.

SPECIFICATIONS

Overview
Height of Cabinet	32.0" (81 cm)
Height to Hinge Cap	32.25" (82 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	24.25" (62 cm)
Depth with door at 90°	45.13" (115 cm)
Capacity	3.1 cu.ft. (88 L)
Defrost Type	Frost-Free
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.5
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Shipping Weight	82.0 lbs. (37 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101051727
Freezer
Door Swing	RHD
Reversible	Yes
Shelf Type	Steel
Shelf Qty	2
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R134a
Refrigerant Amount	4.2 oz.
High Side PSI	285.0
Low Side PSI	70.0
Level Legs	4
Temperature Range	-5 to 10ºF/-20 to -12ºC

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing SCD - Self-closing door PH - Probe Hole Alarm/Thermometer - Factory-installed alarm with external temperature readout Latch - Factory-installed door latch requires manual release to open unit SSK - Stainless steel kickplate DL2B - Factory installed NIST calibrated digital data logger (DDL)
Lock
AC Keypad - AC powered keypad lock KEYPAD - Battery-powered keypad door lock
Handle
TBC Copper Towel Bar Handle CP Full-Length Copper Pipe Handle
Door
STO-Step-To-Open Door Pedal

FEATURES

ADA Compliant

32 inch height is designed to fit under ADA compliant counters

Built-in capable

Make the best use of space by installing your appliance under the counter and flush with other cabinetry

Slim undercounter dimensions

Sized at less than 24" wide and deep for an easy fit in space-challenged institutions

Frost-free operation

Low maintenance design ensures no frost buildup inside the unit

Digital temperature control

Electronic controls located in the exterior kickplate for precise temperature management

Factory installed lock

Keyed lock for added security, located towards the top of the door to ensure convenient access

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Removable shelves

Includes two slide-out shelves made from durable steel

Hospital grade cord

Secure three-pronged cord for added unit safety

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Matching refrigerator available

Pair with the FF7LBIADA to create a matching set

Reversible door

User-reversible door swing for added flexibility

Foamed-in-place cabinet

Quality design ensures efficiently insulated interior

Fully finished white cabinet

Allows the unit to be used freestanding

Commercially approved

Design meets UL-471 and is ETL-S listed to NSF-7 commercial standards

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals
