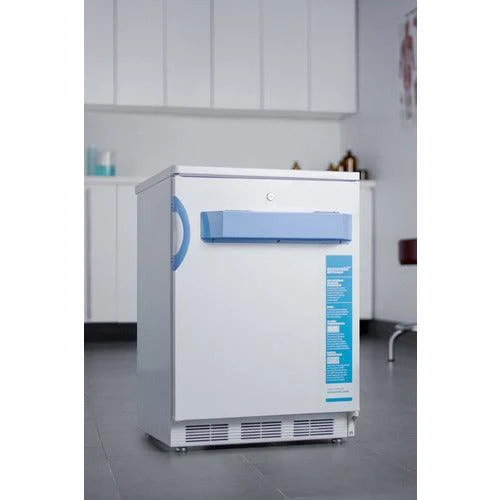

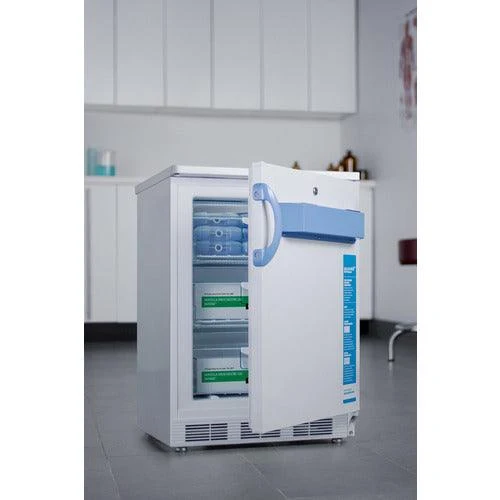

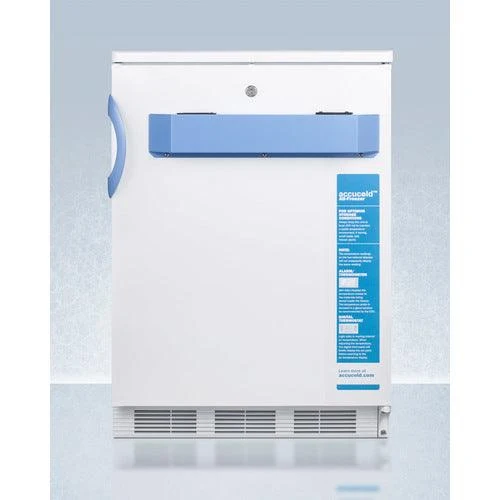

Accucold 24" Wide Built-In All-Freezer VT65MLBIMED2

The VT65MLBIMED2 is a 24" all-freezer designed with a front breathing layout for easy built-in installation under counters. Its versatile white finish allows for both built-in and freestanding use. This unit also features an external front control panel, located at a convenient height, for temperature adjustment and monitoring. Plus, a top-mounted keyed lock and hospital-grade 'green dot' cord provide added safety in busy environments.

Designed and constructed to meet strict CDC and VFC freezer guidelines

Accucold's MED2 series puts the most commonly requested features into a quality line of all-refrigerators and freezers specially designed to store vaccines and other sensitive materials in medical, scientific, pharmaceutical, and laboratory institutions.

As recommended by the CDC and VFC programs, the VT65MLBIMED2 is equipped with a NIST calibrated thermometer that displays the current, minimum, and maximum temperatures to the nearest tenth of a degree with a readout viewable in Celsius or Fahrenheit. Each VT65MLBIMED2 ships with a certificate of calibration for your records. The thermometer includes an audible alarm to warn users if the interior has gone out of the programmed temperature range. The buffered temperature probe is encased in a glycol-filled bottle to best simulate the temperature of other stored contents, resulting in the utmost accuracy for temperature reporting. We include a pre-installed 3/8" probe hole for users who wish to install additional monitoring equipment.

The VT65MLBIMED2 features a 3.2 cu.ft. interior capacity and extra thick walls for reliable insulation. Slide-out baskets with clear plastic fronts allow users to view stored contents without exposing them to room temperature every time the door is opened. This low temperature freezer is designed to operate between -12ºC to -25ºC, an ideal temperature for certain vaccines, samples, and other sensitive medical materials. It has a flat door liner as recommended by the CDC.

All MED2 series units are assembled in the USA from domestic and imported components. The VT65MLBIMED2 can be paired with a matching all-refrigerator (FF7LBIMED2) or ordered in a lower 32" height for use under lower ADA compliant counters (VT65MLBIMED2ADA). This unit can also be customized with additional features, including a self-closing door or USB temperature logger with a digital display. Contact our product specialists to learn more.  Products in the MED2 series come with a two year warranty on parts and labor and a five year warranty on the compressor.

*NOTE: This unit's thermostat is pre-set for Celsius. If you prefer Fahrenheit, add complimentary option DTMEDF or let your sales representative know upon order.

NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.

SPECIFICATIONS

Overview
Height of Cabinet	33.75" (86 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.5" (65 cm)
Depth with door at 90°	46.0" (117 cm)
Capacity	3.2 cu.ft. (91 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.3
Voltage/Frequency	115 V AC/60 Hz
Weight	105.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101056531
Freezer
Door Swing	RHD
Reversible	Factory Reversible
Interior Height	24.25" (62 cm)
Interior Width	17.63" (45 cm)
Interior Depth	17.0" (43 cm)
Thermostat Type	Digital
Fan Type	Exterior
Refrigerant Type	R134a
Refrigerant Amount	2.76 oz.
High Side PSI	235.0
Low Side PSI	88.0
Level Legs	4
Interior Drawers	Yes
Drawers Qty	3
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	17.63" (45 cm)
Compressor Step Depth	5.5" (14 cm)
Temperature Range	-12ºC to -25ºC

AVAILABLE UPGRADES

Exterior
TM1A - Factory-installed dry contacts with remote alarm Legs to raise unit height CAS3 3" casters LHD - Left hand door swing Latch - Factory-installed door latch requires manual release to open unit SSK - Stainless steel kickplate SCD - Self-closing door DTMEDF - Digital thermostat with Fahrenheit readout DL2B - Factory installed NIST calibrated digital data logger (DDL)
Handle
TBC Copper Towel Bar Handle CP Full-Length Copper Pipe Handle
Door
STO-Step-To-Open Door Pedal

FEATURES

Reliable temperature stability

Designed and engineered to store vaccines and other sensitive materials under stable temperature conditions

Slim undercounter dimensions

24" footprint is ideal for use under the counter

Built-in capable

Front-breathing design allows built-in installation under counters

-25º C/-13º F capable

Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials

Digital thermostat

Electronic controls for more precise temperature management, with temperature readout and controls externally located for added convenience

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

NIST calibrated temperature display

Alarm includes continuous NIST calibrated display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

Buffered temperature probe

Thermometer probe is encased in a glycol-filled bottle to maintain temperature readings closest to stored contents, as recommended by the CDC and VFC's guidelines

Factory installed lock

Keyed lock conveniently located towards the top of the door for added security (2 keys included)

Manual defrost

Static cooling system for reduced temperature fluctuations

Hospital grade cord and plug

Secure three-pronged cord for added unit safety

3/8" access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

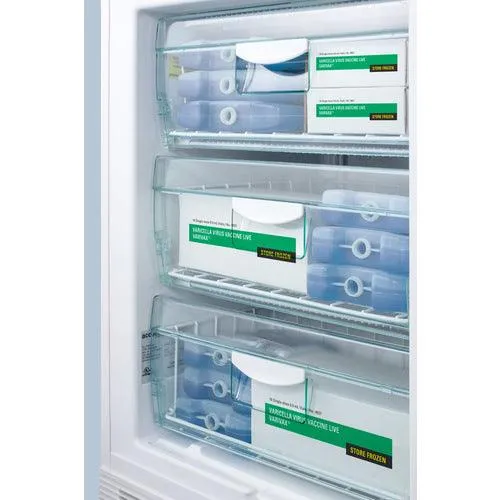

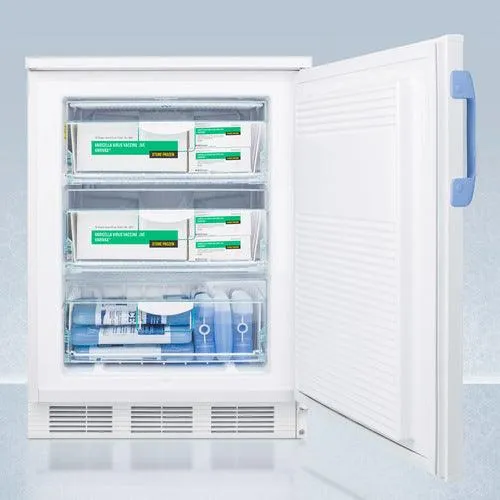

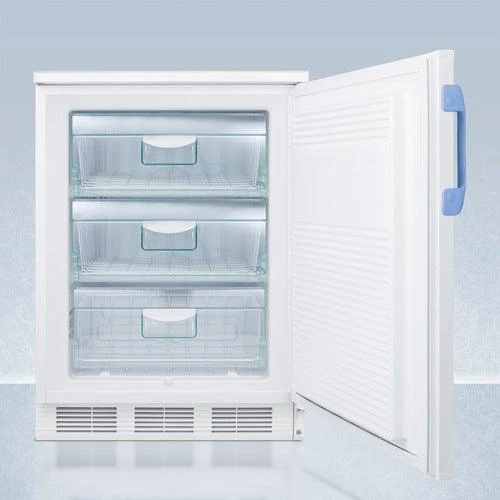

Three slide-out drawers

Slide-out wire baskets with plastic fronts offer convenient storage solutions while protecting stored items when the door is open

Flat door liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Fully finished white cabinet

Allows the unit to be used freestanding

Height adjustable

Adjustable legs allow the unit to be sized from 33 1/2" to 34 3/4" high

Foamed-in-place cabinet

Quality design ensures efficiently insulated interior

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Matching refrigerator available

Pair with the FF7LBIMED2 to create a complete set

Factory reversible door

Standard unit ships with a right hand door swing. For a left hand door swing, add option LHD upon order (due to its construction, this door is not reversible in the field)

Extended warranty

This unit comes with a two-year limited warranty on parts & labor and five-year warranty on the compressor

Approved for use in the USA and Canada

ETL and ETL-C listed for North American sales

100% CFC free

Environmentally friendly design without ozone-damaging chemicals
