Accucold ADA305AFSSHVLHD 20" Wide Built-In Healthcare All-Freezer | ADA

Slim-fitting ADA-compliant undercounter freezer ideal for providing extra storage to healthcare settings

Accucold offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA-compliant counters. These freezers have advanced features for safely storing select healthcare materials with strict storage conditions.

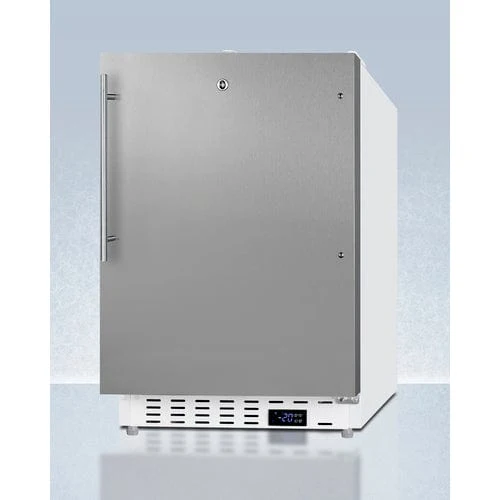

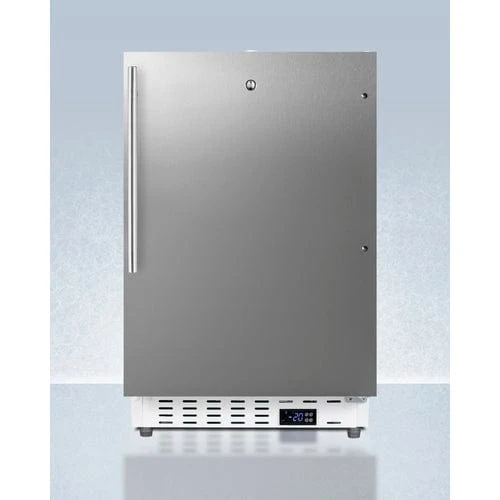

The ADA305AFSSHVLHD is sized at 32" high for use in ADA-compliant settings. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door features a sleek, vertically-mounted handlebar that matches many popular cabinetry styles and a top-mounted lock for added security and convenient access. A digital thermostat is located in the kickplate for easy temperature management with a readout in Fahrenheit or Celsius. This unit has a hospital-grade cord with a green dot plug for safety in high-traffic areas. Plus, powerful magnetic gaskets ensure a tight seal. This unit comes with a left-hand door swing. For a right-hand version, see the ADA305AFSSHV .

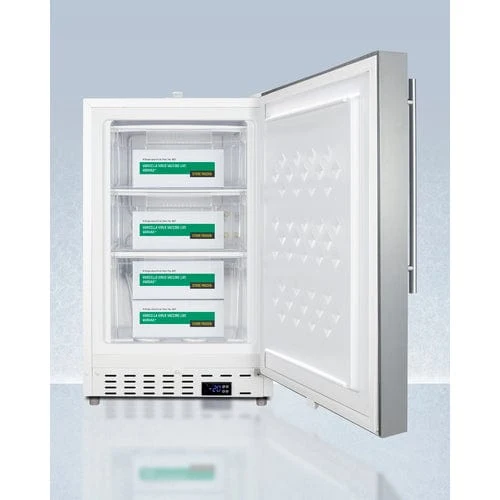

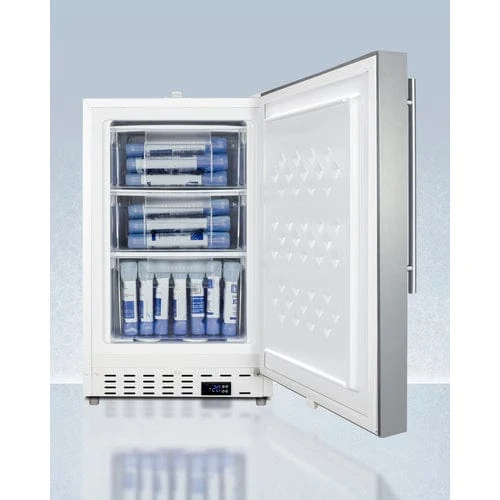

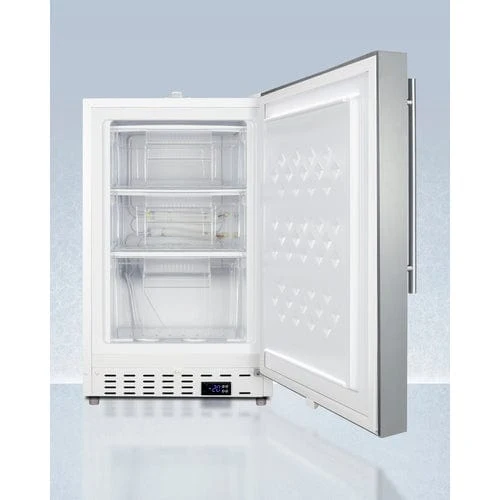

Inside, the ADA305AFSSHVLHD can reach temperatures as low as -25°C. Static manual defrost operation provides efficient cooling inside the 2.47 cu.ft. interior. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low-temperature alarms provide added security should the temperature exceed the set point, while the open-door alarm sounds if the door is ajar beyond one minute for added peace of mind. These alarms can be turned off depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment.

Sized at just under 20" wide, the ADA305AFSSHVLHD makes an ideal choice for various healthcare facilities in need of a dependable freezer capable of -20ºC/-25ºC operation. For a complete set, pair this unit with the matching ADA404REFSSHV all-refrigerator.

SPECIFICATIONS

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	31.75" (81 cm)
Height to Hinge Cap	32.0" (81 cm)
Nominal Width	21.0" (53 cm)
Width	20.88" (53 cm)
Nominal Depth	23.0" (58 cm)
Depth	22.5" (57 cm)
Depth with Handle	24.0" (61 cm)
Depth with door at 90°	40.25" (102 cm)
Capacity	2.47 cu.ft. (70 L)
Defrost Type	Manual
Door	Stainless Steel
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.1
Voltage/Frequency	115 V AC/60 Hz
Weight	75.0 lbs. (34 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101151328
Freezer
Door Swing	LHD
Reversible	Yes
Interior Height	23.75" (60 cm)
Interior Width	14.5" (37 cm)
Interior Depth	17.0" (43 cm)
Shelf Type	Drawers
Shelf Qty	3
Thermostat Type	Digital
Fan Type	Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.34 oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs	2
Interior Drawers	Yes
Drawers Qty	3
Compressor Step Height	5.75" (15 cm)
Compressor Step Width	14.5" (37 cm)
Compressor Step Depth	6.0" (15 cm)
Temperature Range	-25° to -15°C

AVAILABLE UPGRADES

Lock
AC Keypad - AC powered keypad lock KEYPAD - Battery-powered keypad door lock
Handle
CP Full-Length Copper Pipe Handle TBC Copper Towel Bar Handle

FEATURES

20" Wide Built-In Healthcare All-Freezer, ADA-Compliant

Slim-fitting all-freezer for general healthcare applications at an ADA-compliant height

ADA-Compliant Design

32" height allows easy installation under lower ADA compliant counters

-25°C Capable

Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials

Built-In Capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Stainless Steel Wrapped Door

Durable and stylish design with lasting elegance

Professional Stainless Steel Handle

Thin (14mm diameter) stainless steel handle mounted vertically for a sleek look that matches many popular styles of cabinetry

Factory-Installed Lock

Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

Access Port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

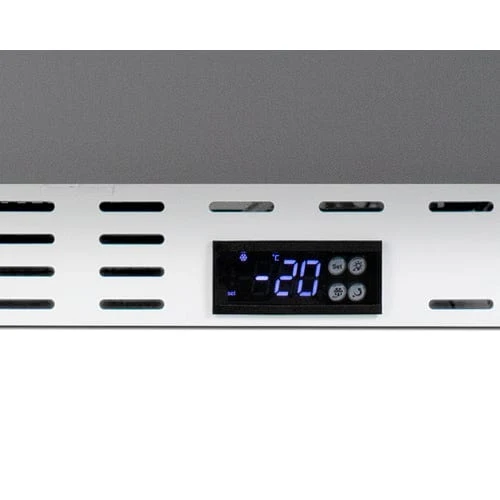

Adjustable Digital Thermostat

Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

Basket Shelves

Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened

Reversible Door

User-reversible door swing for added flexibility to best accommodate your setting

Temperature Alarms

User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Open Door Alarm

Audible alarm will sound if the door is left ajar for over a minute

Flat Door Liner

Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials

Manual Defrost

More temperature stability with an energy efficient manual defrost system

No Internal Fans

Temperature remains more stable with a static cooling system

Magnetic Door Gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Hospital Grade Cord With 'Green Dot' Plug

Secure three-pronged cord for added unit safety

Fully Finished White Cabinet

Allows the unit to be freestanding

Sealed Back

Space-saving design that offers easier cleanability

Left Hand Door Swing

For this unit with a standard right hand door swing, see model ADA305AFSSHV

Matching All-Refrigerator

This unit can be paired with the ADA404REFSSHV all-refrigerator for a complete set

100% CFC Free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
