Accucold UFM19WLHD 18 cu.ft. Upright Manual Defrost Freezer

Manual defrost operation creates a more stable environment for the storage of enzymes, reagents, samples, and other laboratory/clinical materials

Accucold's general purpose storage line includes upright manual defrost freezers designed for the storage of certain enzymes, reagents, samples, and other materials used in laboratory and clinical settings that require -20ºC temperatures with more stability than traditional no-frost equipment.

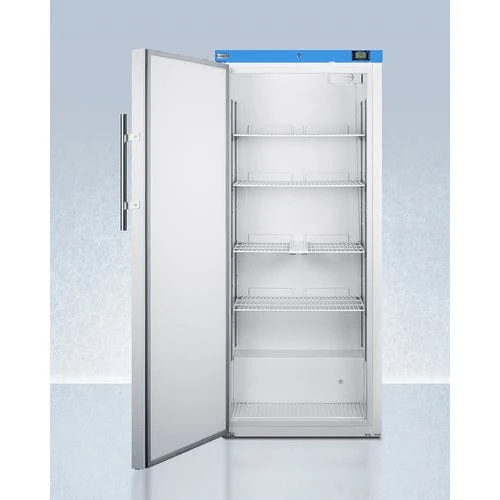

Model UFM19WLHD is a front-opening freezer with an 18.3 cu.ft. interior storage capacity. Manual defrost operation ensures a more stable interior with none of the warming cycles that can compromise temperature in traditional frost-free cooling systems. The dial thermostat is located inside to prevent accidental temperature adjustments, with a thermometer/alarm mounted externally to ensure a readout of the current and high/low interior temperature is visible without opening the door. The temperature probe is encased in glass beads and positioned in a fixed shelf in the center of the unit to best simulate the temperature of stored items. We include an additional probe hole to accommodate additional monitoring equipment. Cantilevered shelving provides more flexibility in storage, with tight spacing between the pilasters so you can adjust as needed. This unit has a flat door liner to accommodate deeper trays. An automatic LED light makes it easy to see the full interior.

This freezer comes in a white exterior finish with a blue accent on the front. The keyed lock is conveniently located towards the top of the unit for easier user access. The door includes an easy-grip handle in a brushed aluminum finish and comes with a left hand swing. This unit includes a 9'5" long power cord with a hospital grade 'green dot' plug for a more secure connection, ideal for high traffic environments. The cooling system utilizes hydrocarbon refrigerant for a greener footprint. For advanced insulation, the door features a vacuum seal that keeps all cold air inside.

The UFM19WLHD meets NSF-7 commercial standards and is ETL listed for the U.S. and Canada. It matches refrigerator model URM19W. It can be customized with additional features to best meet your storage needs, including digital data loggers (DDLs). For more information, contact our product specialists at 718-893-3900.

In addition to this freezer, Accucold manufactures frost-free choices for vaccine and laboratory storage, as well as purpose-built refrigeration lines approved to the NSF/ANSI 456 Vaccine Storage Standard.

SPECIFICATIONS

Overview
Nominal Height	71.0" (180 cm)
Height of Cabinet	70.75" (180 cm)
Nominal Width	31.0" (79 cm)
Width	30.5" (77 cm)
Nominal Depth	27.0" (69 cm)
Depth	27.0" (69 cm)
Depth with Handle	29.75" (76 cm)
Depth with door at 90°	54.13" (137 cm)
Capacity	18.3 cu.ft. (518 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	2.7
Voltage/Frequency	115 V AC/60 Hz
Weight	215.0 lbs. (98 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101145020
Freezer
Door Swing	LHD
Reversible	No
Interior Height	64.0" (163 cm)
Interior Width	25.0" (64 cm)
Interior Depth	20.88" (53 cm)
Shelf Type	Wire
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Dial
Interior Light	Yes
Refrigerant Type	R290
Refrigerant Amount	3.88 oz.
High Side PSI	280.0
Low Side PSI	145.0
Level Legs	2
Compressor Step Height	9.38" (24 cm)
Compressor Step Width	25.0" (64 cm)
Compressor Step Depth	7.25" (18 cm)
Temperature Range	-18 to -24ºC (Preset to -20ºC)

FEATURES

Upright manual defrost all-freezer

General purpose freezer designed for the storage of samples, enzymes, reagents, and other laboratory and clinical materials that require a more stable interior than traditional automatic defrost

Large capacity

Over 18 cu.ft. of storage inside

Manual defrost operation

Static cooling system with no fans or warming cycles

Dial thermostat

Intuitive and reliable mechanical thermostat located inside the unit to prevent unnecessary adjustments

-20ºC operation

Preset to -20ºC with a temperature range of -18 to -24ºC

High/low temperature alarm

Audible alarm sounds if the interior temperature rises or falls out of set range

External temperature readout

Includes continuous display of the current interior and high/low temperature, and can be switched from Celsius to Fahrenheit at the touch of a button

Buffered temperature probe

Thermometer probe is encased in a glass bead-filled bottle and stored in a fixed box on the center shelf. This is the ideal way to produce temperature readings closest to stored contents

Access port

3/8" probe hole with cover is pre-installed in unit's side to allow easy installation of user-provided monitoring equipment

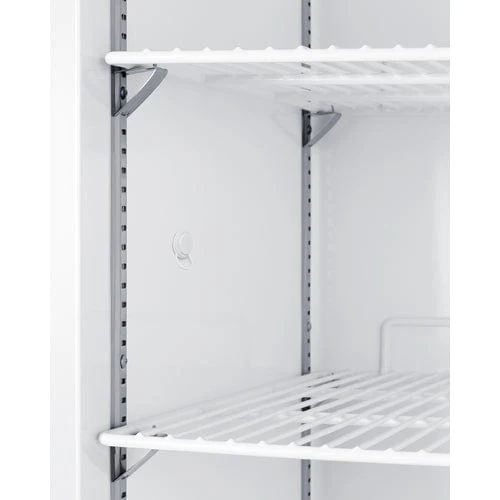

Cantilevered shelving

Tight pilaster spacing throughout the interior allows you to adjust the shelf positions to meet your exact storage needs

Fixed center shelf

Center shelf is fixed in place in order to provide the optimum position for the TMD to provide the most accurate temperature readings

Epoxy-coated wire shelves

Four heavy duty shelves included

Factory-installed lock

Conveniently located towards the top of the door for easier user access (2 keys included)

Flat door liner

No door storage to allow for the interior to accommodate deeper trays

Left hand door swing

This unit ships with a left hand door swing. For the doors to open in the other direction, see model UFM19W

LED lighting

Automatic interior lighting for an efficient presentation

9' long cord with hospital grade plug

Extra long power cord with hospital grade 'green dot' plug for a more secure connection

External handle

Easy-grip handle in brushed aluminum

Leveling legs

Adjustable front legs allow you to ensure a straight fit, even on uneven surfaces

Advanced vacuum seal insulation

Vacuum seal gasket design ensures no cold air escapes (NOTE: seal activates when door is closed, so you must allow a few minutes to pass before re-opening)

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
