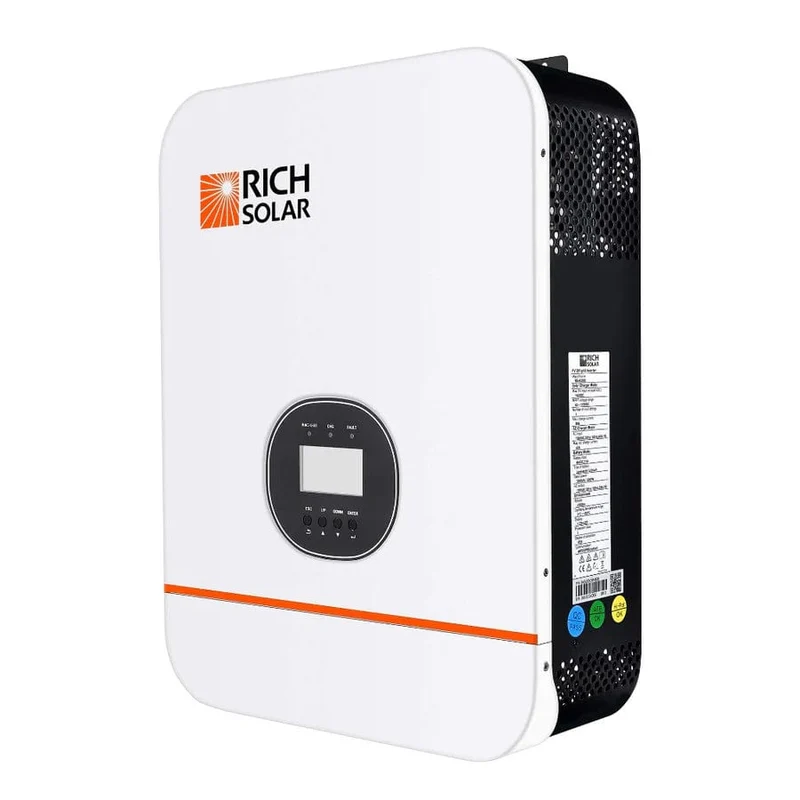

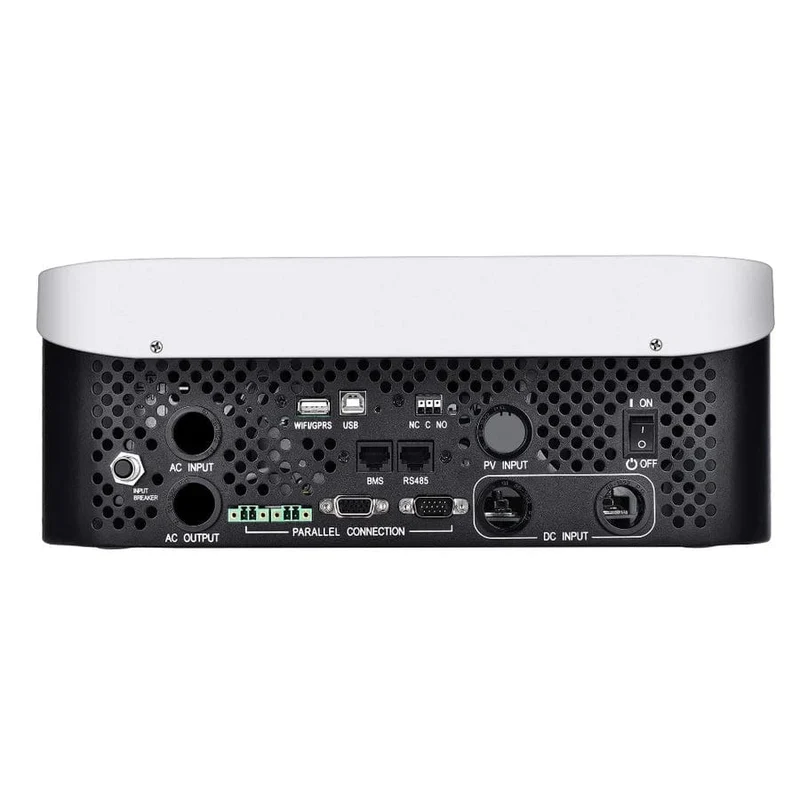

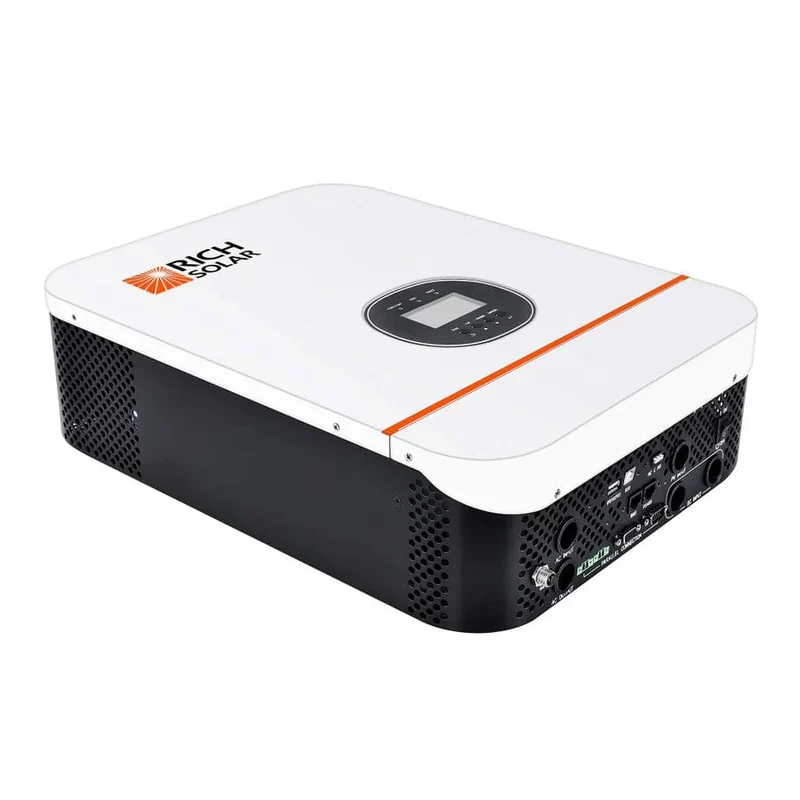

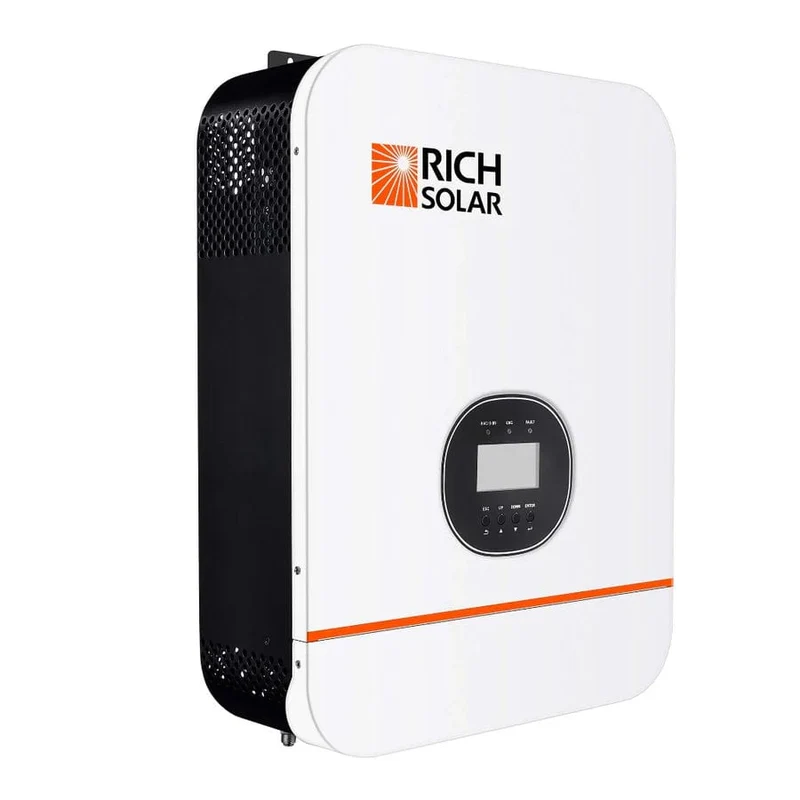

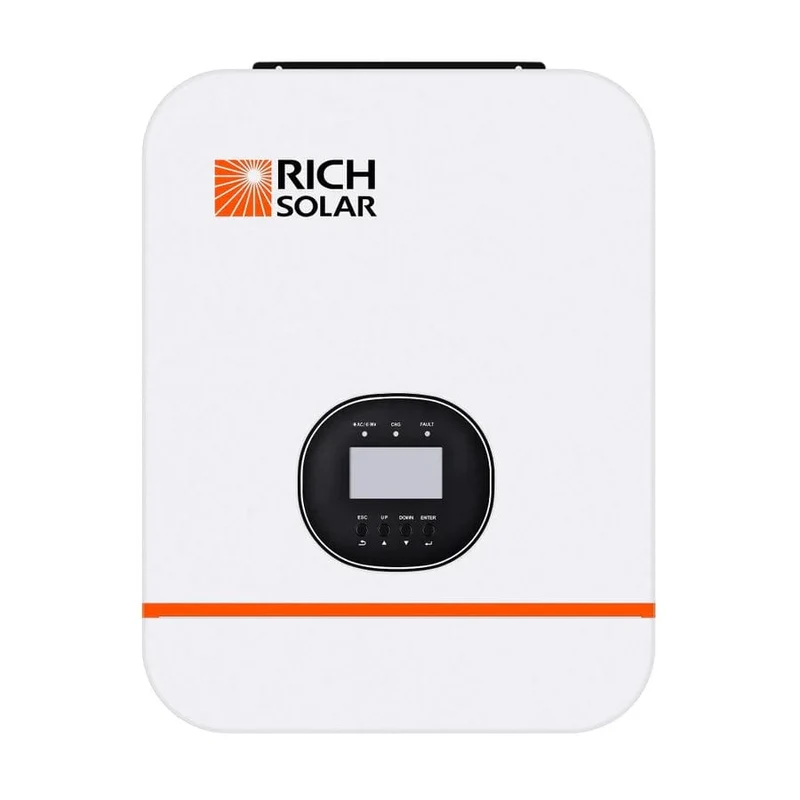

Rich Solar 3000 Watt (3kW) 48 Volt Off-grid Hybrid Solar Inverter

Introducing the Rich Solar 3000 Watt Hybrid Solar Inverter - the perfect solution for your off-grid power needs. With its NOVA 3K technology, this inverter delivers 3000 watts of premium power for RVs, cabins, and tiny homes. Rated as a top performer in its class, trust the Rich Solar 3000 Watt Hybrid Solar Inverter for all your off-grid adventures.

Features:

• Pure Sine Wave Inverter

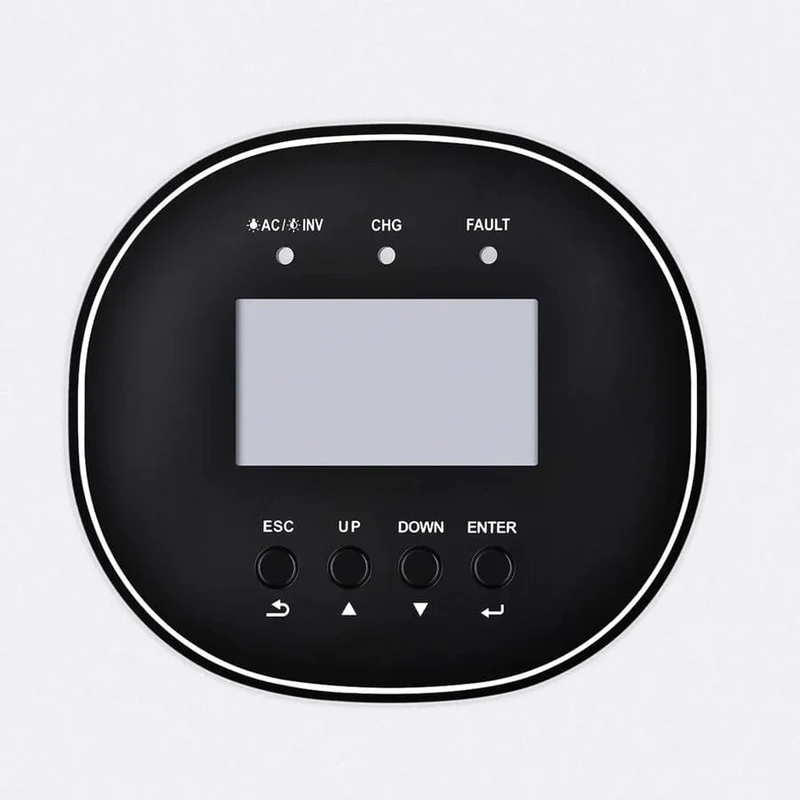

• LED Display
• WI-FI/GPRS Remote Monitoring (optional)
• With CAN/RS486 for BMS Communication
• Integrated MPPT charge controller
• Configurable grid or solar input priority
• 48V Battery System
• Compatible to Mains Voltage or Generator Power
• High Frequency Inverter with Small Size and Lightweight
• Overload, Short Circuit and Deep Discharge Protection
• Parallel Operation Up to 6 Unit

Specifications:

48V 3000 WATT INVERTER

Rated Power:	3000VA/3000W
Parallel Capability:	Yes
AC Voltage Regulation (Battery Mode):	120 VAC
Efficiency (Peak):	93%
Waveform:	Pure sine wave
Transfer Time:	10 ms (personal computers); 20 ms (home appliances)
Weight:	25.4 lb
Dimensions:	13.8″L x 5.1″W x 18.0″H

SOLAR CHARGER INPUT

Maximum PV Array Power:	4500W
MPPT Range @ Operating Voltage:	60VDC ~ 115VDC Maximum PV
Array Open Circuit Voltage:	145VDC
Efficiency (Peak):	93%
Waveform:	Pure Sine Wave
Max Solar Charge Current:	80A
Maximum Efficiency:	98%
Standby Power Consumption:	2W

AC OUTLET CHARGER

Charge Current:	40A
AC Input Voltage:	120VAC
Selectable Voltage Range:	95-140 VAC (For Personal Computers); 65-140 VAC (For Home Appliances)
Frequency Range:	50Hz/60Hz (Auto sensing)

OPERATING ENVIRONMENT

Humidity:	5% to 95% Relative (Non-condensing)
Operating Temperature:	0°C – 55°C
Storage Temperature:	-15°C – 60°C

Downloads:

• Specification Sheet
• User Manual
