Ruixu | Lithi2-16 | 51.2V314Ah | 16kWh Battery | UL1973,9540A,9540,CEC,SGIP

Standard Included:

• (1) RUiXU Lithi2-16
• (1) RJ45/CAT5e Patch Cable
• (1) Ground Cable
• (1) Set of  parallel 1/0 AWG  OP140 or PP140 cable

Lithi2-16

• Nominal voltage ：51.2V
• Nominal [email protected] ：314 Ah
• Min. [email protected]：314 Ah
• Nominal energy :16.07kWh
• Dimension(H*W*D):924(with wheels)*543*250mm | 36.3(with wheels)*21.3*10inch
• Weight: ~137kg （302.01lb)
• Cycle life@80% DOD:≥9500 cycles

COMMUNICATIONS:

• Canbus : Victron,SMA,Studer Innotec,Sofar,Solark,Solis,Goodwe,Deye,
• Growatt,SAJ,LUXPOWER,Megarevo,INVT,Sermatec,TBB,
• MUST,Sunsynk,Schneider
• RS485 : MPP,Voltronic,RCT,Alpha outback

EXPANDABLE

Support 32pcs in parallel expandable from 16kWh to 512kWh for both residential and commercial buildings.

IP55
Perfect for outdoor applications
This product is for both indoor or outdoor use. If installed outdoors, it is recommended to add arain shelter and a sunshade.

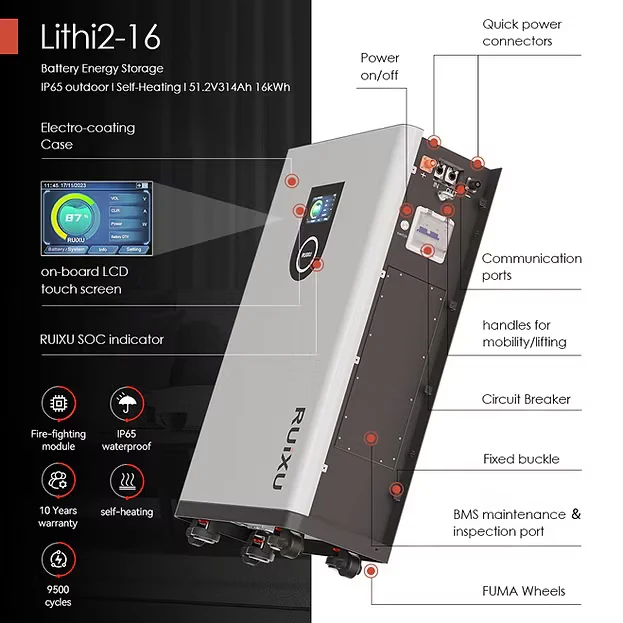

ON-BOARD LCD TOUCH SCREEN 5-inch capacitive touch screen provides battery information and allows easy and intuitive adjustment of battery settings. GAS AEROSOL FIREROOF MODULE Gas Aerosol Fireroof module improves fire protection inside the battery pack to both electrical lines and cells. QUICK PLUGS

Quick plugs provide 250A (continuous) overcurrent capacity, easy tool-less connection, long-term anti-loosening and heating protection.

FUMA WHEELS AND WALL MOUNTED FIXATION

Four concealed heavy-duty Fuma wheels facilitate movement of the battery without detracting from the elegant design. An anti-tipping mount on the back anchors the battery to the wall.

BATTERY MAINTENACE AND INSPECTION PORT

An inspection port on the side of the battery provides access to the BMS and fuse for ease of maintenance.

ALL POLE PROTECTION

All-pole, dual protection through fuse (negative terminal) and micro circuit breaker (positive terminal).

INTELLIGENT BALANCING

A double equilibrium approach achieves efficient cell balancing by calculating capacity differences between battery cells from charging-process data and by extending the balancing time, improving the efficiency and reliability compared to general passive and active balancing modes.

SELF-HEATING FEATURE

Keeping your battery charged in cold temperatures .

ELECTRO-COATING BATTERY CASE FOR OUTDOOR USE Electro-coating (electrophoresis) of the battery enclosure provides excellent rust prevention for outdoor use.The electrophoretic coating process is widely used in the production of automotive body shells
