Summit 10 Cu.Ft. Chest Freezer SCFM103

This item has been discontinued click HERE to see the replacement.

Durable construction to meet NSF-7 commercial standards

SUMMIT COMMERCIAL offers a quality selection of manual defrost chest freezers designed for a variety of storage applications in commercial establishments.

The SCFM103 is ETL-S listed to NSF-7 standards for commercial use. The large interior offers 10 cu.ft. of storage capacity. The lid features counterbalanced hinges to stay open, making it easier to load and unload. We include a handle and keyed lock with two keys for optional user installation. This freezer features two pre-installed stainless steel corner protectors to help shield the unit's sides in busy environments.

Inside, the SCFM103 features a hammered aluminum interior for lasting durability in commercial settings. Two sliding wire baskets offer easy storage and a divider lets you separate items stored on the right side. This unit utilizes static manual defrost cooling, with a defrost drain located in the front. The cord features a right angle plug for an easier fit into your outlet. The dial thermostat is located in the front corner, with a power indicator and an alarm light that will illuminate if the unit is operating warmer than -11ºC (12.2ºF). We include a removable thermometer that conveniently hooks onto a basket for a quick temperature reference.

In addition to this unit, SUMMIT COMMERICAL offers additional sizes of commercially listed manual defrost freezers, as well as frost-free choices and low temperature freezers all approved to NSF commercial standards. Browse our full lineup to find the right storage solution for your needs.

SPECIFICATIONS

Overview
Height of Cabinet	33.25" (84 cm)
Width	44.0" (112 cm)
Depth	25.5" (65 cm)
Depth with Handle	27.25" (69 cm)
Capacity	10.0 cu.ft. (283 L)
Defrost Type	Manual
Door	White
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	2.47
Voltage/Frequency	115 V AC/60 Hz
Weight	120.0 lbs. (54 kg)
Shipping Weight	130.0 lbs. (59 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101080826
Freezer
Door Swing	Lift-Up
Interior Height	26.0" (66 cm)
Interior Width	38.0" (97 cm)
Interior Depth	18.0" (46 cm)
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	2.2 oz.
High Side PSI	300.0
Low Side PSI	130.0
Wheels	4
Compressor Step Height	8.75" (22 cm)
Compressor Step Width	7.75" (20 cm)
Compressor Step Depth	18.0" (46 cm)
Temperature Range	-10 to -26ºC

AVAILABLE UPGRADES

Exterior
Alarm/Thermometer - Factory-installed alarm with external temperature readout PH - Probe Hole DL2B - Factory installed NIST calibrated digital data logger (DDL)
Door
TOPCFSL Stainless Look Lid

FEATURES

Large capacity

10 cu.ft. of interior storage

Commercially approved

ETL-S listed to ANSI-NSF Standard 7 for commercial use

Lock included

Ships with a keyed lock and two keys for optional installation on the lid

Manual defrost operation

Static cooling system with a front drain for easier defrosting as needed

Counterbalanced hinges

The lid will remain open once lifted for easier loading

Thick insulation

3 1/2" thick walls ensure proper insulation for reliable storage

Stainless steel front corner protectors

Factory-installed external "bumpers" to help protect the corners in busy high traffic environments

Hammered aluminum interior

Solid construction for durable storage in busy settings

Easy-grip handle

External handle for easy opening (ships unsassembled)

Adjustable thermostat

Dial thermostat ensures intuitive temperature management

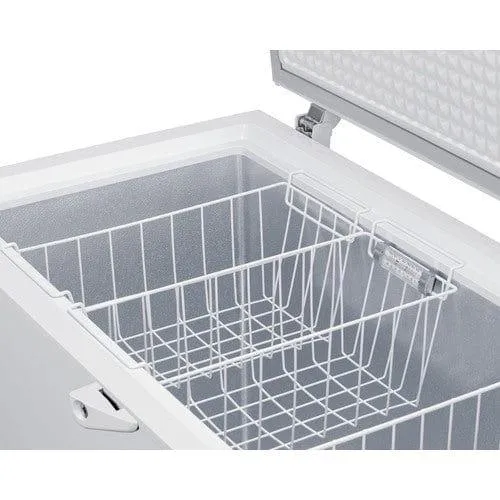

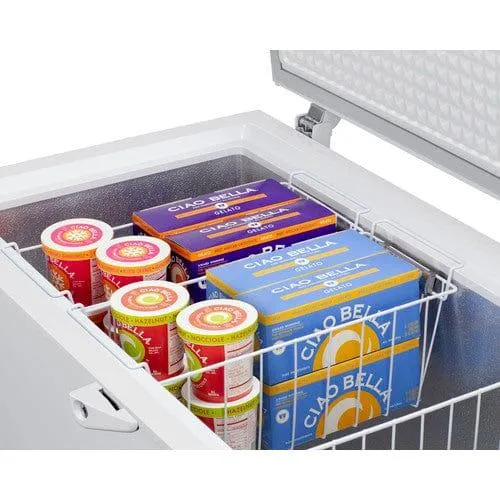

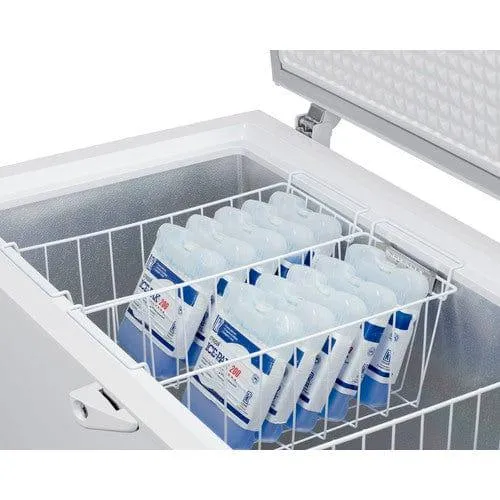

Storage baskets

Two removable wire baskets included

Removable divider

Slide-out wire divider lets you separate storage being kept on the right side of the freezer

Visual temperature alarm

Located in the front control area, the alarm light displays if the interior temperature rises above -11ºC

Removable thermometer

Portable thermometer latches onto a basket for a quick temperature reference

White exterior

Clean white finish fits well in any establishment

Right angle plug

6' long cord features a space-saving right angle plug design to not protrude when plugged into an outlet

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
