Summit 12 Cu.Ft. Chest Freezer FOCUS131

Made for Summit by Elcold in Denmark, with digital controls and improved insulation for optimum storage

Summit Commercial's line of curved top ice cream freezers features a deluxe European design to provide quality storage and an optimum product display.

Made for us by Elcold in Denmark, the FOCUS131 features two tempered glass lids on ball-bearing glides that open smoothly for added efficiency. The angled top offers increased visibility to help maximize impulse sales. This unit includes a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. We include a set of sturdy commercial casters for users to install if they prefer the freezer more mobile. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF.

Inside, the FOCUS131 features hammered aluminum walls designed for lasting durability in busy commercial settings. We include four epoxy coated wire novelty baskets, ideal for storing frozen treats and designed to easily glide back and forth as needed. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting.

The FOCUS131 is UL-S listed to NSF-7 commercial standards. Additional sizes are available.

SPECIFICATIONS

Overview
Height of Cabinet	30.75" (78 cm)
Width	51.38" (131 cm)
Depth	25.88" (66 cm)
Capacity	12.4 cu.ft. (351 L)
Defrost Type	Manual
Door	Glass
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	UL-S
Amps	7.2
Voltage/Frequency	115 V AC/60 Hz
Weight	140.0 lbs. (64 kg)
Shipping Weight	189.0 lbs. (86 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101060224
Freezer
Door Swing	Sliding
Interior Height	20.75" (53 cm)
Interior Width	45.25" (115 cm)
Interior Depth	19.63" (50 cm)
Thermostat Type	Digital
Refrigerant Type	R290a
Refrigerant Amount	3.35 oz.
High Side PSI	345.0
Low Side PSI	140.0
Compressor Step Height	9.75" (25 cm)
Compressor Step Width	7.88" (20 cm)
Compressor Step Depth	19.63" (50 cm)
Temperature Range	-13 to 23ºF

FEATURES

Commercially approved

UL-S listed to NSF-7 Standards for use in commercial establishments

Digital thermostat

Electronic controls for more precise temperature management

Wide temperature range

Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats

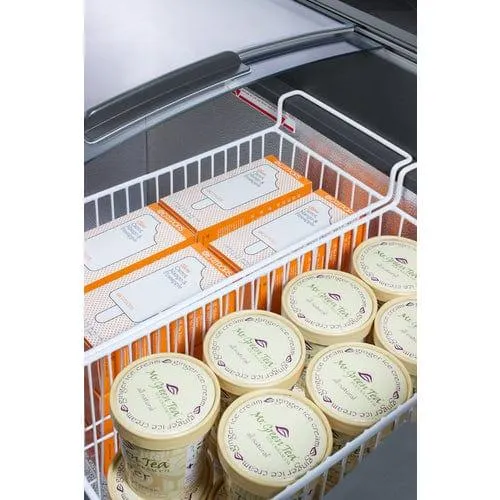

Baskets included

Four epoxy-coated wire baskets included to store novelty items

Angled top

Curved design makes it easier for customers to view interior contents

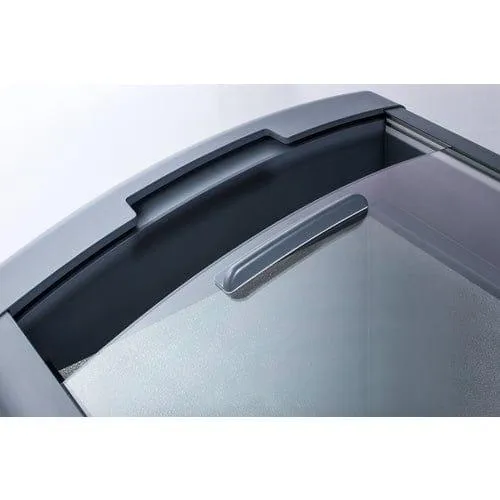

Sliding glass lid

Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency

Strong insulation

3" thick insulation helps to ensure items stay cold

Manual defrost

Static cooling system for improved temperature stability

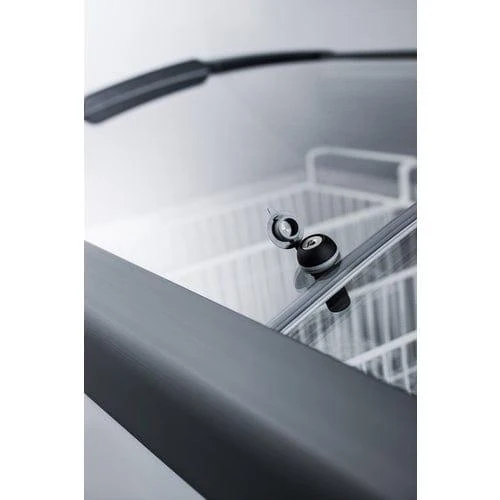

Removable lock

A keyed lock is included for optional use

Hammered aluminum interior

Durable and easy to clean

Casters

Heavy duty wheels for smooth mobility (ship unassembled)

Fan-cooled compressor

Offers improved temperature performance throughout the interior

Defrost drain

Front located for easier defrosting

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
