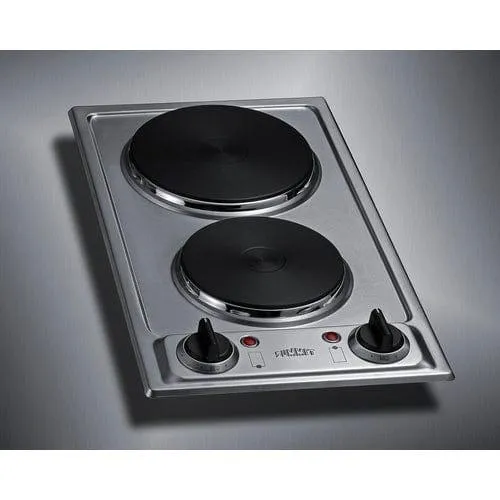

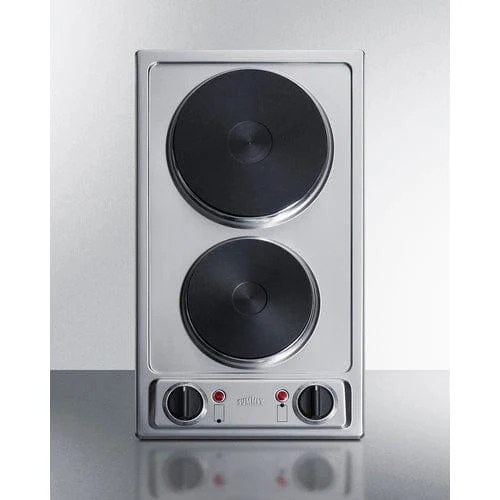

Summit 12" Wide 115V 2-Burner Solid Disk Cooktop CSD2B115

Cast iron elements offer improved durability and more even heating, with a power cord and plug included for easy installation in 115V kitchens

Summit's selection of electric 115V cooktops offers the perfect fit for every application, including our unique line of solid disk elements designed for maximum durability.

Sized at 12" wide, the CSD2B115 is a 115V cooktop with two solid disk elements. The pre-installed power cord includes a right angle 3-prong plug for easy installation in common cutouts sized at 10 1/2" W x 19 1/4" D. Upfront push-to-turn knobs meet ADA guidelines for user accessibility while also ensuring maximum safety.

This cooktop surface comes in brushed stainless steel for an attractive look built to last. The rear 900W burner is sized with an 8" diameter to fit large cookware, while the front 500W 6" element accommodates smaller pots and pans. The solid disk elements are constructed from cast iron, ensuring extreme durability. These elements also retain heat longer than traditional coil or glass top surfaces, making them ideal for keeping the contents in your pots and pans warmer before serving. Even heat distribution helps to improve your cooking results.

With its modern style and durable design, the CSD2B115 is a great choice for hotels, mobile homes, tiny houses, ADUs, temporary housing, and other small kitchens with specific cooking needs. Additional 115V cooktops are available in coil, radiant, and induction style, as well as 230V solid disk cooktops in 2 and 4-burner configurations. Browse the full Summit line to find the perfect choice for your kitchen.

SPECIFICATIONS

Overview
Height of Cabinet	4.13" (10 cm)
Width	11.25" (29 cm)
Depth	20.0" (51 cm)
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	12.5
Voltage/Frequency	115 V AC/60 Hz
Weight	13.0 lbs. (6 kg)
Shipping Weight	17.5 lbs. (8 kg)
Parts & Labor Warranty	1 Year
UPC	761101089447
Electric Cooktop
Heating Type	Radiant
Surface	Stainless Steel
Element Type	Cast Iron
Number of Elements	2
Controls	Dial
Countertop Cutout Height	5.0" (13 cm)
Countertop Cutout Width	10.5" (27 cm)
Countertop Cutout Depth	19.25" (49 cm)
Power Source	230V
Element #1 Size	6.0" (15 cm)
Element #1 Wattage	500.0
Element #2 Size	8.0" (20 cm)
Element #2 Wattage	900.0
Power Cord Included	No

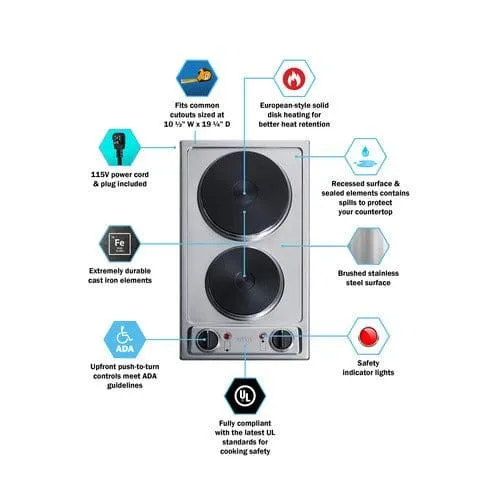

FEATURES

2-Burner electric cooktop

12" wide 115V cooktop with two solid disk heating elements

115V operation

Designed for use with 110-120V / 20 amp connections

Power cord & plug included

Pre-installed 115V cord with 3-pronged plug for easier setup

Solid disk elements

Popular in Europe, solid disk cooktops offer even heat distribution and longer heat retention for a uniquely efficient cooking experience

Durable cast iron design

Solid metal elements hold up to heavy duty use

8" element

Rear 900W burner with wide 8" diameter is ideal for heating larger cooking vessels

6" element

Front element offers 500W of cooking power to accommodate most heating needs

Easier cleanup

Fully sealed cast iron elements offer easier cleanup than traditional coil elements

Stainless steel finish

Surface is made from stainless steel for an attractive and easy to clean look

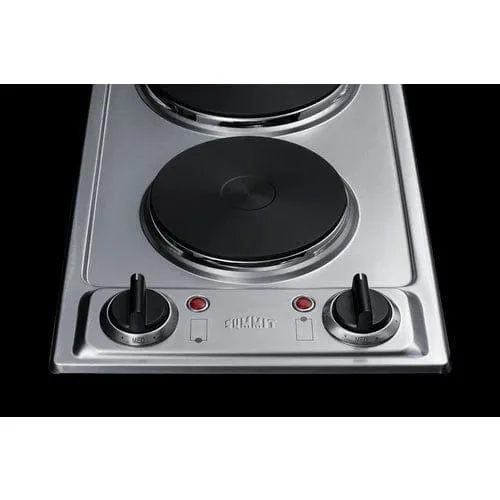

Push-to-turn controls

Knobs require a small amount of force to help prevent accidents

Indicator lights

Operating indicators light up to show which burner is in use

Recessed surface

Slight indent helps to contain spills and protect adjacent countertops

Designed for built-in installation

Fits counter cutout sizes that are 10 1/2" W x 19 1/4" D

Engineered for user safety

Compliant with the latest UL 858 safety standards

ADA compliant design

Upfront controls and easy-to-operate knobs offer easier accessibility
