Summit 12" Wide 230V 2-Burner Radiant Cooktop CR2B23T3B

Intuitive touch controls & a large 7" 1800W burner for easy cooking

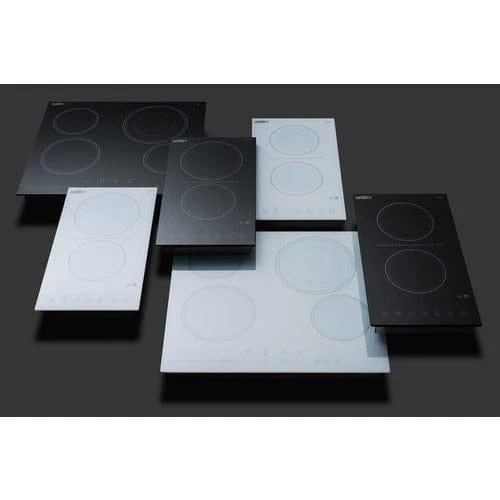

SUMMIT's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces.

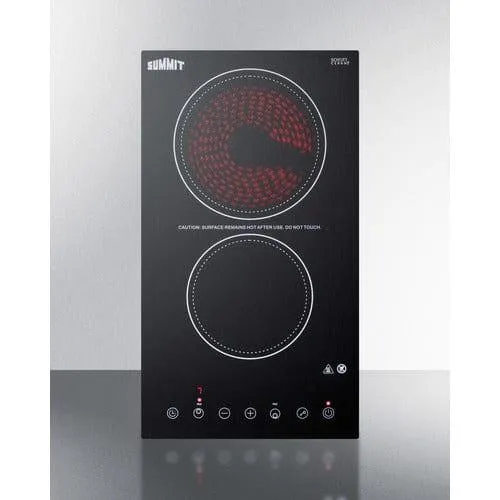

The CR2B23T3B is a 12" wide 230V radiant cooktop designed to fit popular 10 3/4" W x 19 7/8" D counter cutouts. The surface is made from smooth Schott ceramic glass in a jet black finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional.

For true cooking versatility, the CR2B23T3B features a large 7" 1800W burner in the rear and a smaller 5 1/2" 1200W burner in front. The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners to make adjustments. Nine power levels provide true cooking versatility, allowing you more precision in melting or simmering at a low wattage and the convenience of boiling water quickly at a higher setting. The digital display makes it easy to read and manage the settings at the touch of a button. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff, and residual heat indicators for both elements.

With its attractive design, ideal size, and intuitive touch controls, the CR2B23T3B brings a user-friendly cooking performance with reliable safety to small kitchen spaces.

SPECIFICATIONS

Overview
Height of Cabinet	2.0" (5 cm)
Width	11.38" (29 cm)
Depth	20.5" (52 cm)
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	15.0
Voltage/Frequency	230 V AC/60 Hz
Weight	10.0 lbs. (5 kg)
Shipping Weight	13.5 lbs. (6 kg)
Parts & Labor Warranty	1 Year
UPC	761101053295
Electric Cooktop
Heating Type	Radiant
Surface	Glass
Element Type	Glasstop
Number of Elements	2
Controls	Digital
Cooking Timer	Yes
Countertop Cutout Height	5.9" (15 cm)
Countertop Cutout Width	10.75" (27 cm)
Countertop Cutout Depth	19.9" (51 cm)
Power Source	230V
Element #1 Size	7.0" (18 cm)
Element #1 Wattage	1800.0
Element #2 Size	5.5" (14 cm)
Element #2 Wattage	1200.0
Power Cord Included	No
Auto Shutoff Time	2 Hours

FEATURES

Schott glass surface

Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish

Large 1800W burner

Rear 7" burner offers 1800W for faster heating of larger cooking vessels

Standard 1200W burner

Front burner is 5.5" in diameter to meet most cooking needs

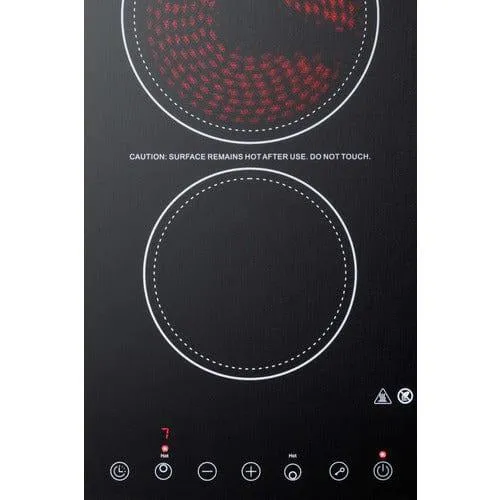

Digital touch controls

Easy operation with a digital control panel and digital display

9 power levels

Select and adjust your heating levels at the touch of a button

Residual heat indicator lights

Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch

Designed for built-in installation

Fits counter cutout sizes that are 10.75" wide by 19.9" deep

ADA compliant design

Upfront controls meet ADA guidelines for easier accessibilty

Timer

Allows you to program either burner to heat at a specified level for up to 99 minutes

Child lock

Safety feature lets you lock the cooktop to prevent unsupervised heating

Automatic shutoff

If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating

Safety cut-off function

If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off

230V operation

Requires professional hardwired installation to 230V power supply
