Summit 14 Cu.Ft. Dipping Cabinet NOVA45PDC

Fully assembled with sneezeguard, tub holder baskets, casters, and digital thermostat for easy ice cream service

Summit Commercial's line offers the industry's best value on fully assembled dipping cabinets, with European ice cream freezers equipped with durable sneezeguards for convenient serving.

Made for us by Elcold in Denmark, the NOVA45PDC is a 53" wide flat top ice cream freezer with a clear polycarbonate sneezeguard installed on top. Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF.

Inside, the NOVA45PDC features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 4 wire tub holder baskets with plastic lids to hold 8 11" round/3 gallon ice cream tubs, with room to store an additional 6 under the baskets. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting.

The NOVA45PDC is UL-S listed to NSF-7 commercial standards and ships fully assembled for easy use. Additional sizes are available.

Note: Gelato pan holders are also available. To substitute the baskets, contact our sales team at 718-893-3900 ext. 507.

SPECIFICATIONS

Overview
Height of Cabinet	45.5" (116 cm)
Width	53.0" (135 cm)
Depth	27.25" (69 cm)
Capacity	14.1 cu.ft. (399 L)
Defrost Type	Manual
Door	Glass
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	UL-S
Amps	7.2
Voltage/Frequency	115 V AC/60 Hz
Weight	160.0 lbs. (73 kg)
Shipping Weight	195.0 lbs. (88 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101060170
Freezer
Door Swing	Sliding
Interior Height	26.0" (66 cm)
Interior Width	46.75" (119 cm)
Interior Depth	21.0" (53 cm)
Thermostat Type	Digital
Refrigerant Type	R290a
Refrigerant Amount	3.03 oz.
High Side PSI	345.0
Low Side PSI	140.0
Wheels	4
Compressor Step Height	9.75" (25 cm)
Compressor Step Width	7.88" (20 cm)
Compressor Step Depth	21.0" (53 cm)
Temperature Range	-13 to 23ºF

AVAILABLE UPGRADES

Exterior
Corner Protectors

FEATURES

Commercially listed

UL-S listed to NSF-7 Standards for use in commercial establishments

Digital thermostat

Electronic controls for more precise temperature management

Wide temperature range

Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats

Sneezeguard

Durable polycarbonate sneezeguard is pre-installed

Ice cream tub holders

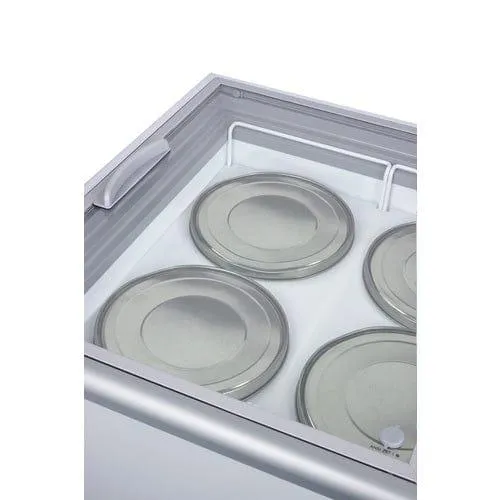

Four epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place

Holds 14 standard 3 gallon tubs

Unit can store 6 tubs on the floor and display an additional 8 using the provided baskets

Strong insulation

3" thick insulation helps to ensure items stay cold

Casters

Heavy duty wheels for smooth mobility (ship unassembled)

Sliding glass lid

Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency

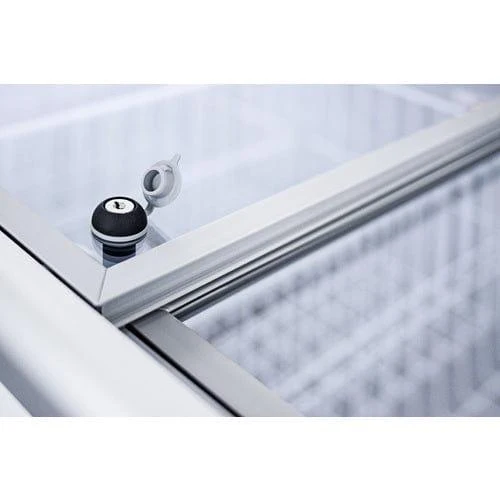

Removable lock

A keyed lock is included for optional use

Manual defrost

Static cooling system for improved temperature stability

Fan-cooled compressor

Offers improved temperature performance throughout the interior

Steel interior

Durable construction in a white finish for easy visibility

Light

Sneezeguard light for added visibility

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
