Summit 18" Built-In All-Freezer, ADA Compliant SCFF1842CSSADA

Uniquely sized at just 18" wide, with frost-free operation for low maintenance use under lower ADA compliant counters

SUMMIT brings true convenience to small kitchen spaces with the SCFF1842CSSADA, an 18" wide fully frost-free all-freezer designed for use under lower ADA compliant counters.

The 32" high SCFF1842CSSADA is front-breathing for built-in use under counters, but also features a fully finished cabinet to allow freestanding use. This model has stainless steel wrapped exterior. The reversible door includes a factory installed lock and professional handle.

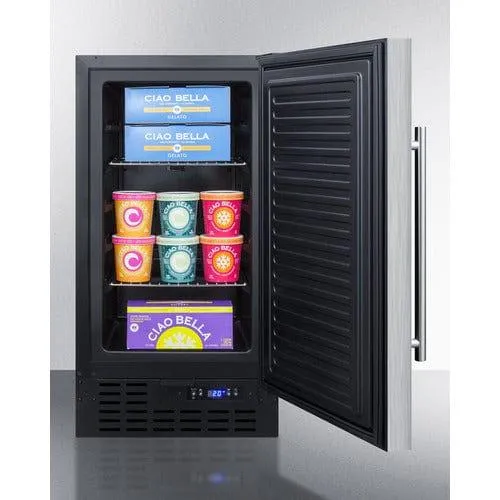

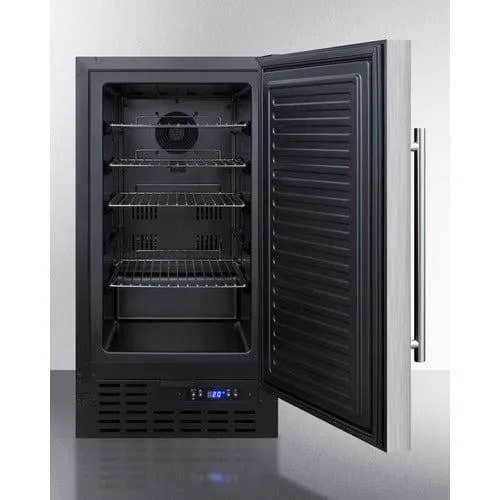

Inside, the SCFF1842CSSADA is fully frost-free to minimize user maintenance, with slide-out chrome shelves that can be adjusted to accommodate a variety of items in the 2.7 cu.ft. interior. This unit includes a digital thermostat for easy and intuitive temperature control.

With a uniquely slim size and user-friendly features, the SCFF1842CSSADA is the ideal freezer for space-challenged spaces. This model meets UL-471 standards.

SPECIFICATIONS

Overview
Height of Cabinet	31.38" (80 cm)
Width	17.75" (45 cm)
Depth	24.5" (62 cm)
Depth with Handle	25.75" (65 cm)
Depth with door at 90°	40.0" (102 cm)
Capacity	2.7 cu.ft. (76 L)
Defrost Type	Frost-Free
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	346.0kWh/year
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	90.0 lbs. (41 kg)
Shipping Weight	137.0 lbs. (62 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101045863
Freezer
Door Swing	RHD
Reversible	Yes
Interior Height	23.5" (60 cm)
Interior Width	12.75" (32 cm)
Interior Depth	16.75" (43 cm)
Shelf Type	Chrome
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.25 oz.
High Side PSI	150.0
Low Side PSI	50.0
Level Legs	4
Compressor Step Height	4.5" (11 cm)
Compressor Step Width	12.75" (32 cm)
Compressor Step Depth	4.5" (11 cm)
Sound Level	35.1 dB

AVAILABLE UPGRADES

Exterior
Latch - Factory-installed door latch requires manual release to open unit LHD - Left hand door swing SSK - Stainless steel kickplate DL2B - Factory installed NIST calibrated digital data logger (DDL)

FEATURES

ADA compliant

32" height to fit under lower ADA compliant counters

Built-in capable

Make the best use of space by installing your appliance under the counter

Stainless steel exterior

Door and cabinet are fully wrapped in durable stainless steel for a professional look built to last

Factory installed lock

Keyed lock for a secure interior

Frost-free operation

Eliminates the need to manually defrost the interior

Digital thermostat

Electronic controls for precise temperature management.

Adjustable chrome shelves

Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup

Reversible door

User-reversible door swing allows for more flexibility in placing the unit

Flush back

Space-saving design that offers easier cleanability

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
