Summit 18 Cu.Ft. Dipping Cabinet (Unassembled) NOVA53GDC

The Summit 18 Cu.Ft. Dipping Cabinet (Unassembled) NOVA53GDC is a professional-grade freezer that is perfect for storing and displaying ice cream, gelato, and other frozen treats. With a spacious 18 cubic feet capacity, this dipping cabinet is designed to provide maximum storage, while keeping the frozen desserts at the perfect temperature. Its simple and sleek design makes it easy to assemble and ensures efficient operation. Keep your frozen treats fresh and ready to serve with the Summit Dipping Cabinet.

Made in Denmark with a durable glass sneezeguard included for fast installation to provide a clear but protected view of ice cream and other frozen treats

Summit Commercial's line offers the industry's best value on European ice cream storage and display, with a full series of chest freezers and matching glass sneezeguards.

Made for us by Elcold in Denmark, the NOVA53GDC is a 61" wide flat top ice cream freezer and compatible glass sneezeguard with a curved design and aluminum work surface. The sneezeguard is packaged unassembled with the freezer for safer shipping and is easy to install for fast use.

The NOVA35 freezer features 17.8 cu.ft. of storage. Two tempered glass lids on ball-bearing glides open and close smoothly to save your staff time and ensure ice cream isn't overexposed to warmer air temperature. We include a removable keyed lock to allow users the option of securing their goods. The white cabinet suits any setting, while the gray lid trim offers an added touch of clean style. Casters are included for optional installation. The digital thermostat is externally located for easy temperature management, with a wide range from -13 to 23ºF to accommodate a variety of desserts. We pre-set the unit to -4ºF.

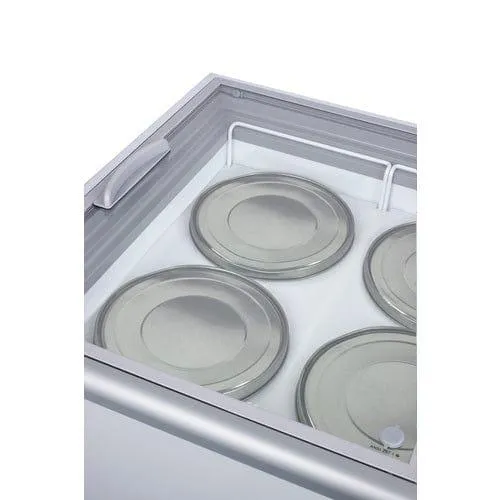

Inside, the NOVA53 freezer features a steel interior in a clean white finish designed for lasting durability in busy commercial settings. We include 5 wire tub holder baskets with plastic lids to hold 10 11" round/3 gallon ice cream tubs, with room to store an additional 8 under the baskets. Extra novelty baskets are also packaged inside for alternate storage. This unit utilizes a manual defrost cooling system with environmentally friendly R290a cooling agent and extra thick insulation to ensure added reliability. A drain is included for easy defrosting.

The NOVA53GDC is UL-S listed to NSF-7 commercial standards. Additional sizes are available.

Note: Gelato pan holders are also available. To substitute the baskets, contact our sales team at 718-893-3900 ext. 507.

SPECIFICATIONS

Overview
Height of Cabinet	49.5" (126 cm)
Width	60.75" (154 cm)
Depth	27.25" (69 cm)
Capacity	17.8 cu.ft. (504 L)
Defrost Type	Manual
Door	Glass
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Sanitation	UL-S
Amps	4.2
Voltage/Frequency	115 V AC/60 Hz
Weight	300.0 lbs. (136 kg)
Shipping Weight	321.0 lbs. (146 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101065038
Freezer
Door Swing	Sliding
Interior Height	26.0" (66 cm)
Interior Width	54.5" (138 cm)
Interior Depth	21.0" (53 cm)
Thermostat Type	Digital
Refrigerant Type	R290a
Refrigerant Amount	3.17 oz.
High Side PSI	345.0
Low Side PSI	140.0
Wheels	4
Compressor Step Height	9.75" (25 cm)
Compressor Step Width	7.88" (20 cm)
Compressor Step Depth	21.0" (53 cm)
Temperature Range	-13 to 23ºF

FEATURES

European dipping cabinet

Ice cream freezer made in Denmark with glass sneezeguard included for the optimum serving and storing conditions

Commercially listed

UL-S listed to NSF-7 Standards for use in commercial establishments

Glass sneezeguard included

3-piece glass sneezeguard made in Denmark with a curved front for optimum visbility

Aluminum work surface

Sneezeguard surface is finished in brushed aluminum to hold up to heavy duty use in busy commercial settings

Digital thermostat

Electronic controls for precise temperature management

Wide temperature range

Digital thermostat can be set between -13 and +23ºF to accommodate a variety of frozen treats

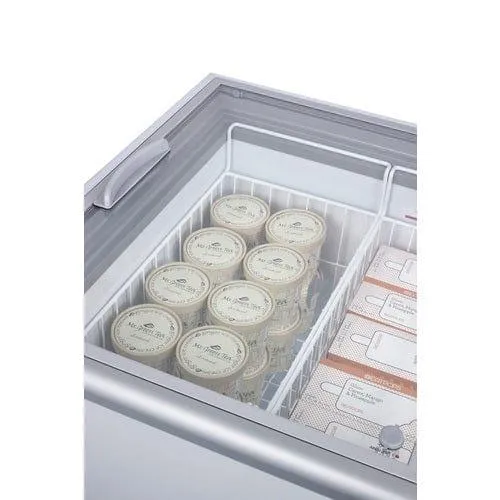

Ice cream tub holders

Five epoxy coated wire baskets with plastic lids included to hold standard ice cream tubs in place

Holds 18 standard 3 gallon tubs

Unit can store 8 tubs on the floor and display an additional 10 using the provided baskets

Novelty baskets included

Four extra epoxy-coated wire baskets packaged inside freezer for standard novelty treats

Sliding glass lid

Two tempered glass lids on ball-bearing glides slide open and closed easily for added efficiency

Strong insulation

3" thick insulation helps to ensure items stay cold

Casters

Heavy duty wheels for smooth mobility (ship unassembled)

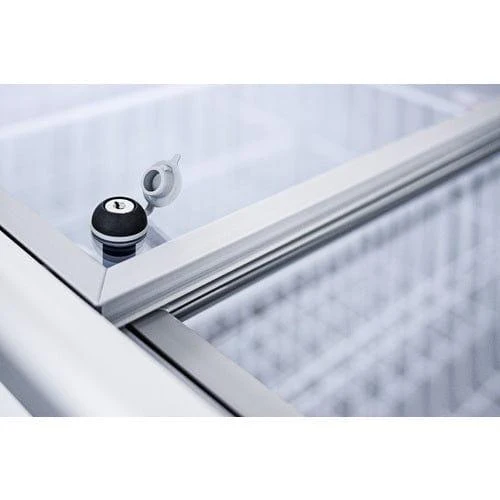

Removable lock

A keyed lock is included for optional use

Manual defrost

Static cooling system for improved temperature stability

Defrost drain

Front located for easier defrosting

Fan-cooled compressor

Offers improved temperature performance throughout the interior

Steel interior

Durable construction in a white finish for easy visibility

Easy assembly

Sneezeguard ships unassembled for safer transportation and can be installed in just a few easy steps

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
