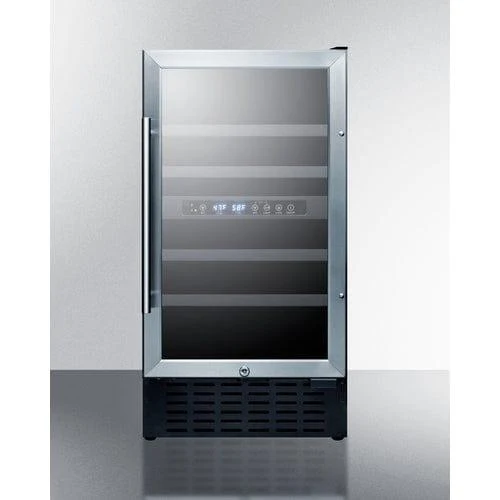

Summit 18" Dual Zone Wine Cellar - ADA Compliant (SWC182ZADA)

Upgrade your kitchen with the Summit 18" Wide Built-In Wine Cellar. With ADA compliance, this cellar provides convenience and accessibility. Keep your favorite wines at optimal temperatures with its wide built-in design. Trust in the expertise of this industry-leading product.

Two temperature zones for versatile storage in a uniquely slim 18" width

SUMMIT's collection of built-in wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space.

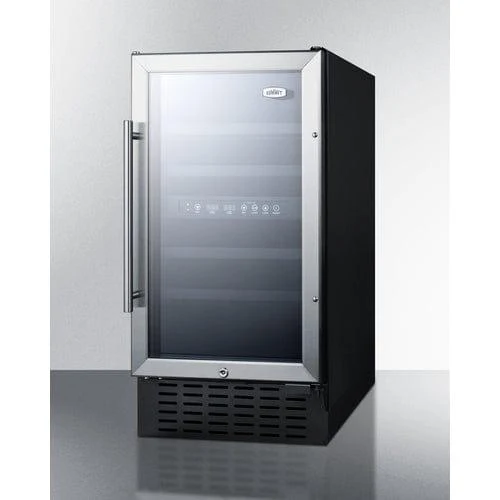

Sized just under 18" wide, the SWC182Z is front-breathing for built-in installation under counters, while the fully finished black cabinet also allows freestanding use. The reversible glass door features an elegant stainless steel trim and professional handle. A factory installed lock offers added security, with two keys included.

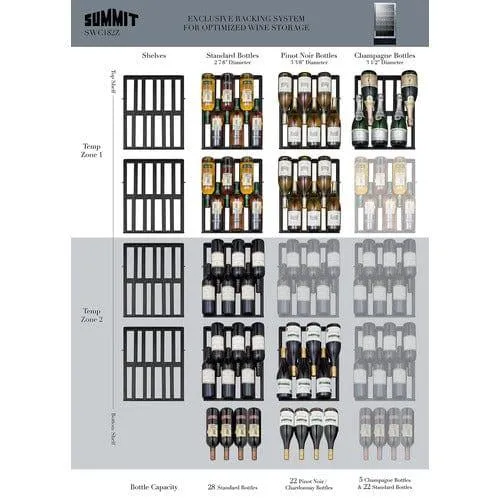

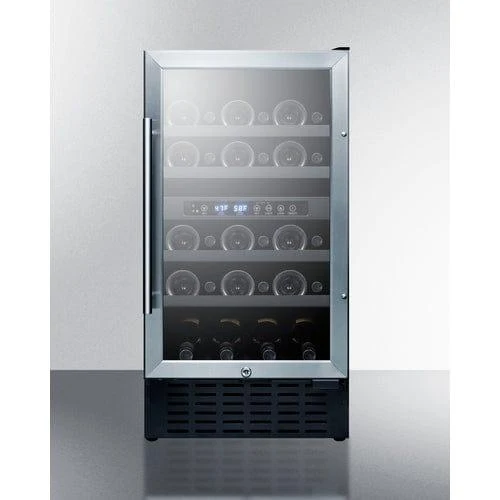

Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux style bottles or 22 wider Burgundy style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management.

With its slim fit and convenient design, the SWC182Z makes an attractive addition to any room. For this unit in a 32" ADA compliant height, see the SWC182ZADA.

SPECIFICATIONS

Overview
Height of Cabinet	34.25" (87 cm)
Width	17.75" (45 cm)
Depth	23.5" (60 cm)
Depth with door at 90°	39.75" (101 cm)
Capacity	3.3 cu.ft. (93 L)
Bottles	28 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	95.0 lbs. (43 kg)
Shipping Weight	113.0 lbs. (51 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101055084
Wine Cellar
Number of Zones	2
Door Swing	RHD
Reversible	Yes
Shelf Type	Wood
Shelf Qty	4
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.23 oz.
High Side PSI	150.0
Low Side PSI	50.0
Interior Height 1	10.63" (27 cm)
Interior Width 1	14.25" (36 cm)
Interior Depth 1	18.0" (46 cm)
Compressor Step Height	5.25" (13 cm)
Compressor Step Width	14.25" (36 cm)
Compressor Step Depth	5.0" (13 cm)
Level Legs	4
Temperature Range	41º to 64ºF
Interior Height 2	12.25" (31 cm)
Interior Width 2	14.25" (36 cm)
Interior Depth 2	18.0" (46 cm)

AVAILABLE UPGRADES

Exterior
Latch - Factory-installed door latch requires manual release to open unit LHD - Left hand door swing SSK - Stainless steel kickplate
Door
T1 Door Tint T1S Door Tint T2 Door Tint T3 Door Tint T4 Door Tint

FEATURES

Commercially Approved

ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

HTS CODE: 8418.50.0080

Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door

Built-in capable

Make the best use of space by installing your appliance under the counter

28 bottle capacity

Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles

Glass door with stainless steel trim

Provides a full display of stored contents with a heat-safe double tempered design

Factory installed lock

Keyed lock for a secure interior, with 2 keys included

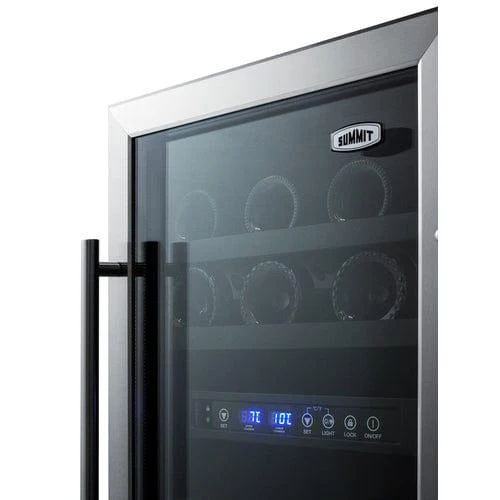

Digital thermostat

Electronic controls for precise temperature management.

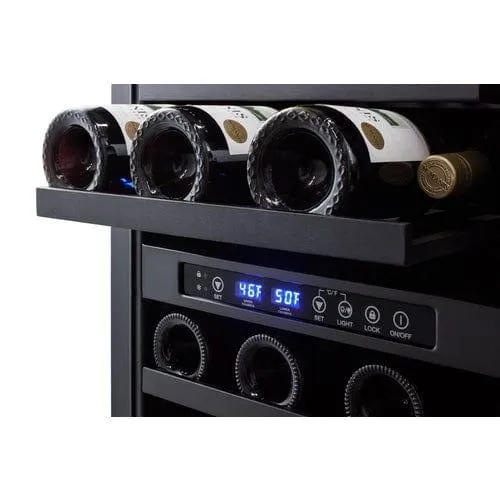

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

LED lighting

Gentle illumination for each temperature zone for an elegant presentation

Wooden shelves

4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish

Automatic defrost

Reduced maintenance with the convenience of auto defrost

Reversible door

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Professional handle

Stainless steel handle completes the look

Integrated door hinge

Hinge is flush with cabinet, adding no height to the unit

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

ec

Dual zone storage

Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a warmer 50 to 64ºF range in the lower chamber
