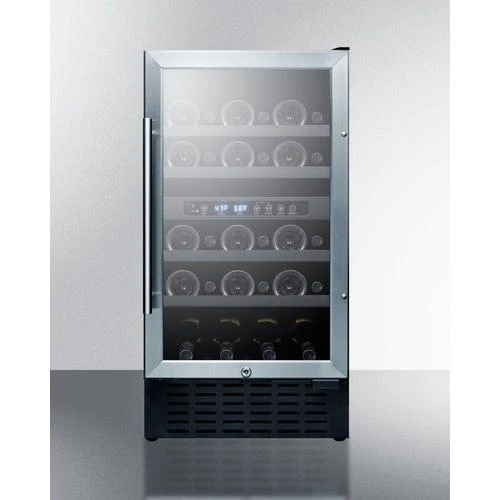

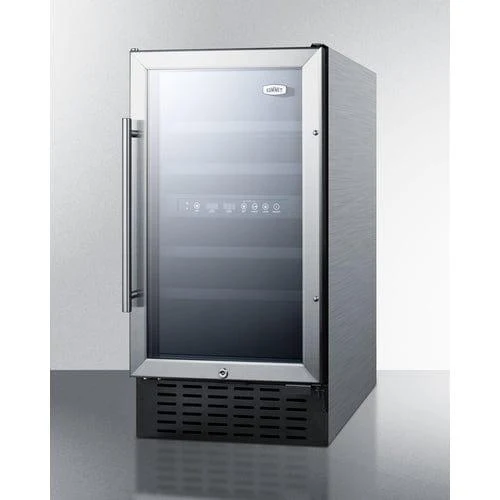

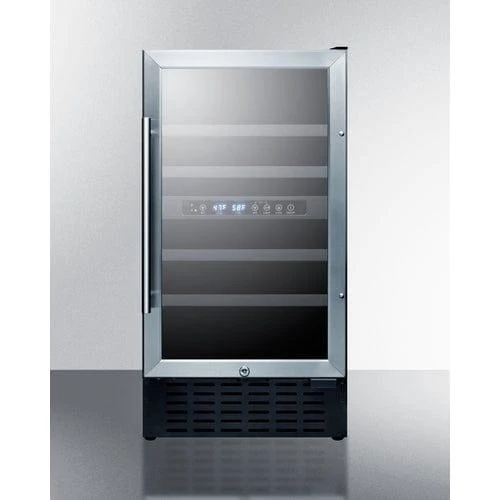

Summit 18" Dual Zone Wine Cellar - Full SS Wrap (SWC182ZCSSADA)

Two temperature zones for versatile storage in a uniquely slim 18" width

SUMMIT's collection of built-in wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space.

Sized just under 18" wide and 32" high, the SWC182ZCSSADA is front-breathing for built-in installation under lower ADA compliant counters. The cabinet is wrapped in 304 grade stainless steel for a professional look built to last. The reversible glass door features an elegant stainless steel trim and professional handle. A factory installed lock offers added security, with two keys included.

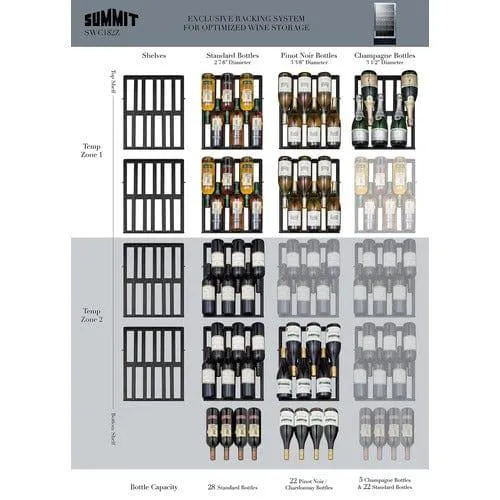

Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux style bottles or 22 wider Burgundy style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management.

With its slim fit and convenient design, the SWC182ZCSSADA makes an attractive addition to any room.

SPECIFICATIONS

Overview
Height of Cabinet	31.63" (80 cm)
Width	17.94" (46 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.25" (64 cm)
Depth with door at 90°	39.75" (101 cm)
Capacity	3.3 cu.ft. (93 L)
Bottles	28 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	95.0 lbs. (43 kg)
Shipping Weight	131.0 lbs. (59 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101058436
Wine Cellar
Number of Zones	2
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Wood
Shelf Qty	4
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.23 oz.
High Side PSI	150.0
Low Side PSI	50.0
Interior Height 1	10.63" (27 cm)
Interior Width 1	14.25" (36 cm)
Interior Depth 1	18.0" (46 cm)
Compressor Step Height	5.25" (13 cm)
Compressor Step Width	14.25" (36 cm)
Compressor Step Depth	5.0" (13 cm)
Level Legs	4
Temperature Range	41º to 64ºF
Interior Height 2	12.25" (31 cm)
Interior Width 2	14.25" (36 cm)
Interior Depth 2	18.0" (46 cm)

AVAILABLE UPGRADES

Exterior
SSK - Stainless steel kickplate LHD - Left hand door swing Latch - Factory-installed door latch requires manual release to open unit
Door
T4 Door Tint T3 Door Tint T2 Door Tint T1S Door Tint T1 Door Tint

FEATURES

Dual zone storage

Keep white wine in the upper compartment stored between 41 and 50ºF and red wine at a warmer 50 to 64ºF range in the lower chamber

ADA compliant

32" height is designed to fit under lower ADA compliant counters

Built-in capable

Make the best use of space by installing your appliance under the counter

Stainless steel wrapped cabinet

304 grade finish on the exterior cabinet for a professional look with lasting durability

28 bottle capacity

Versatile interior can store up to 28 standard 750ml Bordeaux style or 22 wider Burgundy style bottles

Glass door with stainless steel trim

Provides a full display of stored contents with a heat-safe double tempered design

Factory installed lock

Keyed lock for a secure interior, with 2 keys included

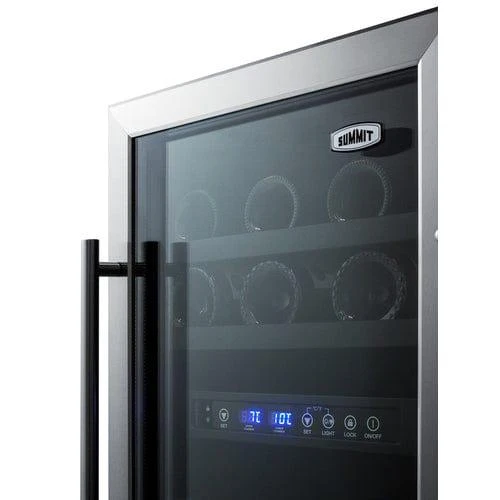

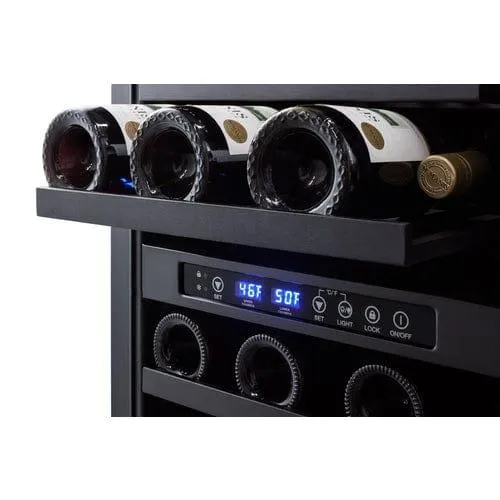

Digital thermostat

Electronic controls for precise temperature management.

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

LED lighting

Gentle illumination for each temperature zone for an elegant presentation

Automatic defrost

Reduced maintenance with the convenience of auto defrost

Wooden shelves

4 wooden shelves in a painted black finish offer the perfect storage for wine bottles in a classic wooden finish

Reversible door

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Professional handle

Stainless steel handle completes the look

Flush back

Space saving design

Integrated door hinge

Hinge is flush with cabinet, adding no additional height to the unit

Freestanding capable

Fully finished cabinet also allows freestanding use

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
