Summit 18" Single Zone Wine Cellar - ADA Compliant (SWC1840BADA)

Perfectly designed for built-in installation under lower ADA compliant counters

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

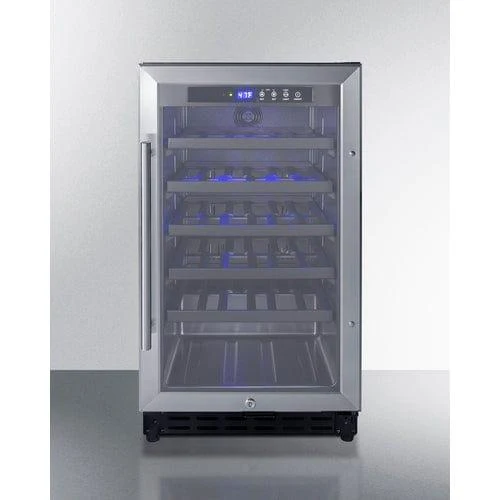

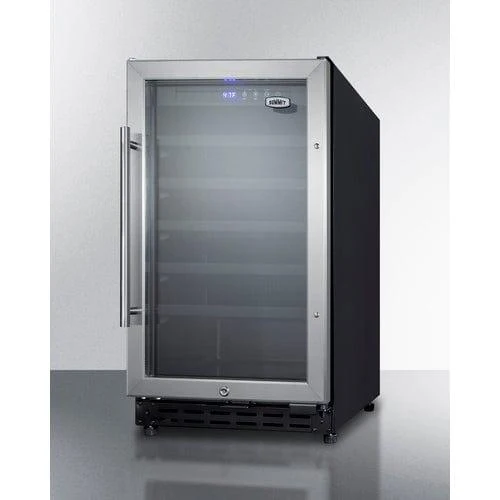

The SWC1840BADA is a 32" high wine cellar designed for built-in or freestanding use under lower ADA compliant counters, with a unique 18" width. The reversible glass door features an elegant stainless steel trim and professional handle, with a factory installed lock for added security.

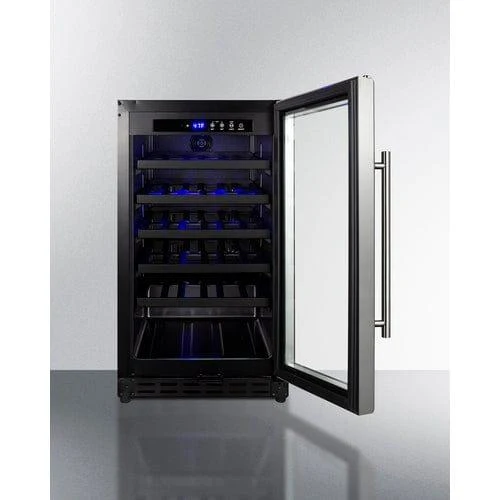

Inside, this auto defrost wine cellar can store up to 34 Bordeaux or Burgundy style bottles, with a slotted floor that can also accommodate champagne if needed. The slide-out wooden shelves come in a jet black finish for a modern look. Recessed LED lighting offers an elegant view of the items, while the digital thermostat ensures easy temperature management.

With its slim fit and convenient design, the SWC1840BADA makes an attractive addition to any room.

SPECIFICATIONS

Overview
Height of Cabinet	31.38" (80 cm)
Width	17.75" (45 cm)
Depth	23.5" (60 cm)
Depth with door at 90°	39.75" (101 cm)
Capacity	3.3 cu.ft. (93 L)
Bottles	34 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	95.0 lbs. (43 kg)
Shipping Weight	120.0 lbs. (54 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101056197
Wine Cellar
Number of Zones	1
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Wood
Shelf Qty	5
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	10.6 oz.
High Side PSI	150.0
Low Side PSI	50.0
Level Legs	4
Temperature Range	41º to 68ºF
Sound Level	33.8 dB

AVAILABLE UPGRADES

Exterior
SSK - Stainless steel kickplate LHD - Left hand door swing Latch - Factory-installed door latch requires manual release to open unit
Door
T4 Door Tint T3 Door Tint T2 Door Tint T1S Door Tint T1 Door Tint

FEATURES

Commercially approved

ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

ADA compliant

32" height is designed to fit under lower ADA compliant counters

Built-in capable

Make the best use of space by installing your appliance under the counter

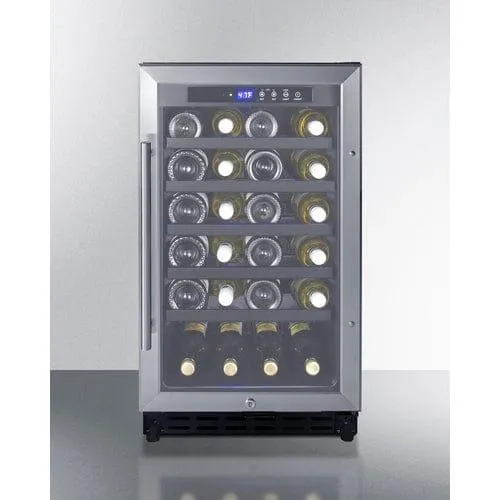

34 bottle capacity

Versatile interior can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles

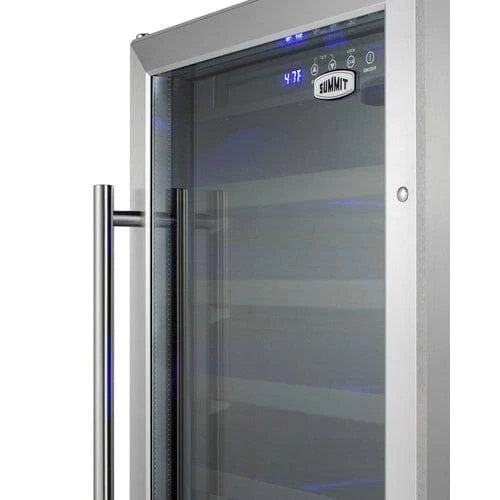

Glass door with stainless steel trim

Provides a full display of stored contents with a heat-safe double tempered design

Factory installed lock

Keyed security on the door

Digital thermostat

Electronic controls for precise temperature management.

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

LED lighting

Gentle illumination with an on/off switch

Automatic defrost

Reduced maintenance with the convenience of auto defrost

Wooden shelves

5 shelves offer the perfect storage for wine bottles in a classic wooden finish

Reversible door

Keep your options flexible with a reversible door that is easy to switch when your arrangement changes

Professional handle

Stainless steel look for added elegance

Flush back

Space saving design

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
