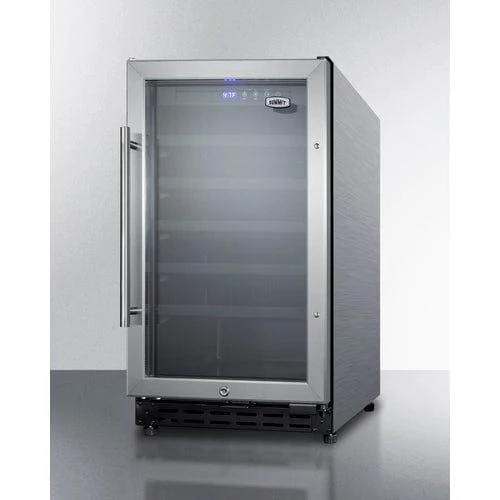

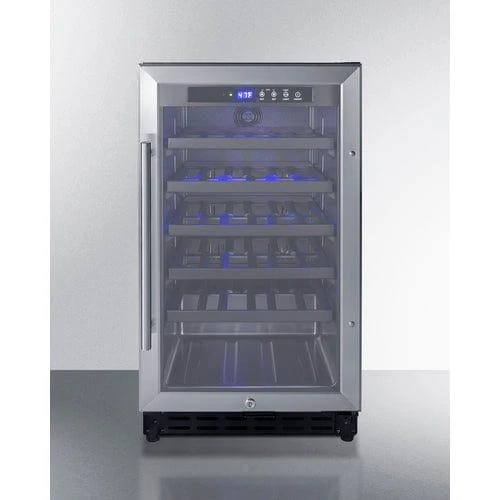

Summit 18" Single Zone Wine Cellar - Full SS Wrap (SWC1840BCSSADA)

Perfectly designed for built-in installation under lower ADA compliant counters

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

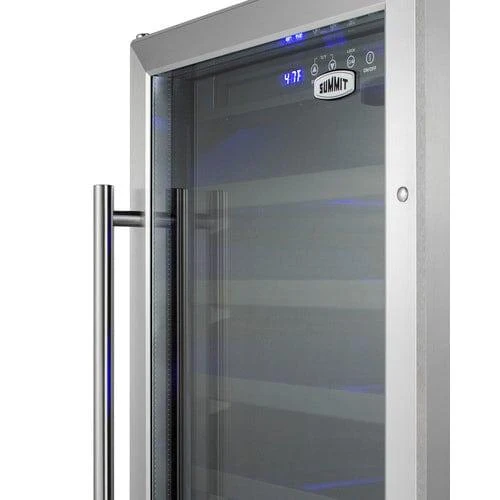

The SWC1840BCSSADA is a 32" high wine cellar designed for built-in or freestanding use under lower ADA compliant counters, with a unique 18" width. The user-reversible glass door features attractive stainless steel trim and a pro style handle, with a factory installed lock for added security. This unit comes with a wrapped stainless steel cabinet.

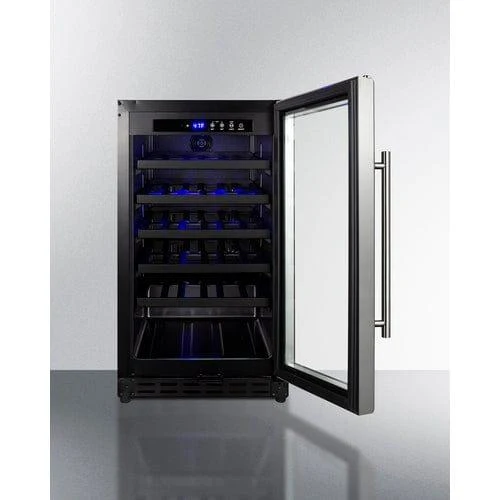

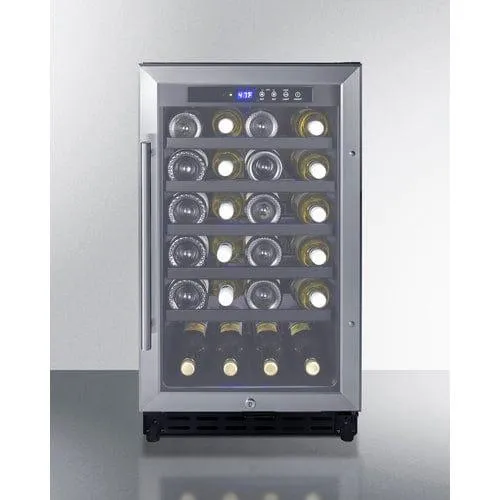

Inside, this auto defrost wine cellar can store up to 34 Bordeaux or Burgundy style bottles, with a slotted floor that can also accommodate champagne if needed. The slide-out wooden shelves come in a jet black finish for a modern look. Recessed LED lighting offers an elegant view of the items, while the digital thermostat ensures easy temperature management.

With its slim fit and convenient design, the SWC1840BCSSADA makes an attractive addition to any room. For a matching beverage center, see the SCR1841BCSSADA.

SPECIFICATIONS

Overview
Height of Cabinet	31.38" (80 cm)
Width	17.94" (46 cm)
Depth	23.5" (60 cm)
Capacity	3.3 cu.ft. (93 L)
Bottles	34 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	CSA
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	103.0 lbs. (47 kg)
Shipping Weight	138.0 lbs. (63 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101056210
Wine Cellar
Number of Zones	1
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Wood
Shelf Qty	5
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.06 oz.
High Side PSI	150.0
Low Side PSI	50.0
Level Legs	4
Temperature Range	41º to 68ºF
Sound Level	33.8 dB

AVAILABLE UPGRADES

Exterior
SSK - Stainless steel kickplate LHD - Left hand door swing Latch - Factory-installed door latch requires manual release to open unit
Door
T4 Door Tint T3 Door Tint T2 Door Tint T1S Door Tint T1 Door Tint

FEATURES

ADA compliant

32" height allows installation under lower ADA compliant counters

Built-in capable

Make the best use of space by installing your appliance under the counter

Commercially approved

ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

34 bottle capacity

Versatile interior can store up to 34 standard 750ml Bordeaux style or wider Burgundy style bottles

Stainless steel wrapped cabinet

Stainless steel cabinet offers lasting durability and professional style

Professional towel bar handle

Curved stainless steel handle provides an easy grip with professional style

Factory installed lock

Keyed lock for a secure interior

Automatic defrost

Reduced maintenance with auto defrost system

Digital thermostat

Electronic controls for precise temperature management.

LED lighting

Gentle illumination with an on/off switch

Wooden shelves

5 shelves offer the perfect storage for wine bottles in a classic wooden finish

Reversible door

User-reversible door swing for added flexibility

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
