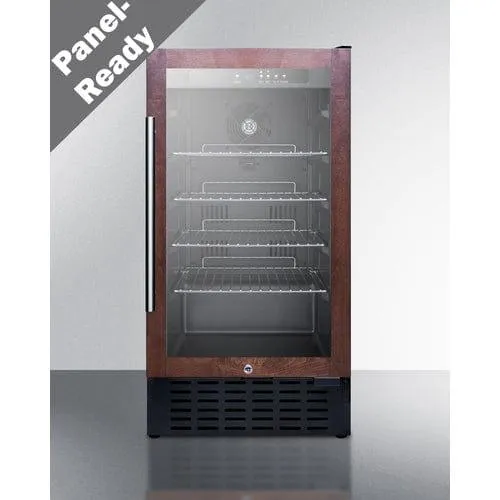

Summit 18" Wide Built-In Beverage Center (Panel Not Included) SCR1841BPNR

Front-breathing design allows built-in installation under the counter in 18" wide spaces, with a panel-ready door trim for easy customization

SUMMIT's selection of built-in undercounter beverage coolers combines user-friendly convenience with elegant style for an ideal fit in any setting.

The SCR1841BPNR is an 18" wide all-refrigerator designed for use in residential settings. The front-breathing system allows built-in installation under counters, while the fully finished black cabinet also allows freestanding use. The glass door features a panel-ready stainless steel door trim that lets you customize the look to best match adjacent cabinetry (panel dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness). NOTE: this unit ships with a right hand door swing. For a left hand version, add option LHD. Users provide their own handle.

Items can be stored on four adjustable chromes shelves in the auto defrost interior, with attractive LED lighting providing an elegant display. The digital thermostat offers intuitive temperature management. The SCR1841BPNR is also available in a 32" height for use in ADA compliant settings (see the SCR1841BPNRADA) and can be paired with our matching wine cellar, model SWC1840BPNR.

Note: Panel is not included. The images provided are meant only to be suggestive of what the product with a wood panel installed could look like. Users must supply their own wood panel.

SPECIFICATIONS

Overview
Height of Cabinet	34.25" (87 cm)
Width	17.75" (45 cm)
Depth	23.5" (60 cm)
Depth with door at 90°	39.75" (101 cm)
Capacity	2.7 cu.ft. (76 L)
Defrost Type	Automatic
Door	Glass/Panel-Ready Frame
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	284.0kWh/year
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	95.0 lbs. (43 kg)
Shipping Weight	117.0 lbs. (53 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101073651
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Chrome
Shelf Qty	4
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.06oz.
High Side PSI	150.0
Low Side PSI	50.0
Level Legs Qty	2
Interior Light	Yes
Sound Level	34.2 dB
Dimensions
Interior Height	21.5" (55 cm)
Interior Width	12.75" (32 cm)
Interior Depth	16.75" (43 cm)
Compressor Step Height	4.75" (12 cm)
Compressor Step Width	12.75" (32 cm)
Compressor Step Depth	4.5" (11 cm)

AVAILABLE UPGRADES

Exterior
SSK - Stainless steel kickplate LHD - Left hand door swing
Door
T1 Door Tint T1S Door Tint T2 Door Tint T3 Door Tint T4 Door Tint

FEATURES

Built-in capable

Make the best use of space by installing your appliance under the counter

Commercially approved

ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

Fully finished black cabinet

Allows the unit to be used freestanding

Panel-ready door trim

Door frame can be customized with a custom overlay panel (panel frame dimensions: 27 5/8" H x 17 3/8" W at 3/4" minimum thickness)

Glass door

Double pane tempered glass to provide an elegant display with added protection

Factory installed lock

Keyed security on the door

Digital thermostat

Electronic controls for precise temperature management.

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

LED lighting

Gentle illumination with an on/off switch

Automatic defrost

Reduced maintenance with the convenience of auto defrost

Adjustable chrome shelves

Rearrange interior space to accommodate all sizes or remove shelves for simple cleanup

Flush back

Space saving design

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
