Summit 18" Wide Built-In Commercial Beverage Center CL181WBV

Seamless stainless steel door trim brings true elegance under the counter

Summit's assortment of undercounter beverage centers includes uniquely sized 18" wide choices designed for reliable storage in commercial environments.

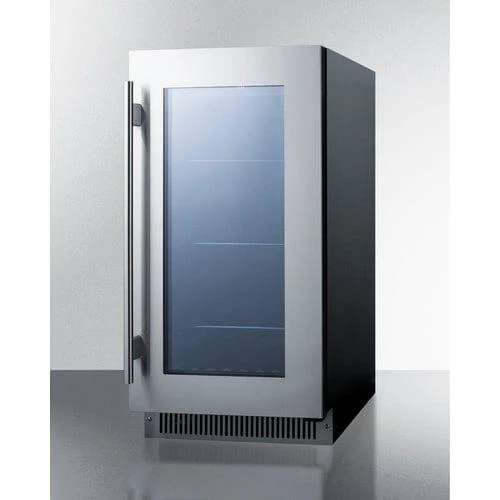

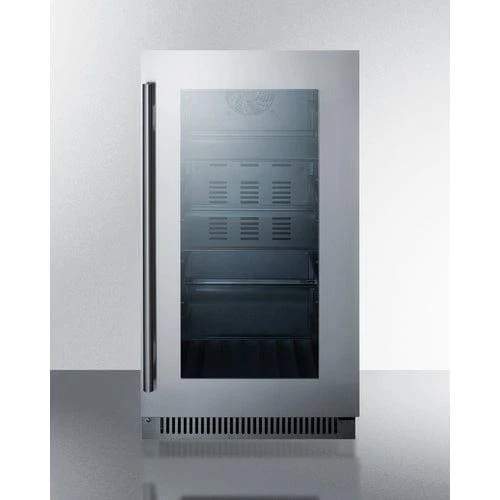

The CL181WBV is an 18" wide beverage center that is ETL-S listed to NSF-7 commercial standards. The front breathing design allows built-in installation under counters, while the fully finished cabinet in a jet black finish also enables freestanding use. The seamless stainless steel door trim blends right into the softly tinted double pane tempered glass, with a professional stainless steel handle and designer kickplate completing the stunning look. Inside, white LED lighting located on the side walls complements the black interior for an attractive presentation that highlights stored products.

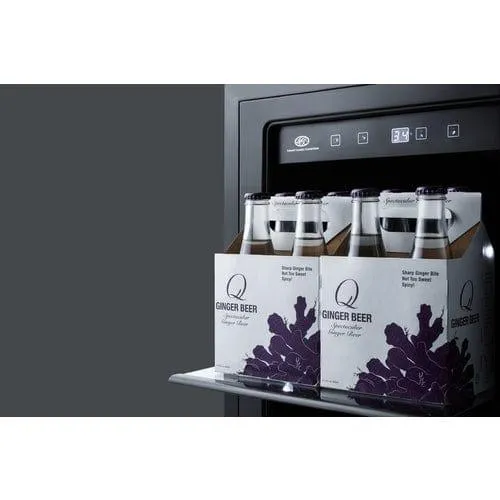

The CL181WBV includes three adjustable glass shelves for spill-proof storage. The floor is specially slotted to hold wine bottles in place. The interior control panel includes a digital thermostat for easy and intuitive operation, with a readout viewable in Celsius or Fahrenheit. Additional features include a user-reversible door, right angle plug for added space savings, sealed back design for easier cleanup, and a Sabbath mode setting. A built-in alarm audibly warns if the door is left ajar or if the unit exceeds recommended temperature, an ideal feature for busy commercial settings.

Uniquely styled and fully featured, the CL181WBV is an elegant solution to bringing reliable beverage storage to restaurants, bars, waiting areas, hotel lobbies, and other spaces.

SPECIFICATIONS

Overview
Height of Cabinet	34.0" (86 cm)
Width	17.5" (44 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.38" (64 cm)
Depth with door at 90°	39.63" (101 cm)
Capacity	2.9 cu.ft. (82 L)
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	255.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	88.0 lbs. (40 kg)
Shipping Weight	108.5 lbs. (49 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101053462
Refrigerator Features
Sabbath Mode	Yes
Door Swing	Reversible
Reversible	Yes
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.85oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Light	Yes
Temperature Range	36 to 43ºF
Dimensions
Interior Height	23.0" (58 cm)
Interior Width	12.25" (31 cm)
Interior Depth	17.5" (44 cm)
Compressor Step Height	3.25" (8 cm)
Compressor Step Width	12.25" (31 cm)
Compressor Step Depth	5.25" (13 cm)

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing Latch - Factory-installed door latch requires manual release to open unit
Door
T1 Door Tint T2 Door Tint T3 Door Tint T4 Door Tint T1S Door Tint

FEATURES

18" wide commercial beverage center

Undercounter glass door commercial refrigerator in a unique 18" width

Commercially approved

ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Double pane tempered glass door

Heat-safe glass ensures your items are stored safely

Seamless stainless steel trim

One-piece stainless steel door frame offers a luxurious look with no exposed seams or holes

Popular commercial applications

Perfectly designed to store and display beverages in a variety of commercial settings, including energy drinks and water bottles in gyms, refreshments in lobbies, sparkling water and juices in restaurants, and much more

Digital thermostat

Electronic controls for precise temperature management

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

Adjustable glass shelves

Spill-proof glass shelves make it easy to store and display bottles and cans

Bottle slots

Floor is specially slotted to store wine and other bottles safely in place

White LED lighting

Unique white lighting located inside the walls offers elegant illumination for the jet black interior

Professional handle

Vertically mounted handle in brushed stainless steel

Reversible door

User-reversible door swing allows for more flexibility in placing the unit

Stainless steel kickplate

Completes the professional look down to the toe kick

Sabbath Mode

Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature alarm

Audibly alerts if the interior temperature is too warm

Open door alarm

Audible alarm will sound if the door is left ajar for over 60 seconds

Fan-forced cooling

Internal fan ensures the interior is evenly cooled from top to bottom

Automatic defrost

Reduced maintenance and steady temperature performance

Sealed back

Space saving design with easier cleanability

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully finished black cabinet

Allows the unit to be used freestanding

Integrated hinge

Top hinge adds no additional height or width when the door is opened

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
