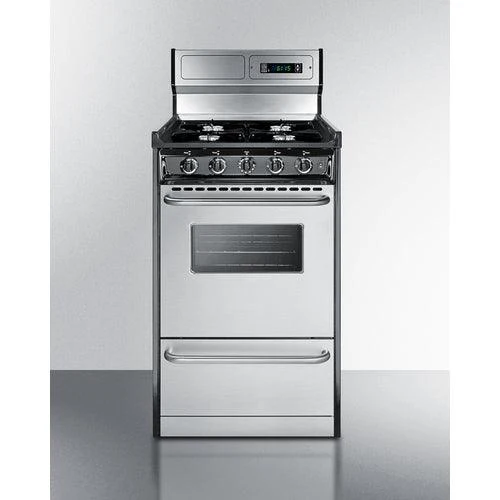

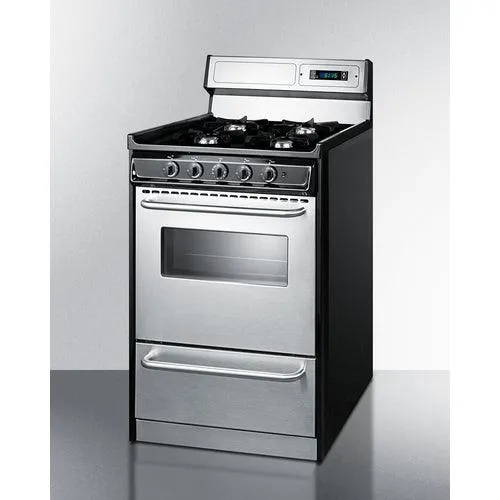

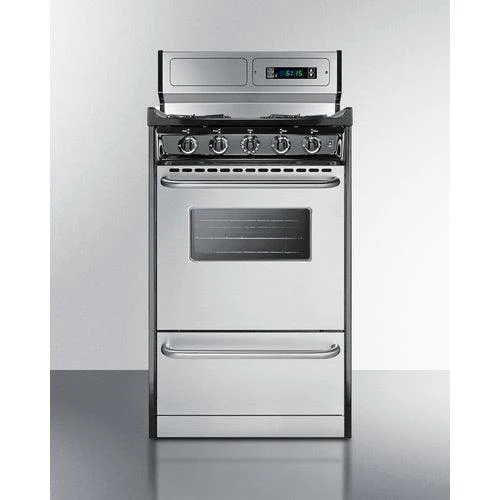

Summit 20" Wide Gas Range, Open Burners TNM1307BKW

Made in the USA

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

The TNM1307BKW is 20" wide apartment-sized gas range with a generous 2.46 cu.ft porcelain oven interior that can fit large trays. Two adjustable oven racks are included. An oven window and on/off interior light allow you to easily keep watch over your cooking. The broiler is located below the oven in a drop-down compartment. Four open 9000 BTU gas burners accommodate most of your stovetop heating needs, with upfront push-to-turn knobs that let you adjust your cooking without reaching over hot burners. This unit utilizes an electronic ignition system for added safety.

Stainless steel doors feature professional style towel bar handles, bringing classic elegance to smaller kitchen spaces. The deluxe 8" high backguard includes a digital clock and timer for added convenience when cooking. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts.

With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 24", 30", and 36" wide fits. This unit ships ready for natural gas connections. To use with propane, add the Kit LP.

SPECIFICATIONS

Overview
Height of Cabinet	44.0" (112 cm)
Width	20.0" (51 cm)
Depth	24.0" (61 cm)
Door	Stainless Steel
Cabinet	Black
US Electrical Safety	CSA
Voltage/Frequency	115 V AC/60 Hz
Weight	140.0 lbs. (64 kg)
Parts & Labor Warranty	1 Year
UPC	761101079172
Gas Range
Ignition	Spark
LP Convertible	With Kit LP Accessory
Oven Capacity	2.46 cu.ft
Cooktop Surface	Porcelain
Burner Type	Open
Number of Burners	4
Burner #1 BTU	9000.0
Burner #2 BTU	9000.0
Burner #3 BTU	9000.0
Burner #4 BTU	9000.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Cooking Timer	Yes
Backguard	Yes
Backguard Display	Yes
Cleaning Type	Manual
Oven Rack Qty	2
Oven Window	Yes
Oven Interior Height	14.0" (36 cm)
Oven Interior Width	16.0" (41 cm)
Oven Interior Depth	19.0" (48 cm)
Broiler Location	Below Oven

AVAILABLE UPGRADES

Interior
Canadian Range Conversion
Exterior
LP Conversion

FEATURES

Made in the USA

Designed and constructed domestically

Slim 20 inch width

Apartment-sized width offers all the functionality you need in a smaller footprint

24 inch depth

Shallower fit is ideal for L-shaped and galley kitchens

Stainless steel finish

Doors and backguard are constructed from brushed stainless steel for modern luxury built to last

Professional towel bar handles

Curved handles in brushed stainless steel offer an easier grip in attractive style

Four open burners

9000 BTU burners with built-in enamel grates to meet most cooking needs

Designed for natural gas

Set for use with natural gas connection. To convert for propane use, add Kit LP

Electronic ignition

Spark ignition system with a pre-installed 115V 3-prong cord

Oven window and interior lighting

Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door

Deluxe backguard

8" high backguard helps to protect your walls from spills and splashes

Digital clock and timer

Backguard includes clock and timer for added convenience

Upfront oven/burner controls

Push-to-turn knobs offer easier, safer access, preventing users from reaching over hot burners to adjust

Recessed oven door

Smart design limits the depth and protects adjacent cabinets

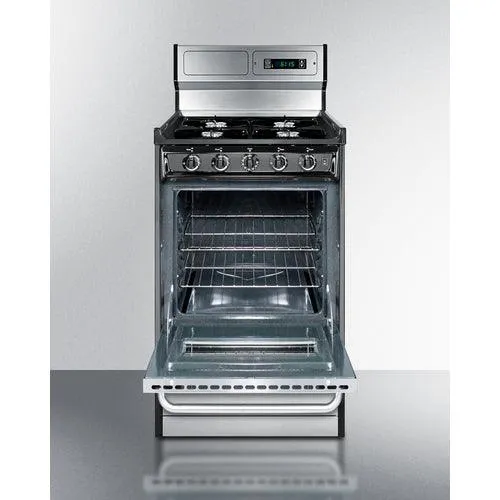

Adjustable oven racks

Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Broiler compartment

Lower drop-down compartment for separate broiling with even heat distribution

Porcelain construction

Oven interior features high quality porcelain construction for long-lasting durability, while the cooking surface is made from scratch resistant porcelain enamel

Removable oven door and range top

Allows for easier cleaning as needed

Recessed surface

Smart design helps to contain spills

Anti-tip bracket

Included for user installation to help prevent tipping

Broiler pan included

Two-piece porcelain broiler tray with grease well
