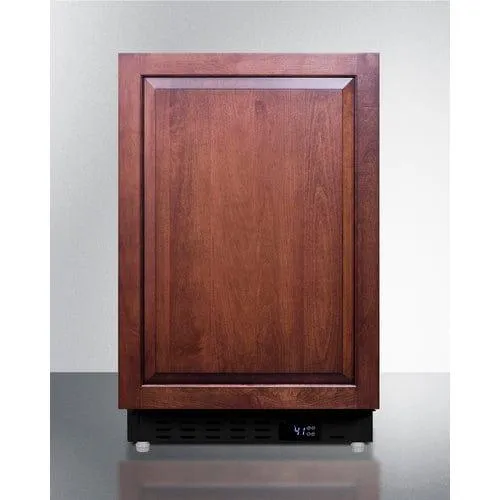

Summit 21" Panel-Ready Refrigerator (ALR47BIF)

32" height and front-breathing system for built-in installation under ADA compliant counters

Summit Appliance offers a quality selection of 21" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

The ALR47BIF is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured black cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation and features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 19 13/16" W x 27 1/8" H). This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

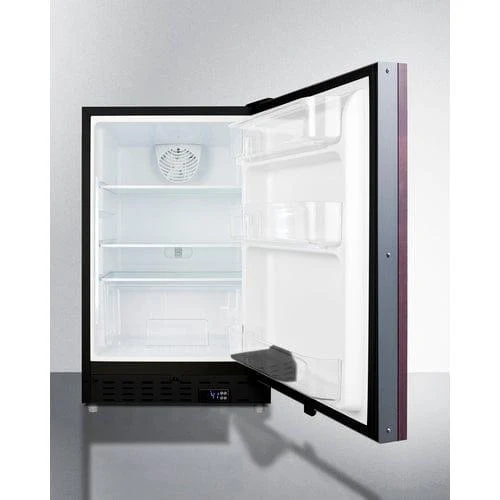

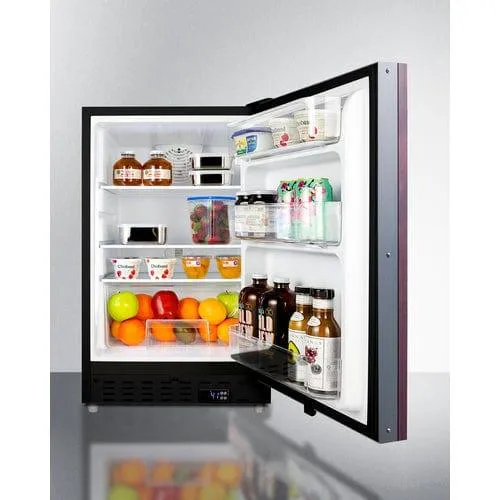

Inside, the ALR47BIF features an all-white interior for easy cleaning and viewing of contents. An LED light located toward the front of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help ensure even cooling throughout the 3.53 cu.ft. interior. Three adjustable glass shelves offer optimal storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. The user-set high and low-temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.

Sized at just 21" wide, the ALR47BIF is the perfect addition for space-challenged environments seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALFZ37BIF all-freezer. Additional choices in complete stainless steel and black cabinet styles are available.

SPECIFICATIONS

Overview
Height of Cabinet	31.75" (81 cm)
Height to Hinge Cap	32.0" (81 cm)
Width	20.25" (51 cm)
Depth	23.0" (58 cm)
Depth with Handle	24.38" (62 cm)
Depth with door at 90°	40.25" (102 cm)
Capacity	3.53 cu.ft. (100 L)
Defrost Type	Automatic
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Energy Usage/Year	251.0kWh/year
Amps	1.1
Voltage/Frequency	115 V AC/60 Hz
Weight	75.0 lbs. (34 kg)
Shipping Weight	90.0 lbs. (41 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101076522
Refrigerator Features
Door Swing	RHD
Reversible	Factory Reversible
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	0.99oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs Qty	2
Wheel Qty	2
Interior Light	Yes
Temperature Range	35 to 46°F
Sound Level	33.2 dB
Dimensions
Interior Height	23.5" (60 cm)
Interior Width	16.25" (41 cm)
Interior Depth	17.0" (43 cm)
Compressor Step Height	6.25" (16 cm)
Compressor Step Width	16.25" (41 cm)
Compressor Step Depth	6.0" (15 cm)

AVAILABLE UPGRADES

Exterior
PH - Probe Hole LHD - Left hand door swing HG - Hospital grade cord Alarm/Thermometer - Factory-installed alarm with external temperature readout DL2B - Factory installed NIST calibrated digital data logger (DDL)

FEATURES

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

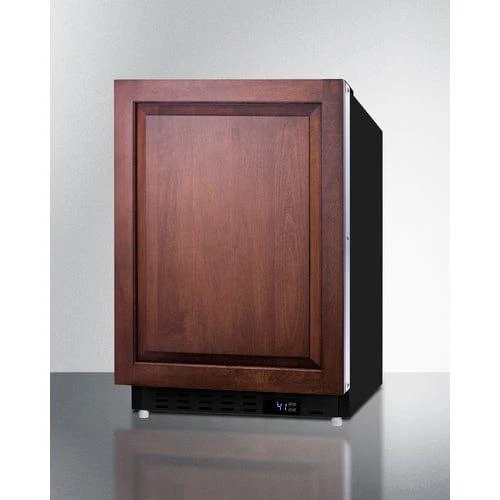

Panel-ready door

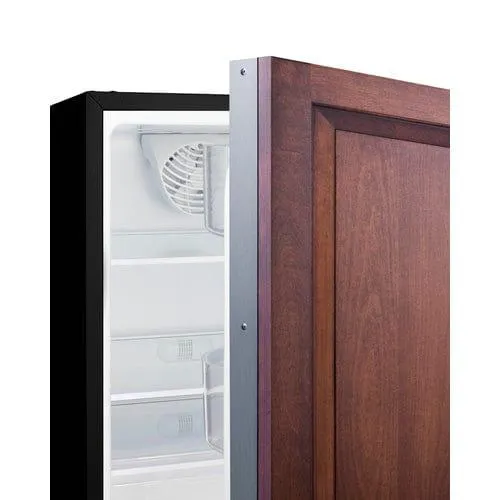

Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 19 13/16" W x 27 1/8" H; customers provide their own handles

Adjustable thermostat

Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

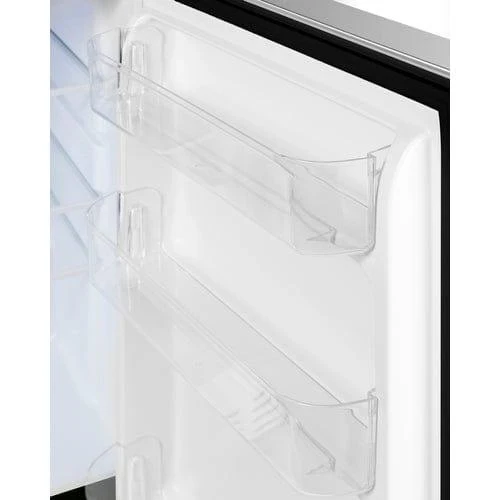

Door shelves

Three removable door racks for additional storage of larger items

Adjustable glass shelves

Three adjustable spill-proof shelves for optimal storage in 3.53 cu. ft. interior

Fruit and vegetable crisper

Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

3" thick door

Improved insulation for an efficient performance

Temperature alarms

User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Open door alarm

Audible alarm will sound if the door is left ajar for over a minute

Sealed back

Space-saving design that offers easier cleanability

Right-angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Automatic defrost

Reduced user maintenance with an auto defrost system

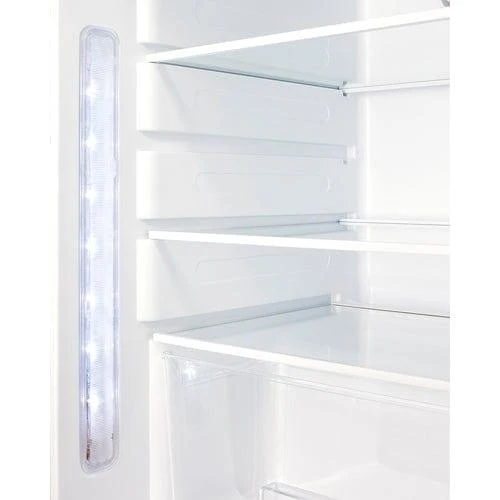

Interior light

Front-located LED light ensures entire interior is lit when door opens

Matching all-freezer

This unit can be paired with the ALFZ37BIF all-freezer for a complete set

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
