Summit 21" Wide Built-In Commercial All-Refrigerator, ADA Compliant SCR504SSTBADA

Commercially listed to NSF-7 standards, with a versatile design for built-in or freestanding use.

Summit Commercial manufactures a variety of refrigerator and freezer choices for smaller foodservice spaces, with slim-fitting options for undercounter use.

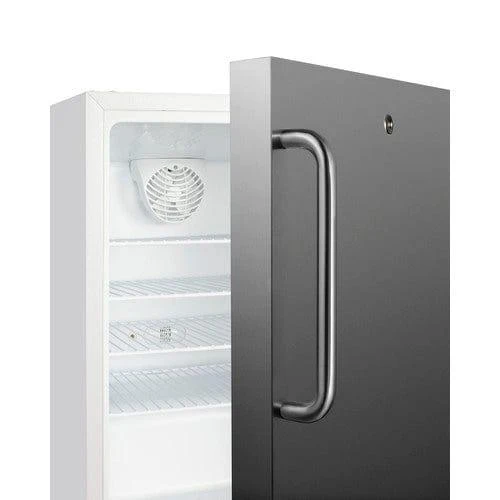

Model SCR504SSTBADA is a commercial all-refrigerator sized at just under 21" wide and 32" high for installation under lower ADA compliant counters. Its front-breathing design and fully finished cabinet allow built-in or freestanding use for versatile placement. This model has a textured white cabinet and 304 grade stainless steel wrapped reversible door with a pro style towel bar handle. A factory-installed lock is located towards the top of the door, ensuring more comfortable access behind the bar.

Easy digital controls are located in the kickplate. The temperature can be managed in Fahrenheit or Celsius. Inside, this refrigerator includes adjustable wire shelves, automatic LED lighting, and an internal fan to help ensure even cooling throughout the 3.32 cu.ft. interior. Audible open door and high/low temperature alarms help ensure stored contents are properly cooled. These alarms can also be disabled if preferred.

The SCR504SSTBADA is ETL-S listed to NSF-7 commercial standards and features hydrocarbon refrigerant for a greener cooling system that meets CARB regulations. To create a matching set, pair with the SCF505SSTBADA all-freezer. Additional commercial refrigeration choices are available in more sizes and sizes. Browse the full Summit lineup for shallow depth back bar coolers, commercial wine cellars, icemakers, reach-in refrigeration, and much more.

SPECIFICATIONS

Overview
Height of Cabinet	31.75" (81 cm)
Height to Hinge Cap	32.0" (81 cm)
Width	20.25" (51 cm)
Depth	22.5" (57 cm)
Depth with Handle	25.0" (64 cm)
Depth with door at 90°	40.25" (102 cm)
Capacity	3.32 cu.ft. (94 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.1
Voltage/Frequency	115 V AC/60 Hz
Weight	69.0 lbs. (31 kg)
Shipping Weight	105.0 lbs. (48 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101086132
Refrigerator Features
Door Swing	RHD
Reversible	Yes
Shelf Type	Wire
Shelf Qty	4
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	0.99oz.
High Side PSI	180.0
Low Side PSI	80.0
Level Legs Qty	2
Interior Light	Yes
Temperature Range	2 to 8°C
Dimensions
Interior Height	23.5" (60 cm)
Interior Width	16.25" (41 cm)
Interior Depth	17.0" (43 cm)
Compressor Step Height	6.25" (16 cm)
Compressor Step Width	16.25" (41 cm)
Compressor Step Depth	6.0" (15 cm)

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing
Handle
TBC Copper Towel Bar Handle Upgrade

FEATURES

Commercially listed

ETL-S listed to ANSI-NSF Standard 7 for commercial use

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Professional towel bar handle

Curved handle in brushed stainless steel offer an easier grip and attractive style

Factory-installed lock

Located towards the top of the door for easy access and to provide added security of unit (2 keys included)

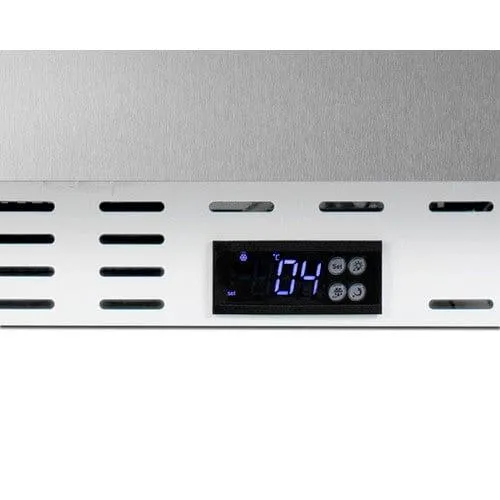

Adjustable digital thermostat

Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius

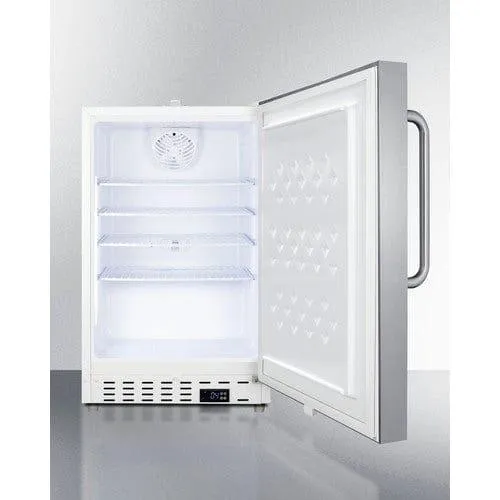

Adjustable wire shelves

Four wire shelves provide optimal storage and improved air circulation in the 3.32 cu. ft. interior

3" thick door

Improved insulation for an efficient performance

Temperature alarms

User-set high/low temperature alarms provide added security if temperature goes beyond setpoint

Open door alarm

Audible alarm will sound if the door is left ajar for over a minute

Hospital grade cord with 'green dot' plug

Secure three-pronged cord offers a tighter fit in wall sockets

Automatic defrost

Reduced user maintenance with an auto defrost system

Flat door liner

Allows for the interior to accept deeper trays

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Reversible stainless steel door

User-reversible stainless steel door for added flexibility to best accommodate your setting

Sealed back

Space-saving design that offers easier cleanability

Interior light

Front-located LED light ensures entire interior is lit when door opens

Magnetic door gasket

Quality door gaskets ensure a tight seal for energy savings and improved performance

Matching all-freezer

This unit can be paired with the SCF505SSTBADA all-freezer for a complete set

Fully finished white cabinet

Allows the unit to be freestanding

Access port

Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
