Summit 22" Wide All-Freezer FS605SSVH

Made in North America with a full 5 cu.ft. of storage capacity, more than virtually any freezer of its size

Summit's selection of North American refrigeration includes the largest capacity all-freezer in a counter height size.

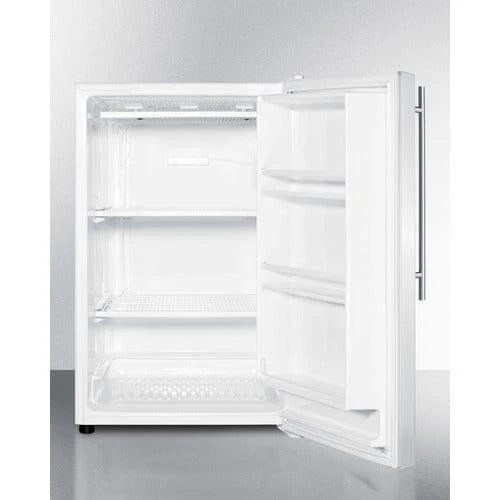

Model FS605SSVH is a freestanding residential upright freezer with a full 5 cu.ft. interior capacity. Two fixed wire shelves feature built-in cooling coils to ensure stored items are stored under the right temperature conditions. Three door racks offer additional storage convenience. This unit utilizes a static manual defrost system and unobtrusive technology with our simple and intuitive dial temperature controls.

The FS605SSVH comes with a stainless steel wrapped door and sleek vertically mounted handle with a thin 14mm diameter, a popular to style to match many cabinets. The cabinet is a textured white finish. This unit has a non-reversible right hand door swing.

With its generous storage capacity and easy-fitting size, the FS605SSVH is the perfect solution for adding extra frozen storage to shared spaces, laundry rooms, second kitchens, offices, and other settings.

SPECIFICATIONS

Overview
Height of Cabinet	33.13" (84 cm)
Height to Hinge Cap	33.63" (85 cm)
Width	21.38" (54 cm)
Depth	25.75" (65 cm)
Depth with door at 90°	44.5" (113 cm)
Capacity	5.04 cu.ft. (143 L)
Defrost Type	Manual
Door	Stainless Steel
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Energy Usage/Year	301.0kWh/year
Amps	1.4
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101087030
Freezer
Door Swing	RHD
Reversible	No
Interior Height	29.5" (75 cm)
Interior Width	18.63" (47 cm)
Interior Depth	19.0" (48 cm)
Shelf Type	Wire
Shelf Qty	2
Full Door Shelves	3
Thermostat Type	Dial
Refrigerant Type	R600a
Refrigerant Amount	1.94 oz.
Compressor Step Height	7.5" (19 cm)
Compressor Step Width	18.63" (47 cm)
Compressor Step Depth	4.0" (10 cm)
Sound Level	32.8 dB

AVAILABLE UPGRADES

Exterior
HG - Hospital grade cord Latch - Factory-installed door latch requires manual release to open unit Alarm/Thermometer - Factory-installed alarm with external temperature readout CAS3 3" casters DT - Digital thermostat PH - Probe Hole DL2B - Factory installed NIST calibrated digital data logger (DDL)
Lock
AC Keypad - AC powered keypad lock KEYPAD - Battery-powered keypad door lock L-SideLock L-TopLock

FEATURES

Upright all-freezer

Made in North America and designed for residential applications

Full 5 cu.ft. capacity

Generously sized interior offers more storage space than any freezer in this size class

Slim counter height dimensions

Just 22 inches wide for easy placement in any small location, including laundry rooms, offices, second kitchens, & more

Stainless steel wrapped door

Durable design offers a professional look to elevate your space

Professional stainless steel handle

Thin 14mm diameter on vertical stainless steel handle

Manual defrost

Static cooling system for efficiency and improved performance

Fixed wire shelves

Two interior shelves with built-in cooling coils to ensure proper cold storage for your items

Door shelves

Three racks for added storage options

Dial thermostat

Simple and intuitive analog controls located inside for easy temperature management

Quiet operation

Runs at under 33 dB for a quiet performance in any setting

Fully finished white cabinet

Allows the unit to be used freestanding

Leveling legs

Front adjustable feet let you ensure a clean fit on uneven surfaces

Right hand door swing

Note: this door is not reversible

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
