Summit 22" Wide Top Mount Refrigerator-Freezer FF946W

This item has been discontinued.

Made in North America with a unique footprint for smaller kitchens

SUMMIT's thin-line collection of frost-free refrigerator-freezers brings quality and convenience to even the smallest kitchen space.

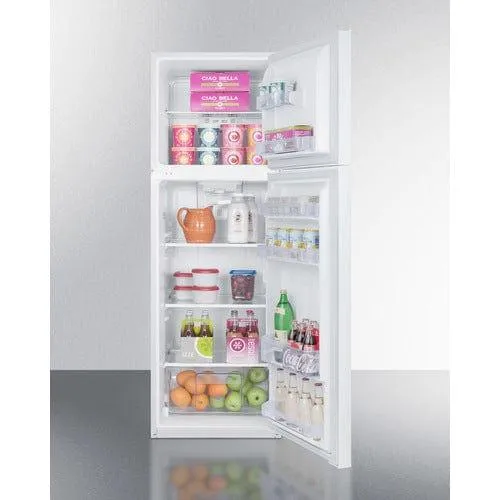

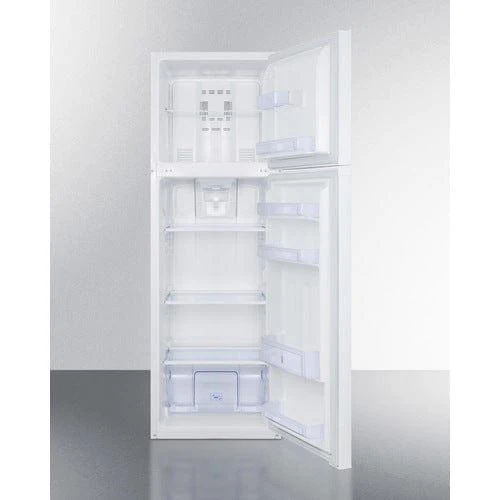

The FF946W offers a full 8.8 cu.ft. capacity inside a slim fit, with a unique curved door design for added style. The fresh food section includes adjustable glass shelves for spill-proof storage and easy cleaning, with a large tilt-out crisper and four door racks to help keep your refrigerator organized. The large freezer section includes a removable wire shelf and two door racks for added convenience.

Made in North America, the FF946W includes reversible doors and comes in a white finish. To add a factory installed icemaker, order FF946WIM. For this unit in stainless steel, see the FF948SS.

NOTE: Because of this unit's curved door style, the FF946W requires an additional 1 3/4" of width to open the doors to a full 90º. If placing this unit against a right angle wall, be sure to accommodate this extra space.

SPECIFICATIONS

Overview
Height of Cabinet	64.75" (164 cm)
Height to Hinge Cap	65.75" (167 cm)
Width	22.0" (56 cm)
Width with Door Open	23.75" (60 cm)
Depth	26.0" (66 cm)
Depth with door at 90°	44.25" (112 cm)
Capacity	8.8 cu.ft. (249 L)
Defrost Type	Frost-Free
Door	White
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Energy Usage/Year	316.0kWh/year
Amps	0.82
Voltage/Frequency	115 V AC/60 Hz
Weight	125.0 lbs. (57 kg)
Shipping Weight	134.5 lbs. (61 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101038445
Refrigerator-Freezer
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Crisper Qty	1
Crisper Finish	Transparent
Crisper Cover	Glass
Interior Light	Yes
Refrigerator - Interior Height	40.5" (103 cm)
Refrigerator - Interior Width	17.0" (43 cm)
Refrigerator - Interior Depth	17.0" (43 cm)
Refrigerator - Capacity	6.67 cu.ft
Refrigerator - Shelf Type	Glass
Refrigerator - Shelf Qty	2
Refrigerator - Full Door Shelves	4
Freezer - Interior Height	16.0" (41 cm)
Freezer - Interior Width	16.25" (41 cm)
Freezer - Interior Depth	13.25" (34 cm)
Freezer - Capacity	2.1 cu.ft
Freezer - Shelf Type	Wire
Freezer - Shelf Qty	1
Freezer - Full Door Shelves	1
Freezer - Half Door Shelves	1
Thermostat Type	Dial
Fan Type	Interior
Refrigerant Type	R134a
Refrigerant Amount	3.53 oz.
Level Legs	2
Compressor Step Height	9.75" (25 cm)
Compressor Step Width	17.0" (43 cm)
Compressor Step Depth	4.0" (10 cm)
Sound Level	34.3 dB

AVAILABLE UPGRADES

Handle
TB Set - Stainless steel towel bar handles pre-installed on unit TBC Copper Towel Bar Handles CP Full-Length Copper Pipe Handles
Lock
LL - Side-mounted locks LLF2 - Combination lock

FEATURES

Thin-line design

Limited space is no problem for our thin-line models, designed specifically for those hard-to-fit spots

Frost-free operation

No-frost convenience for reduced user maintenance

Adjustable shelves

Rearrange your refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

Full freezer shelf

Offers additional options for organization

Door storage

Store large bottles right on the door for easy access

Clear crisper

Get the longest life and best taste out of produce by storing greens in a convenient slide drawer

Reversible doors

User-reversible door swing for added flexibility

Interior light

Automatically illuminates when you open the door

100% CFC free

Environmentally friendly design without ozone-damaging chemicals
