Summit 24" Wide 2-Drawer Refrigerator-Freezer (Panels Not Included) ADRF244PNR

The Summit 24" Wide 2-Drawer Refrigerator-Freezer offers convenient storage and organization with its spacious two-drawer design. With its wide size, this appliance can accommodate large quantities of food without taking up too much space in your kitchen. Keep your meals fresh and organized with this efficient refrigerator-freezer.

Panel-ready drawers allow you to customize the front to achieve the perfect style for every indoor or outdoor kitchen space

Summit manufactures an extensive selection of drawer refrigeration for versatile installation indoor or outdoor kitchen spaces, with customizable designs that allow easy integration into any cabinet style.

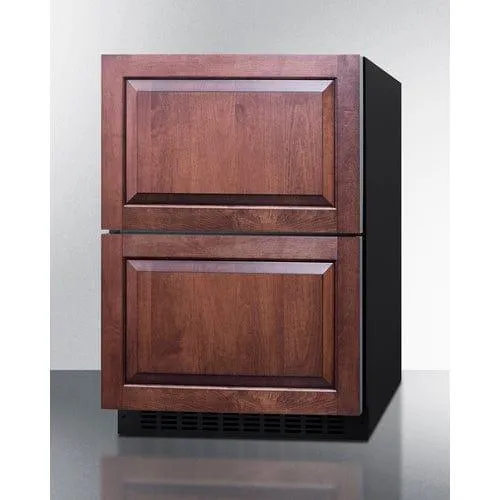

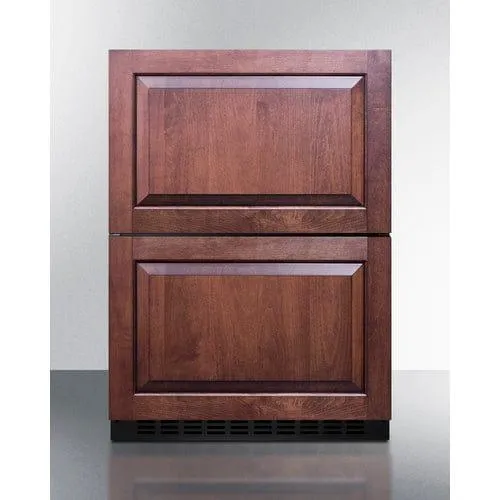

Sized at just under 24" wide and 32" high, model ADRF244PNR is a 2-drawer refrigerator-freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The drawer front are specially designed to accept user-provided overlay panels, allowing you to create a custom look that blends into existing cabinetry (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). The drawers are fully finished in stainless steel. We include two sleek handles for optional use. This unit comes with a jet black cabinet and sealed back to protect all components from the elements. It can be used in indoor or outdoor spaces.

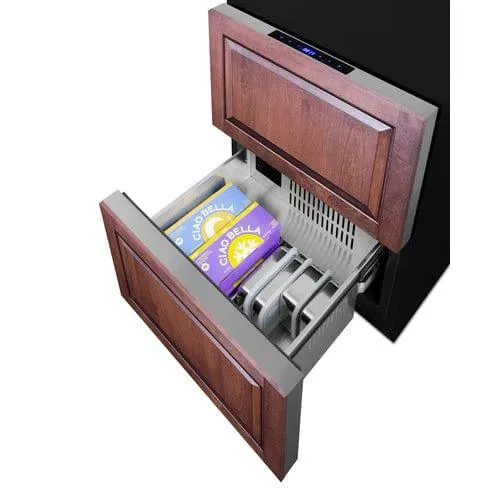

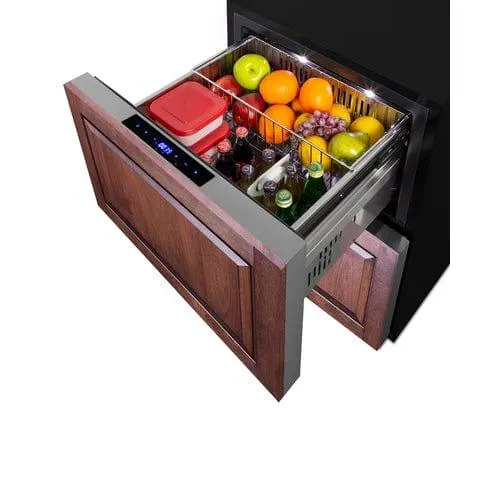

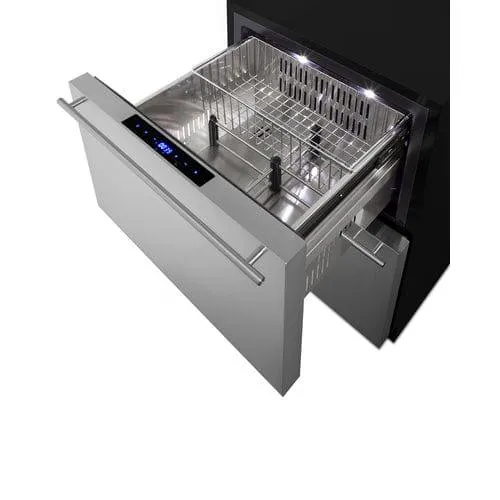

Inside, the ADRF244PNR has a generous 3.3 cu.ft. capacity to accommodate your storage needs. Both the top drawer refrigerator and bottom drawer freezer utilize frost-free operation with fan-forced cooling, ensuring an even temperature distribution with minimum user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two (freezer) or four (refrigerator) zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting in the refrigerator drawer makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance.

The ADRF244PNR is ETL-S listed to NSF-7 commercial standards and approved for residential use. Additional refrigerator and freezer drawers are available, with 15" and 18" choices and standard height options. Browse the full Summit line to explore your endless options for ADA compliant undercounter spaces.

SPECIFICATIONS

Overview
Height of Cabinet	31.88" (81 cm)
Width	23.38" (59 cm)
Depth	22.5" (57 cm)
Depth with Handle	23.88" (61 cm)
Depth with door at 90°	34.25" (87 cm)
Capacity	3.32 cu.ft. (94 L)
Defrost Type	Frost-Free
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	370.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	105.0 lbs. (48 kg)
Shipping Weight	142.5 lbs. (65 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101088211
Refrigerator-Freezer
Door Swing	Drawer
Interior Light	Yes
Refrigerator - Interior Height	8.0" (20 cm)
Refrigerator - Interior Width	17.0" (43 cm)
Refrigerator - Interior Depth	14.5" (37 cm)
Refrigerator - Temperature Range	36°F to 43°F
Freezer - Interior Height	8.0" (20 cm)
Freezer - Interior Width	17.0" (43 cm)
Freezer - Interior Depth	14.5" (37 cm)
Thermostat Type	Digital
Fan Type	Interior
Refrigerant Type	R600a
Refrigerant Amount	1.38 oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs	4
Freezer - Temperature Range	-11°F to 11°F
Compressor Step Height	4.0" (10 cm)
Compressor Step Width	17.0" (43 cm)
Compressor Step Depth	3.5" (9 cm)
Sabbath Mode	Yes
Sound Level	34.6 dB

AVAILABLE UPGRADES

Exterior
SSK - Stainless steel kickplate Latch - Factory-installed door latch requires manual release to open unit

FEATURES

24" Wide 2-Drawer Refrigerator-Freezer

Complete refrigeration storage solution with top drawer refrigerator and bottom drawer freezer

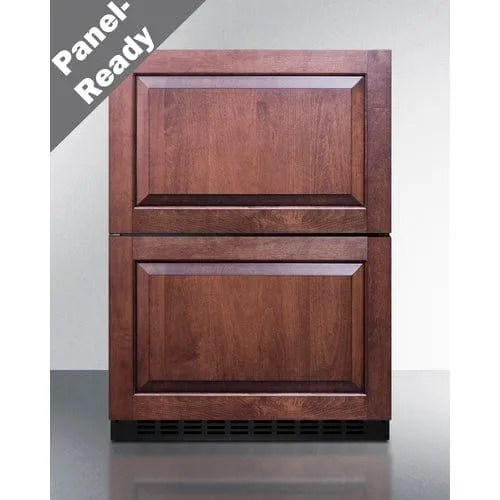

Panel-ready drawer fronts

Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design

ADA compliant design

Sized just under 32" high to allow installation under lower ADA compliant counters

Built-in capable

Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings

Indoor/Outdoor compatible

Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior

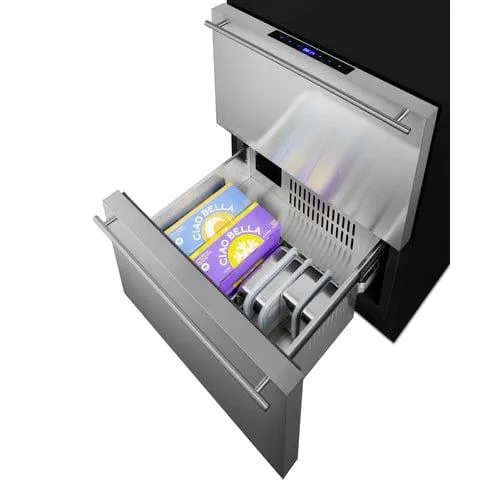

Stainless steel drawers

Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style

Professional handles

Sleek stainless steel handles add an elegant touch to any setting

Frost-free operation

No-frost operation for minimum user maintenance

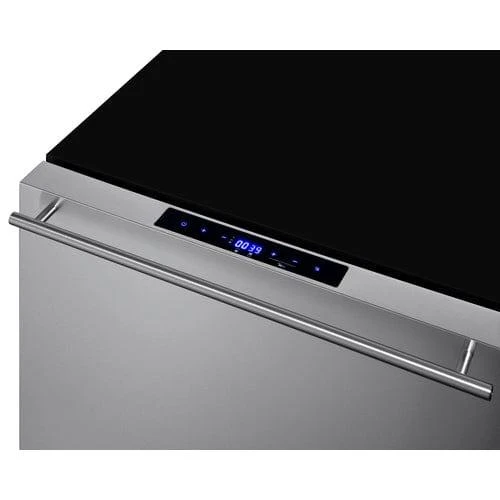

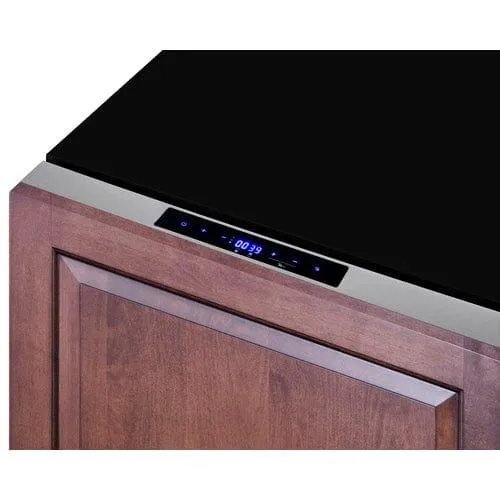

Digital thermostat

Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button

LED lighting

Elegant LED lighting in a gentle white hue illuminates the refrigerator section for an easy view of the interior

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

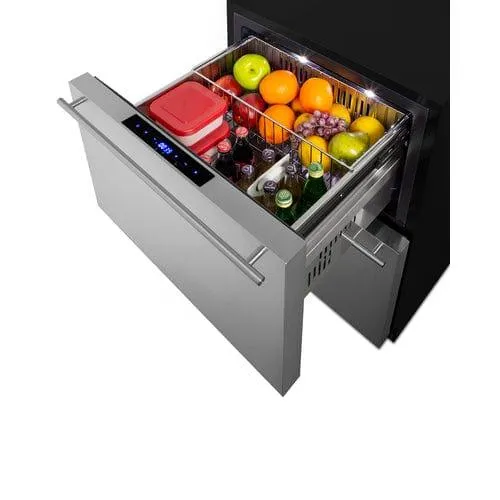

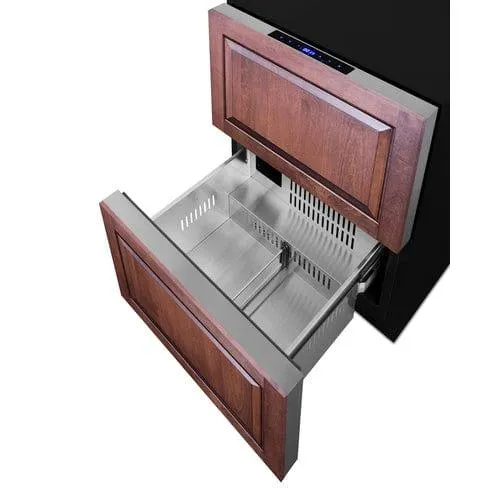

Drawer dividers

Two adjustable dividers make it simple to organize the drawer interiors

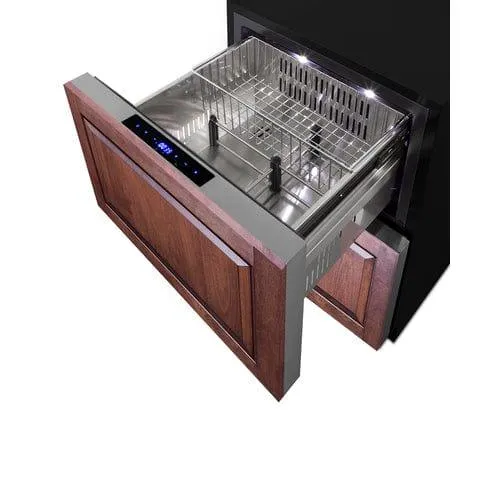

Sliding basket

Removable chrome basket included for added storage convenience

Temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Open drawer alarm

Audible alarm will sound if either drawer is left open longer than one minute

Sabbath Mode

Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

Child lock

Disables digital controls after two minutes of activity for added safety

Temperature memory function

Unit will restore the most recent temperature settings after losing power

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

Space-saving design with no exposed coils for easier cleanability and added protection from the elements

Fully finished black exterior cabinet

Allows the unit to be used freestanding

Anti-tip bracket

Included and recommended for user-installation to reduce the risk of tipping

Commercially approved

ETL-S listed to NSF-7 standards to allow use in commercial establishments

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
