Summit 24" Wide Built-In Beverage Center (Panel Not Included) SCR610BLSDIF

Ideal for restaurant use, with a 25" high stainless steel interior specially designed to store two vertical rows of taller bottles

Summit Commercial's extensive lineup of beverage centers and refrigerators offers the perfect storage conditions for restaurants and other foodservice establishments.

The SCR610BLSDIF comes in an easy-fitting 24" footprint, with a front-breathing design that can be built-in under counters or used freestanding. The door includes an integrated stainless steel door frame designed to accept full overlay panels (sized 23 1/2" W x 30" H and at least 3/4" thick). This lets you blend the unit into your cabinetry design for a seamless look. A digital thermostat is located in the kickplate for easy temperature management.

Inside, the SCR610BLSDIF utilizes low maintenance automatic defrost operation with an internal fan to ensure even temperature distribution. Recessed LED lighting offers the perfect display conditions inside the durable and easy-to-clean stainless steel interior. This unit includes three cantilevered chrome shelves to ensure flexible storage that accommodates any item size. The interior is taller than many refrigerators in its class, allowing the unit to easily store two rows of 12" high bottles. High temperature and open door alarms offer added protection in busy commercial settings.

The SCR610BLSDIF is ETL-S listed to NSF-7 for use in commercial settings. For this unit with a glass door, see the SCR610BL.

SPECIFICATIONS

Overview
Height of Cabinet	34.0" (86 cm)
Width	23.63" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.38" (64 cm)
Depth with door at 90°	45.5" (116 cm)
Capacity	5.0 cu.ft. (142 L)
Defrost Type	Automatic
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	0.8
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Shipping Weight	148.0 lbs. (67 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101064765
Refrigerator Features
Sabbath Mode	Yes
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Chrome
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.99oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	2
Interior Light	Yes
Temperature Range	36°F to 43°F
Sound Level	37.4 dB
Dimensions
Interior Height	25.0" (64 cm)
Interior Width	19.38" (49 cm)
Interior Depth	17.38" (44 cm)
Compressor Step Height	3.75" (10 cm)
Compressor Step Width	19.38" (49 cm)
Compressor Step Depth	4.63" (12 cm)

AVAILABLE UPGRADES

Exterior
SSK - Stainless steel kickplate Latch - Factory-installed door latch requires manual release to open unit LHD - Left hand door swing PH - Probe Hole
Interior
LockBoxSS - Interior locking compartment

FEATURES

Commercially approved

ETL-S listed to NSF-7 Standards for use in commercial establishments

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

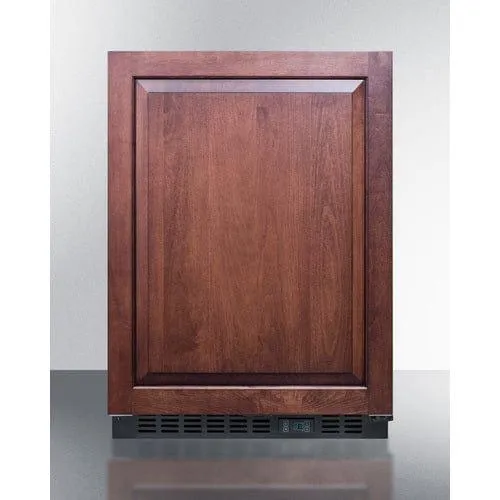

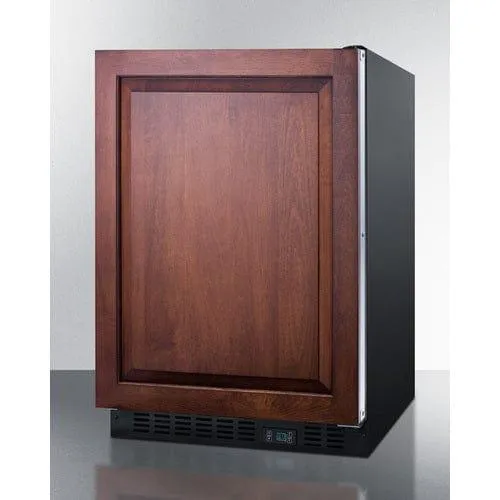

Panel-ready door

Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design (panel size: 23 1/2" W x 30" H and at least 3/4" thick; maximum weight: 10 lbs.); customers provide their own handles

Stainless steel interior

Walls are constructed from stainless steel for added strength and easy cleanup

Digital thermostat

Intuitive digital controls ensure easy temperature management

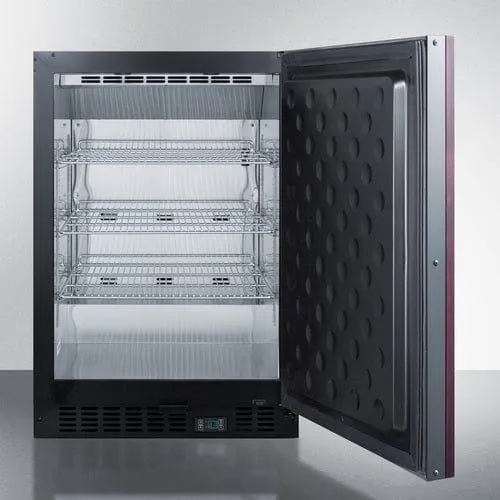

Cantilevered chrome shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Tall interior

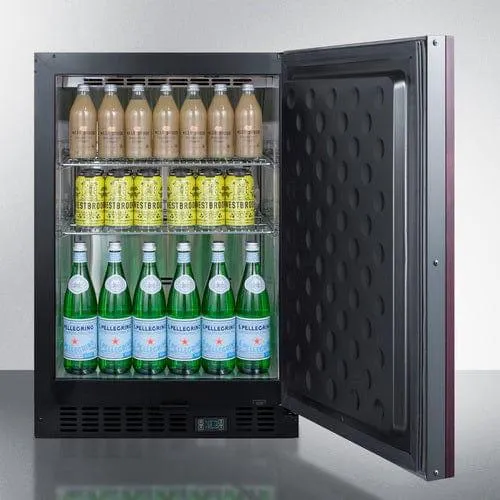

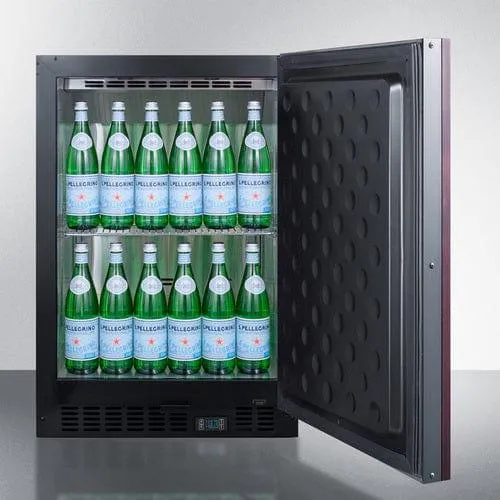

25" high interior accommodates two vertical rows of 12" tall bottles

Recessed LED lighting

Efficient and attractive lighting illuminates stored products

Open door alarm

Audible alarm will sound if the door is left ajar for over a minute

High temperature alarm

Alarm sounds if the interior temperature rises out of suggested range

Automatic defrost

Reduced user maintenance with automatic defrost

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Fan-forced cooling

Internal fan ensures the interior is evenly cooled from top to bottom

Sealed back

Space saving design with easier cleanability

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
