Summit 24" Wide Built-In Drawer Refrigerator SDR24

Versatile design with a fully finished drawer front in stainless steel that can also accept overlay panels for a custom look

Summit offers a quality line of commercially approved drawer refrigerators, including single drawer options for built-in installation.

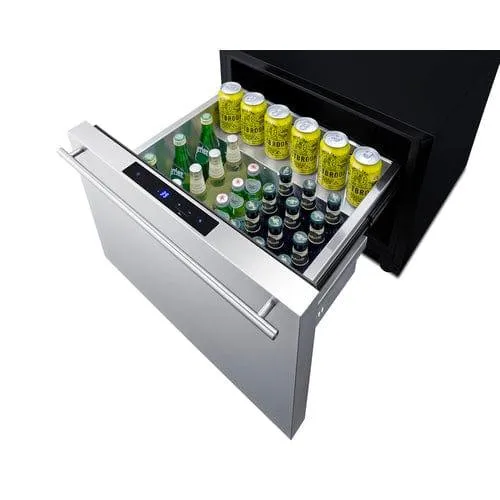

The SDR24 is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. It's sized at just under 24" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The fully finished black cabinet also enables freestanding use. The drawer features 304 grade stainless steel construction inside and out, with a fully finished front that can also be customized with your own overlay panels (not included) to match existing cabinetry style (panel dimensions: 15.6" H x 23.4" W at 3/4" maximum thickness). This unit has a sealed rear with no exposed coils and a right angle plug for an easier fit.

Inside, the SDR24 has a 2 cu.ft. capacity to accommodate your storage needs. Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. We also include a half-sized glass shelf. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance.

With its fully-featured, weatherproof design, the SDR24 is the perfect cooling compartment or beverage holder for home kitchens, as well as hotel spaces, foodservice areas, and more. For this unit sized to fit slimmer spaces, see the FF1DSS.

Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.

SPECIFICATIONS

Overview
Height of Cabinet	17.75" (45 cm)
Width	23.38" (59 cm)
Depth	22.0" (56 cm)
Depth with Handle	23.5" (60 cm)
Depth with door at 90°	37.88" (96 cm)
Capacity	2.0 cu.ft. (57 L)
Defrost Type	Frost-Free
Door	Stainless Steel/Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	265.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	62.0 lbs. (28 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101086590
Refrigerator Features
Sabbath Mode	Yes
Door Swing	Drawer
Reversible	No
Shelf Type	Glass
Shelf Qty	1
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.85oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	36 to 43ºF
Sound Level	32.6 dB
Dimensions
Interior Height	13.0" (33 cm)
Interior Width	17.75" (45 cm)
Interior Depth	15.5" (39 cm)
Compressor Step Height	6.5" (17 cm)
Compressor Step Width	17.75" (45 cm)
Compressor Step Depth	4.5" (11 cm)

FEATURES

24" wide single drawer refrigerator

2 cu.ft. all-refrigerator in a single drawer style

Commercially approved

ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

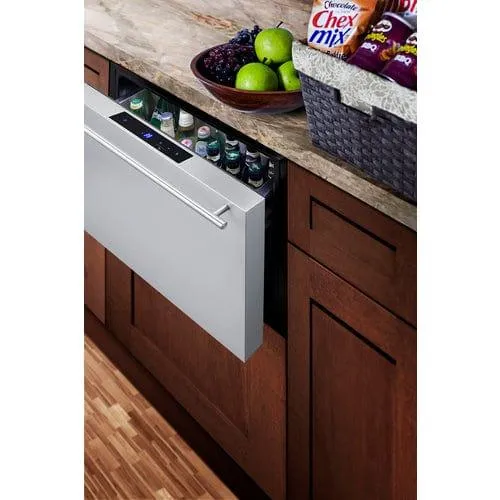

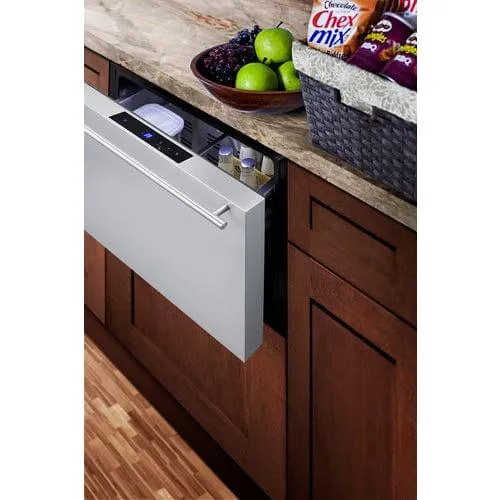

Built-in capable

Front-breathing design allows you to build the drawer into cabinetry

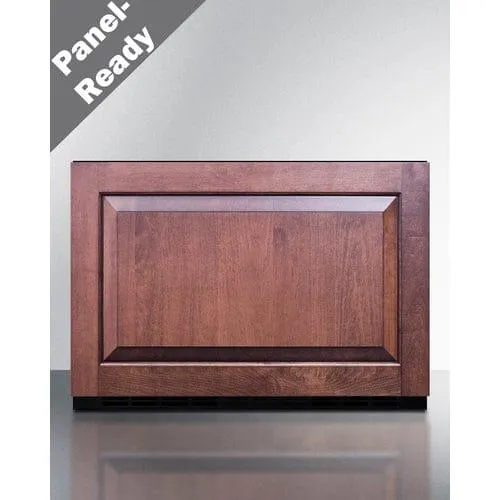

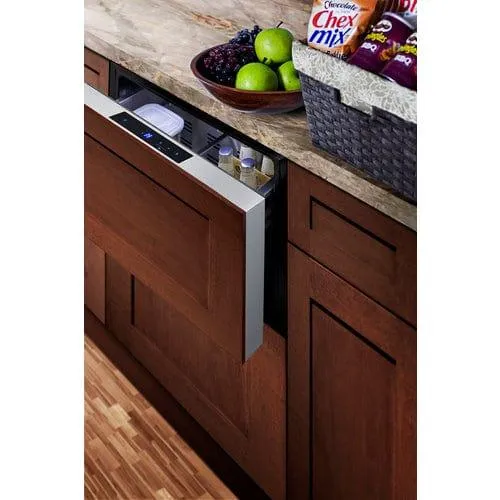

Panel-ready drawer front

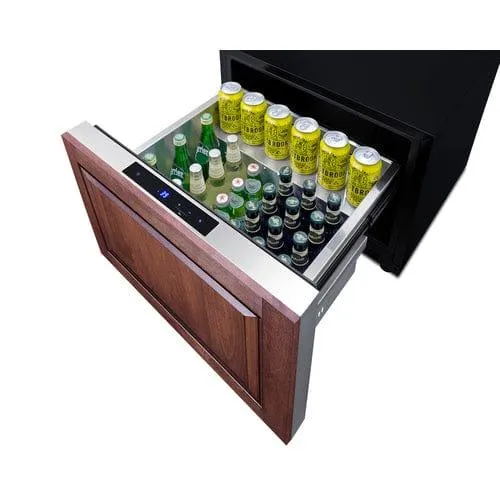

Drawer accepts an overlay panel to let you seamlessly blend the unit into an existing cabinetry design (panel dimensions: 15.6" H x 23.4" W at 3/4" maximum thickness)

304 grade stainless steel drawer

Drawer front and interior constructed from stainless steel for added durability and easy cleanability

Frost-free operation

Minimum user maintenance with a fully no-frost operation system

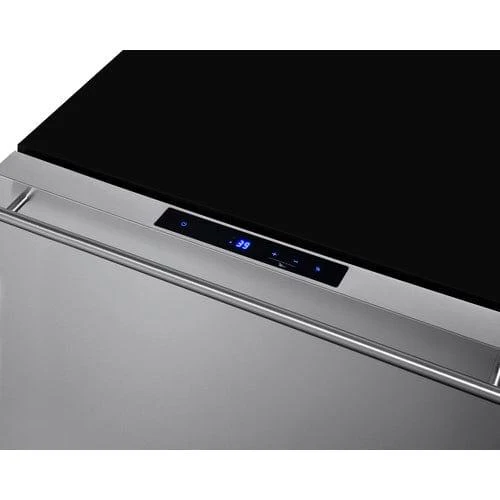

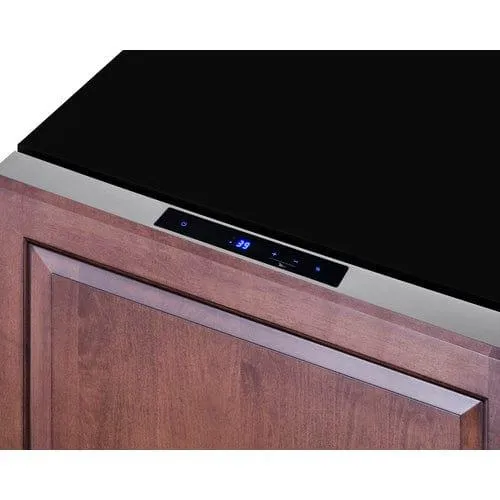

Digital thermostat

Electronic controls located on the top drawer ensure easy temperature management, with an external readout of Celsius or Fahrenheit

LED lighting

Elegant LED lighting in a gentle white hue illuminates the refrigerator for an easy view of the interior

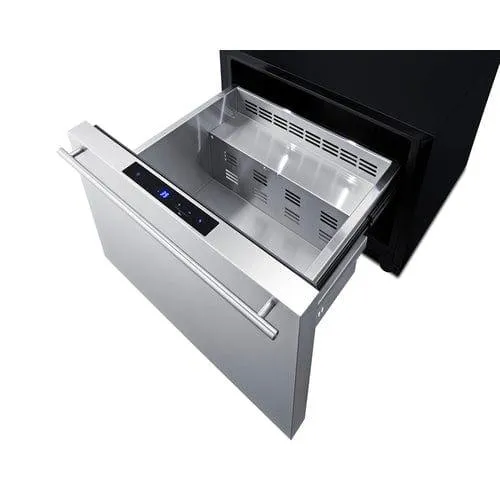

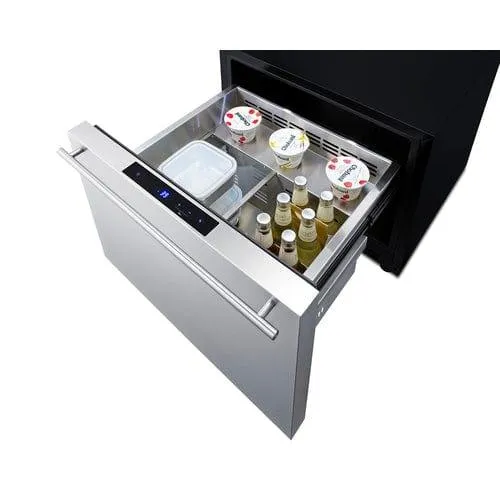

Drawer divider

Removable divider makes it easy to organize stored items

Glass shelf

Includes one half-sized shelf that lets you create more separation as needed

Internal fan

Fan-forced cooling ensures the unit is evenly cooled

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Professional handle

A sleek stainless steel handle adds an elegant touch to any setting

Temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Open drawer alarm

Audible alarm will sound if the drawer is left open longer than one minute

Sabbath Mode

Optional setting lets you disable certain electrical functions during periods of religious observance for 48 hours

Quiet operation

Runs at under 33 dB for a quiet performance in any setting

Child lock

Disables digital controls after two minutes of activity for added safety

Sealed back

Space-saving design with no exposed coils for easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
