Summit 24" Wide Built-In Kegerator SBC682NK

Versatile construction ideal for indoor/outdoor use in commercial or residential settings

Summit offers a complete line of built-in kegerators designed for indoor/outdoor use in commercial or residential settings.

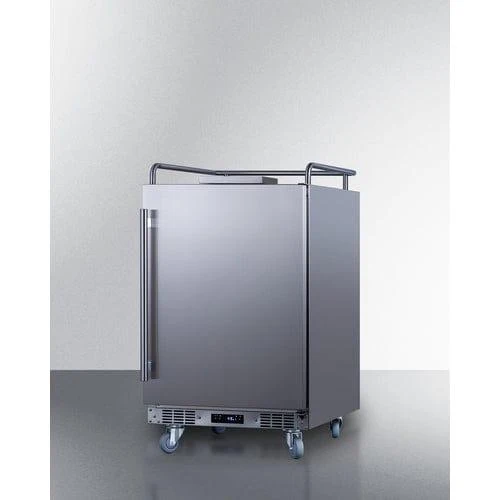

The SBC682NK features a versatile design that is ETL-S listed to NSF-7 and meets UL-471 standards for use in commercial establishments but is also approved for residential use. Sized at just 24" wide, it features a front-breathing design for built-in installation and a fully-finished, weatherproof 304-grade stainless steel cabinet for use in the outdoors. The durable stainless steel door and handle complete the look. The sealed back allows for easy cleaning of the unit. Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. The user-reversible door swing makes it easy to accommodate any location’s setup and four included casters (two are locking) make moving the unit easy.

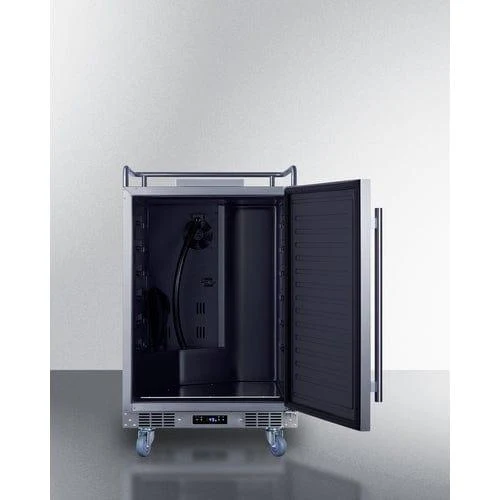

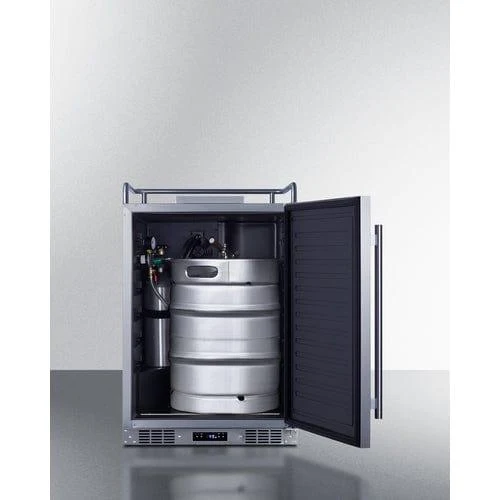

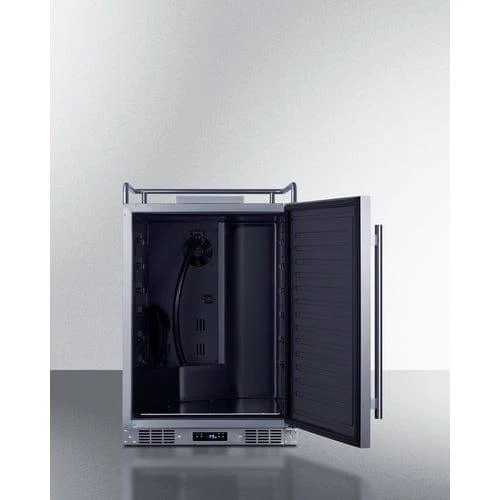

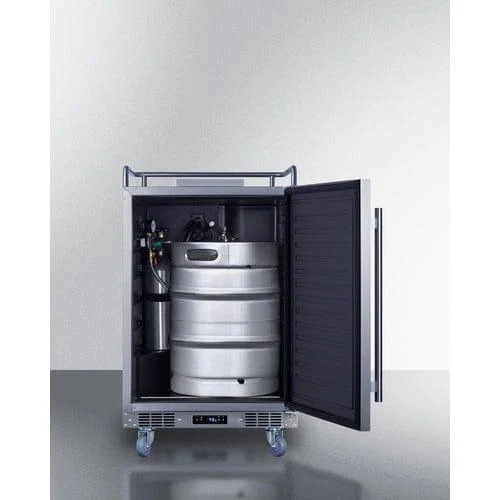

Inside, the 5.6 cu. ft. interior can accommodate a full half keg, two slim quarter kegs, or up to three Cornelius or sixth barrel kegs. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator. A digital thermostat makes it easy to manage the temperature, while the external digital display has a readout in Celsius or Fahrenheit. Automatic defrost operation ensures minimal user maintenance. A tap cool system keeps your beer cold as it goes through your tower, and a Velcro strap holds the Co2 tank in place. A stainless steel floor plate provides added protection when placing and removing kegs. The Memory IC function recovers the unit's last settings in the case of a power outage or disruption.

This unit can accommodate a tap kit, purchased by the user or through Summit, for dispensing beer, wine, coffee, or nitro coffee. Browse Summit's tap kit options at www.summitappliance.com.

SPECIFICATIONS

Overview
Height of Cabinet	33.63" (85 cm)
Width	23.75" (60 cm)
Depth	24.25" (62 cm)
Depth with Handle	26.25" (67 cm)
Depth with door at 90°	46.75" (119 cm)
Capacity	5.6 cu.ft. (159 L)
Defrost Type	Automatic
Door	Stainless Steel
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	305.0kWh/year
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	120.0 lbs. (54 kg)
Shipping Weight	140.0 lbs. (64 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101075471
Kegerator
Door Swing	RHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Chrome
Shelf Qty	2
Thermostat Type	Digital
Fan Type	Interior
Refrigerant	R600a
Refrigerant Amount	1.06 oz.
High Side PSI	150.0
Low Side PSI	50.0
Level Legs Qty	4
Wheel Qty	4
Temperature Range	34°F to 68°F (1°C to 20°C)
Sound Level	34.0 db

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing Latch - Factory-installed door latch requires manual release to open unit

FEATURES

Large capacity kegerator

5.6 cu.ft. interior can accept a full half barrel keg, two slim quarter kegs, or up to three sixth barrel or Cornelius style kegs; compatible with beer, wine, coffee, or nitro coffee tap systems

Commercially approved

ETL-S listed to NSF-7 standard and meets UL-471 for use in commercial settings

Weatherproof design

Solid 304 grade stainless steel construction allows placement in the outdoors

Built-in capable

Front-breathing design allows fully recessed installation under counters

Automatic defrost

Reduced user maintenance with auto defrost operation

Digital thermostat

Electronic controls ensure easy temperature management, with an external readout in Celsius or Fahrenheit

Tap cool system

Keeps cold air flowing to the tower for consistently cold beer

Stainless steel floor cover

Interior includes steel cover to protect the floor when loading kegs

Top guard rail (ships unassembled)

Attractive chrome guard rail helps to reduce spills and neaten service

Stainless steel drip tray

Removable two-piece drip tray catches spills to help contain the mess

Wire shelves

2 wire shelves (with six placement options) allow unit to also function as a beverage refrigerator

Memory IC function

Recovers the unit's last settings in the case of a power outage or disruption

Reversible door

User-reversible door swing for added flexibility

Casters included (ship unassembled)

Four casters (two locking) afford easy portability

Pro style handle

Stainless steel handle adds style to any setting

Fully finished stainless steel cabinet

Allows the dispenser to be used freestanding

Sealed back

Space saving design with easier cleanability

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
