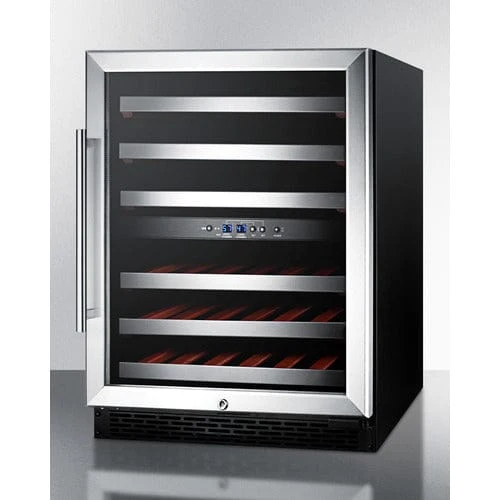

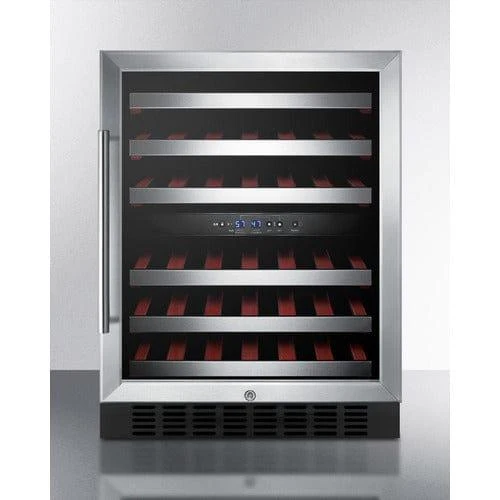

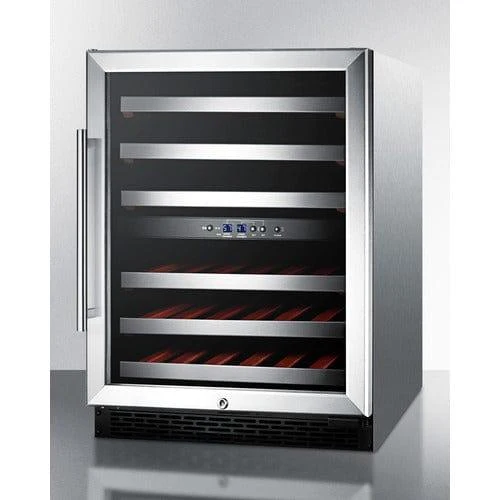

Summit 24" Wide Built-In Wine Cellar, ADA Compliant

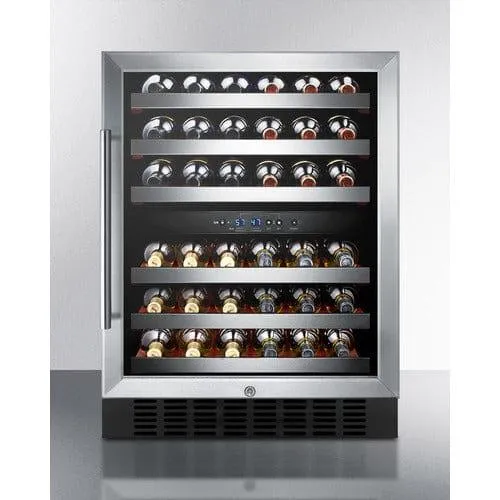

Versatile shelving holds 46 750ml Bordeaux bottles or 40 Burgundy bottles

Store your finest collection in the SWC530BLBISTCSSADA, an ADA compliant built-in wine cellar with advanced features and stunning design.

Available in color black (SWC530BLBISTADA)

Two digital thermostats allow you to chill your white wine while separately preserving red at a warmer temperature. Slide-out wooden shelves with stainless steel trim let you store up to 46 standard 750ml sized Bordeaux bottles. Alternatively, you can store up to 40 bottles of the wider Pinot Noir or Chardonnay bottles, while still fitting an additional six Bordeaux bottles. Full automatic defrost, interior lighting, and SUMMIT's own "hidden" evaporator help to keep use and maintenance simple.

At 32" high, the SWC530BLBISTCSSADA can be used built-in or freestanding under lower ADA compliant counters. The cabinet is fully wrapped in stainless steel, with a reversible glass door to best display your collection. A professional stainless steel door handle completes the look.

SPECIFICATIONS

Overview
Height of Cabinet	32.0" (81 cm)
Width	23.63" (60 cm)
Depth	23.38" (59 cm)
Depth with Handle	25.0" (64 cm)
Depth with door at 90°	45.5" (116 cm)
Bottles	46 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	2.0
Voltage/Frequency	115 V AC/60 Hz
Weight	112.0 lbs. (51 kg)
Shipping Weight	173.0 lbs. (78 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101056425
Wine Cellar
Number of Zones	2
Door Swing	RHD
Reversible	Yes
Shelf Type	Wood
Shelf Qty	6
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.23 oz.
High Side PSI	150.0
Low Side PSI	50.0
Level Legs	2
Sound Level	34.3 dB

AVAILABLE UPGRADES

Door
T4 Door Tint T3 Door Tint T2 Door Tint T1S Door Tint T1 Door Tint
Exterior
LHD - Left hand door swing

FEATURES

ADA Compliant

32" height fits under lower ADA compliant counters

Built-in capable

Make the best use of space by installing your appliance under the counter

Stainless steel cabinet

Fully wrapped in 304 grade stainless steel

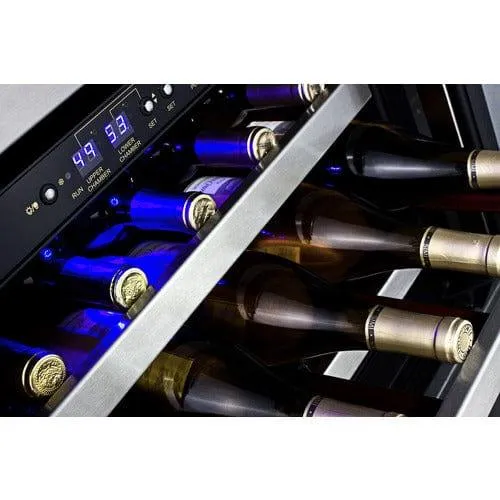

Digital thermostats

Set and adjust two temperature zones separately with easy-to-use digital controls and digital displays

Two temperature zones

Lower zone for reds has a temperature range of 10º C/50º F to 18º C/64º F; Upper zone stores whites and sparkling wine between 5º C/41º F to 10º C/50º F

Automatic defrost

Reduced maintenance with auto defrost system

Slide-out wooden shelving

Ideal for holding your bottles, with an elegant touch of stainless steel trim

Versatile shelving

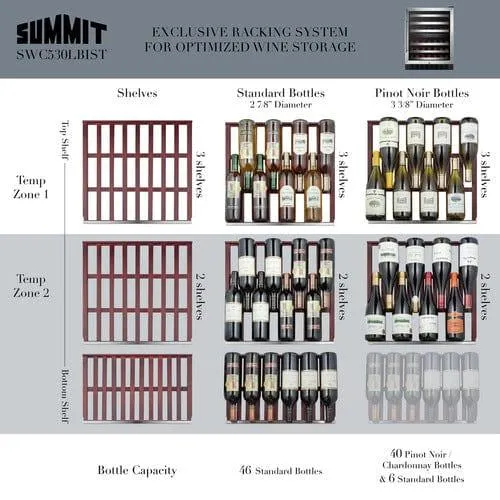

Interior can store both standard Bordeaux bottles and wider Burgundy type for Pinot Noir and Chardonnay; see your Shelving Guide for details

Stainless steel door frame

Classic trim for a refined look

Glass door

Provides a full display of your collection

Interior light

Illuminate your collection in style

Factory installed lock

Keyed lock for secure interior

Reversible door

User reversible door swing

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals
