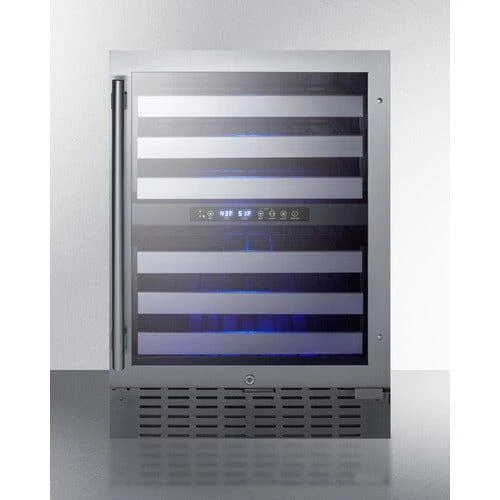

Summit 24" Wide Built-In Wine Cellar SWC532BLBIST

Commercial grade design meets NSF-7 standards, with a seamless stainless steel door trim for true luxury under the counter

Summit offers an extensive selection of wine cellars with versatile designs for residential or commercial use.

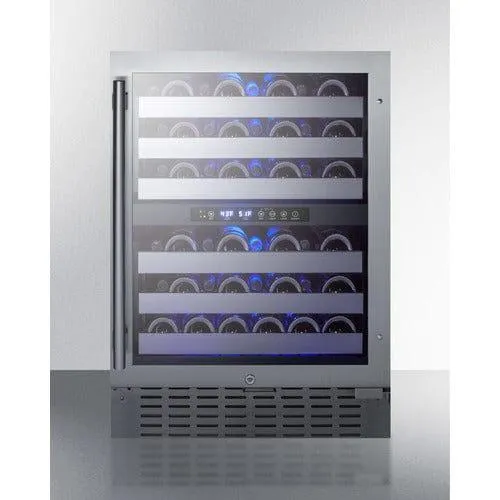

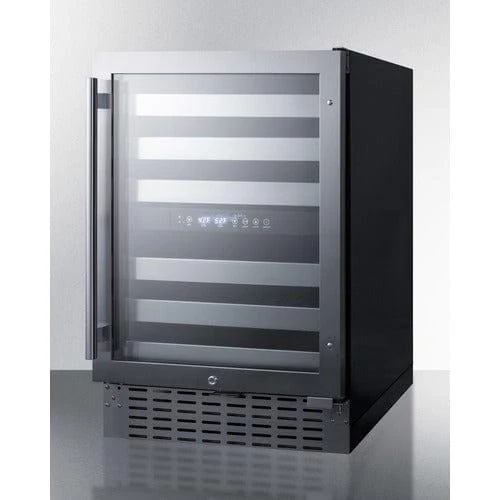

The SWC532BLBIST is a dual zone wine cellar that is ETL-S listed to NSF-7 commercial standards. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. The user-reversible double pane tempered glass door features a seamless stainless steel door trim and pro style handle in stainless steel. A factory-installed lock offers added security and a stainless steel kickplate completes the look.

Inside, the SWC532BLBIST is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper temperature chamber between 41 and 50ºF for white wine, while the lower zone is designed to store red wine between 50 and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for easy loading. Both compartments include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation.

With its advanced user features and versatile design, the SWC532BLBIST makes a great addition to any setting looking to store wine in modern style. This unit can be paired with the SCR2466B beverage cooler for a matching set.

SPECIFICATIONS

Overview
Height of Cabinet	34.25" (87 cm)
Width	23.5" (60 cm)
Depth	23.38" (59 cm)
Depth with Handle	25.38" (64 cm)
Depth with door at 90°	45.75" (116 cm)
Bottles	46 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	113.0 lbs. (51 kg)
Shipping Weight	175.5 lbs. (80 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101063126
Wine Cellar
Number of Zones	2
Door Swing	RHD
Reversible	Yes
Shelf Type	Wire
Shelf Qty	6
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.23 oz.
High Side PSI	150.0
Low Side PSI	50.0
Interior Height 1	11.63" (30 cm)
Interior Width 1	20.5" (52 cm)
Interior Depth 1	18.0" (46 cm)
Compressor Step Depth	6.0" (15 cm)
Level Legs	2
Temperature Range	41 to 64ºF
Interior Height 2	11.88" (30 cm)
Interior Width 2	20.5" (52 cm)
Interior Depth 2	18.0" (46 cm)

AVAILABLE UPGRADES

Door
T4 Door Tint T3 Door Tint T2 Door Tint T1S Door Tint T1 Door Tint
Exterior
LHD - Left hand door swing

FEATURES

Commercially approved

ETL-S listed to NSF-7 standards for use in commercial applications

Built-in capable

Front-breathing design allows this unit to be installed under counters

Commercial shelving design

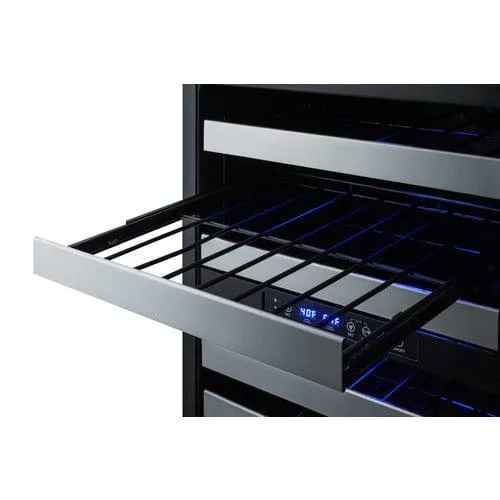

Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

Full-extension shelving

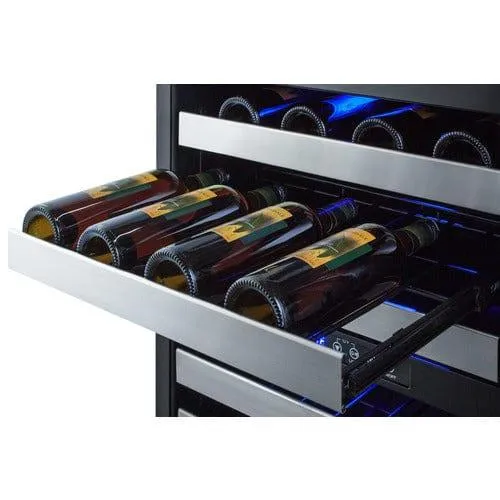

Shelves move smoothly on ball-bearing glides for easier loading and unloading

Two temperature zones

Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F

Digital control panel

Easy temperature management with electronic controls located inside

Versatile readout

Temperature viewable in Celsius or Fahrenheit

Automatic defrost

Reduced maintenance with auto defrost system

Stainless steel door frame

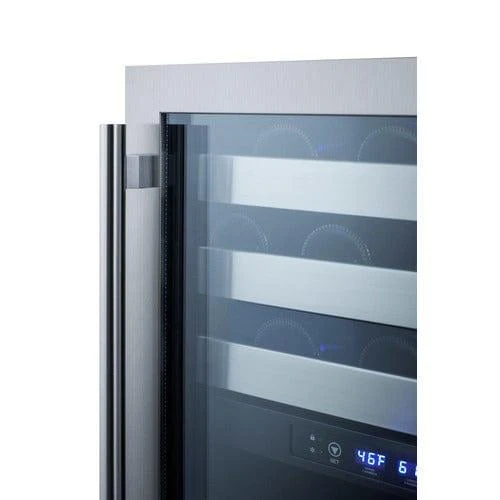

Single-piece door trim offers a more deluxe look

Professional handle

Stainless steel handle with solid 1" diameter for added style

Double pane tempered glass door

Provides a full display of the interior, with two levels of glass for added protection

Interior lighting

Recessed LED lighting in both compartments brings striking blue illumination to your collection

Factory installed lock

Keyed lock for secure interior, with two keys included

Reversible door

User-reversible door swing makes it easy to best accommodate your setting

Fully finished black cabinet

Allows the unit to be used freestanding

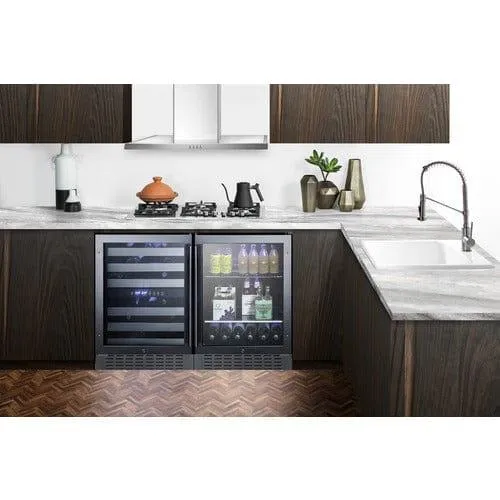

Matching beverage center available

Pairs perfectly with the SCR2466B

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

HTS CODE: 8418.50.0080

Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door
