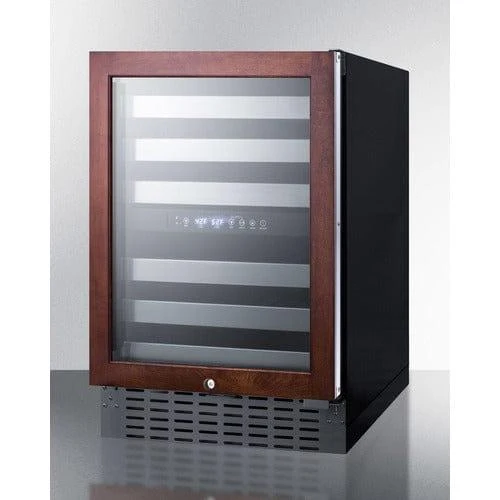

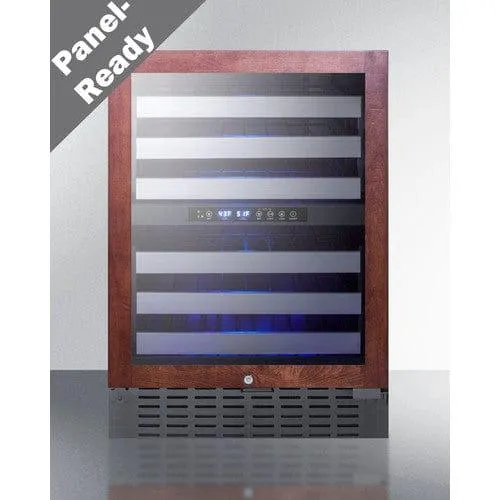

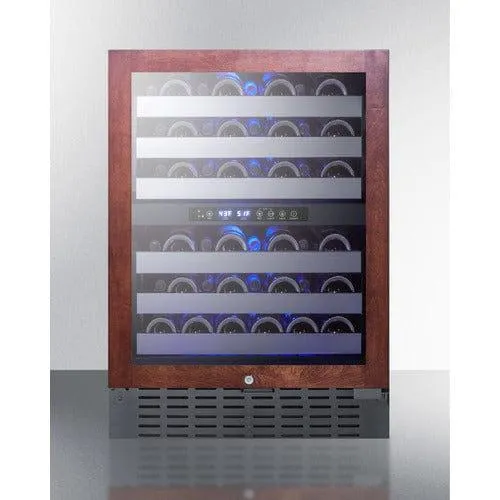

Summit 24" Wide Built-In Wine Cellar SWC532BLBISTPNR

Panel-ready door trim lets you customize your unit for the perfect look
Summit's extensive selection of built-in undercounter wine cellars includes elegant choices that let you achieve a custom look ideal for any space.

The SWC532BLBISTPNR is a dual zone wine cellar sized for 24" spaces. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. The double pane tempered glass door features a seamless stainless steel trim designed to accept overlay panels, allowing you to match the wine cellar to your own cabinetry. Users provide their own handle to complete the custom look. A factory-installed lock offers added security and a stainless steel kickplate completes the look. This unit ships with a right hand door swing. If you require the door to open from the other side, add option "LHD."

Inside, the SWC532BLBISTPNR is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper temperature chamber between 41 and 50ºF for white wine, while the lower zone is designed to store red wine between 50 and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for easy loading. Both compartments include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation.

With its advanced user features and versatile design, the SWC532BLBISTPNR makes a great addition to any setting looking to store wine in modern style. This unit can be paired with the SCR2466BPNR beverage cooler for a matching set.

SPECIFICATIONS

Overview
Height of Cabinet	34.25" (87 cm)
Width	23.5" (60 cm)
Depth	23.38" (59 cm)
Depth with door at 90°	45.75" (116 cm)
Bottles	46 bottles
Defrost Type	Automatic
Door	Glass/Panel-Ready Frame
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	113.0 lbs. (51 kg)
Shipping Weight	175.5 lbs. (80 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101067094
Wine Cellar
Number of Zones	2
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Wire
Shelf Qty	6
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.23 oz.
High Side PSI	150.0
Low Side PSI	50.0
Interior Height 1	11.63" (30 cm)
Interior Width 1	20.5" (52 cm)
Interior Depth 1	18.0" (46 cm)
Compressor Step Depth	6.0" (15 cm)
Level Legs	2
Temperature Range	41 to 64ºF
Interior Height 2	11.88" (30 cm)
Interior Width 2	20.5" (52 cm)
Interior Depth 2	18.0" (46 cm)

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing Extra key for IF door
Door
T1 Door Tint T1S Door Tint T2 Door Tint T3 Door Tint T4 Door Tint

FEATURES

24" Dual Zone Wine Cellar

Undercounter wine cellar with a panel-ready glass door in a 24" footprint with evenly split temperature zones

Built-in capable

Front-breathing design allows this unit to be installed under counters

Panel-ready door trim

Door frame can be customized with an overlay panel to best match your own cabinetry style (panel size: 27 5/8" H x 23" W at 3/4" thick)

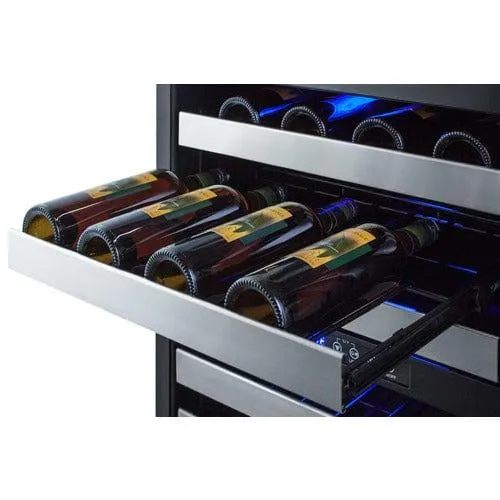

Advanced shelving

Black wire shelves with oversized stainless steel front trim for a modern look that's easier to clean than standard wood shelving

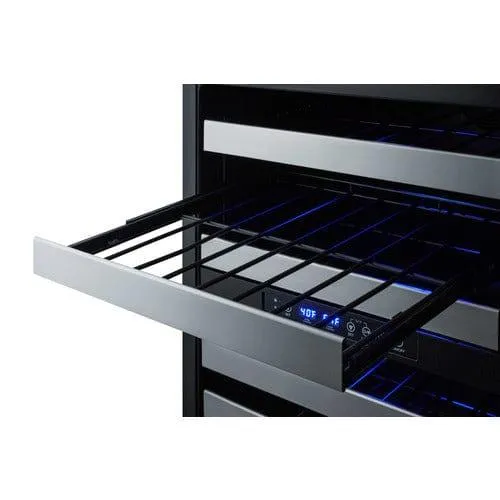

Full-extension shelving

Shelves move smoothly on ball-bearing glides for easier loading and unloading

Two temperature zones

Lower zone for reds has a temperature range of 50º F to 64º F; Upper zone stores whites and sparkling wine between 41º F and 50º F

Digital control panel

Easy temperature management with electronic controls located inside

Versatile readout

Temperature viewable in Celsius or Fahrenheit

Automatic defrost

Reduced maintenance with auto defrost system

Double pane tempered glass door

Provides a full display of the interior, with two levels of glass for added protection

Interior lighting

Recessed LED lighting in both compartments brings striking blue illumination to your collection

Factory installed lock

Keyed lock for secure interior, with two keys included

Factory-reversible door swing

Unit ships with a right hand door swing. For a left hand door swing, order with option "LHD"

Fully finished black cabinet

Allows the unit to be used freestanding

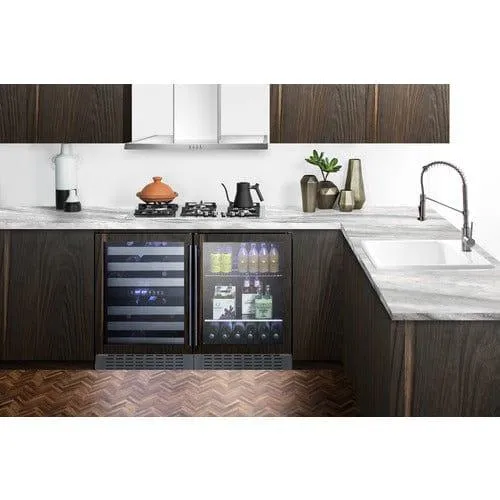

Matching beverage center available

Pairs perfectly with the SCR2466BPNR

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
