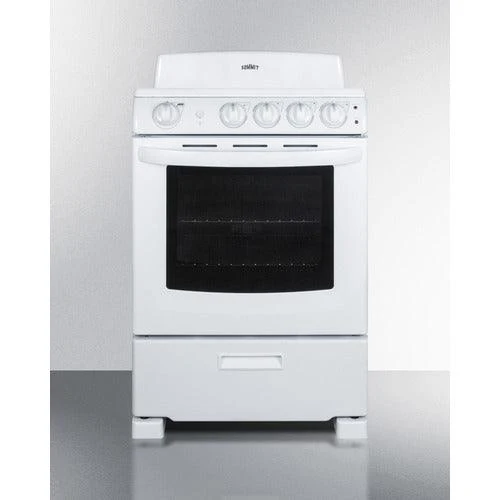

Summit 24" Wide Electric Coil Range RE2411W

Made in North America in a slim 24" width ideal for apartment kitchens

SUMMIT brings outstanding value to small kitchens with fully featured electric ranges in 24" wide fits.

Made in North America, the RE2411W is a 220V electric range designed for 24" wide spaces. One 8" and three 6" coil burners include removable chrome drip pans for easy cleaning. For added safety, each coil is equipped with a sensor that will automatically cycle the element off if it reaches dangerous flashpoint temperatures. Heating will resume automatically. All cooking controls are located upfront on push-to-turn knobs for safe and easy use. Indicator lights illuminate when the burners and oven are on.

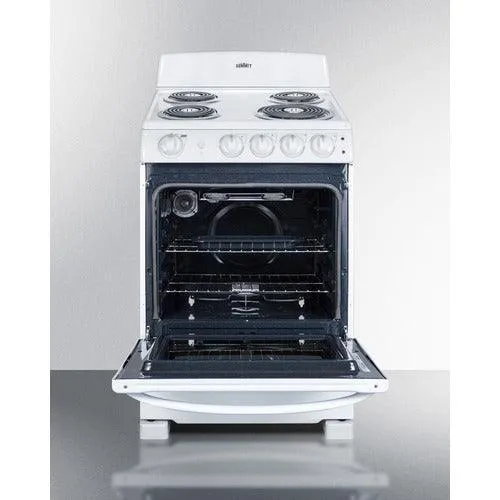

The RE2411W features a large oven window with an interior light to make it easy for users to monitor their cooking. Inside, the 2.9 cu.ft. interior is made from durable porcelain and includes two adjustable racks. The waist-high broiler is conveniently located inside, letting you finish your cooking without transferring contents to an inconvenient drop-down compartment on the floor. The lower compartment is a slide-out storage drawer for added convenience.

The RE2411W comes in a white exterior finish with color-matched knobs and handle. With its slim fit and user-friendly features, this unit is the ideal choice for space-challenged kitchens on a budget. For more options, including smooth-top ranges and 20" wide choices, browse our website.

Note: this item replaces the RE241W.

SPECIFICATIONS

Overview
Height of Cabinet	42.0" (107 cm)
Width	23.5" (60 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.75" (65 cm)
Depth with door at 90°	43.25" (110 cm)
Door	White
Cabinet	White
US Electrical Safety	UL
Voltage/Frequency	220 V AC/60 Hz
Weight	135.0 lbs. (61 kg)
Parts & Labor Warranty	1 Year
UPC	761101058290
Electric Range
Oven Capacity	2.9 cu.ft. (82 L)
Cooktop Surface	Metal
Element Type	Coils
Number of Elements	4
Element #1 Size	8.0" (20 cm)
Element #1 Wattage	2400.0
Element #2 Size	6.0" (15 cm)
Element #2 Wattage	1250.0
Element #3 Size	6.0" (15 cm)
Element #3 Wattage	1250.0
Element #4 Size	6.0" (15 cm)
Element #4 Wattage	1250.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Backguard	Yes
Cleaning Type	Manual
Oven Rack Qty	2
Oven Window	Yes
Oven Interior Height	15.0" (38 cm)
Oven Interior Width	20.0" (51 cm)
Oven Interior Depth	17.5" (44 cm)
Power Source	220V
Storage Compartment	Yes
Broiler Location	Inside Oven

AVAILABLE UPGRADES

Exterior
RangeCord4P - Installed 4-pronged cord RangeCord3P - Installed 3-pronged cord

FEATURES

24" width

Perfectly sized for apartments and smaller home kitchens

Storage drawer

Lower compartment offers the perfect space-saving storage solution for pots and pans

Oven window

Large window makes it easier to monitor your cooking

Oven light

Interior light included for easy viewing

Waist-high broiler

Broiler is located inside the oven, making it easier to use

Backsplash

High backing prevents stovetop contents from splashing up or boiling over and staining back walls

Four cooking zones

Surface features one 8" and three 6" coil elements to accommodate a range of sizes and cooking needs

Safety elements

Designed to comply with the latest UL safety standards, each coil element is equipped with a sensor to cycle off if the temperature nears the flashpoint. Coils will resume heating shortly after, causing little interruption to your cooking

Upfront controls

Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments

Chrome drip pans

Each element includes a removable chrome pan for easier cleaning

Textured cabinet

Fully finished white cabinet constructed from steel

Color matched knobs & handle

White-on-white design for an attractive look ideal for any kitchen

Indicator lights

Control panel includes an 'on' light for the oven and burners for added safety when using the range

Safety brake system for oven racks

Sliding racks will stay in your oven with special brake mechanism

Push-to-turn knobs

To prevent accidents, knobs require a small amount of force when turning

Cord not included

Compatible with standard 40 amp 3 or 4-wire range cords

ADA compliant design

Upfront controls and easy-to-operate knobs offer easier accessibility
