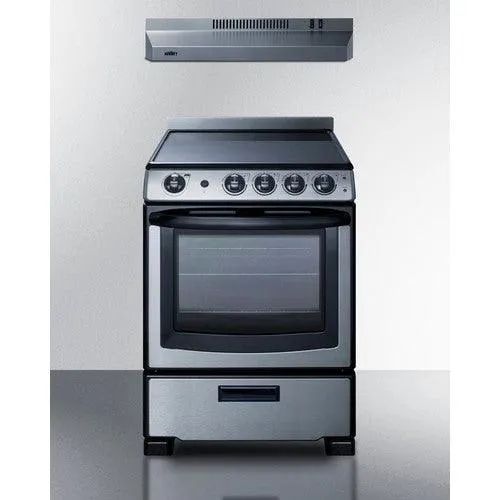

Summit 24" Wide Electric Range & Convertible Hood REXH24RSS

Small kitchen set includes our 24" wide deluxe smooth-top electric range and a matching convertible range hood in stainless steel

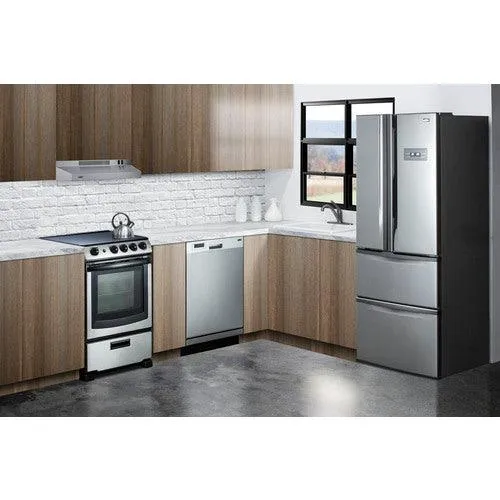

Summit lets you create the perfect small kitchen with our 24" wide range and hood sets.

The REXH24RSS combines our popular REX2451SSRT North American-made smooth-top electric range with our convertible H24RSS range hood. Ideal for apartments, this set offers versatile installation  options and an attractive finish in black and stainless steel.

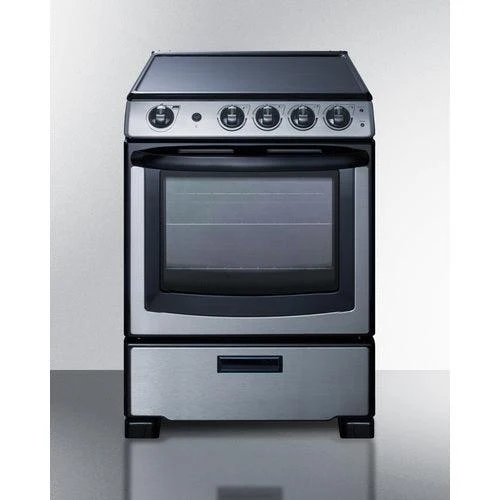

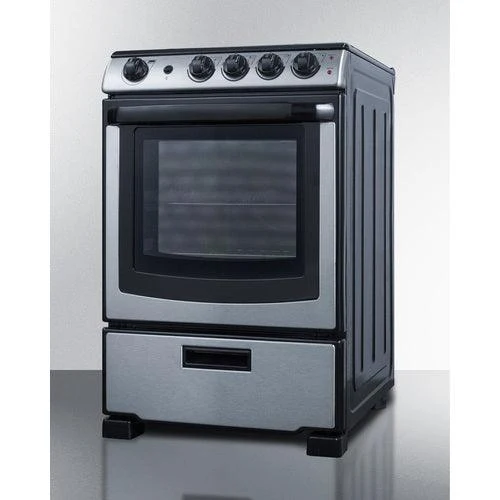

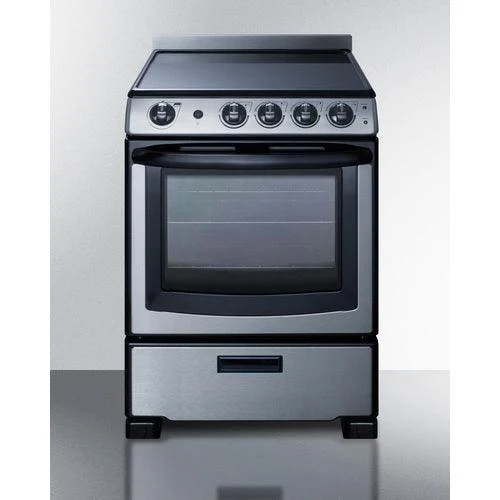

The REX2451SSRT is a 220V electric range sized at just under 24" wide. The front manifold, oven door, and lower drawer feature a stainless steel finish, with a black trimmed oven window and handle for a modern look. The versatile design includes a removable 2" high stainless steel backguard, allowing you the choice of a standard range style or a slide-in look with a flat surface that allows you to better integrate the unit with your own backsplash design. For added space savings, the REX2451SSRT features a slide-out drawer, perfect for storing your pots and pans and freeing up more kitchen space.

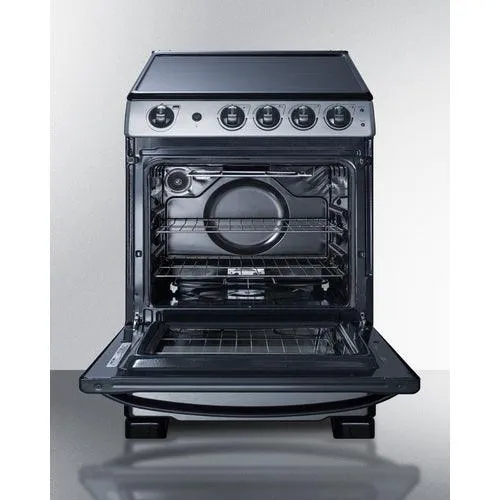

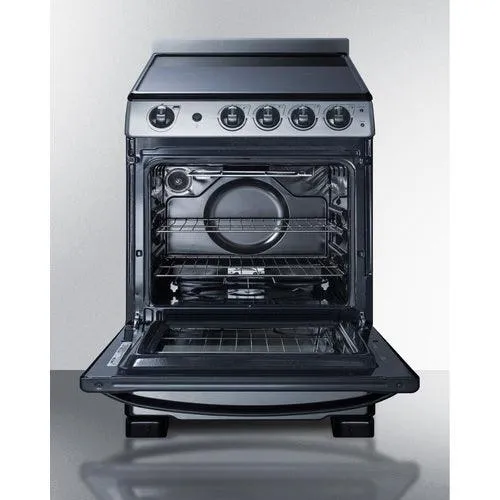

The smooth ceramic glass surface includes two 2000W elements to accommodate larger pots and pans, as well as two standard 1500W elements and a hot surface indicator light for added safety. Inside, the REX2451SSRT features a large 2.9 cu.ft. oven made from durable porcelain enamel. The waist-high broiler function is easy to use, with slide-out oven racks that can be adjusted in four different glide positions for the best fit. We include a small two-piece porcelain broiler tray with a grill cover. The large oven window and interior light make it easy to monitor your cooking.

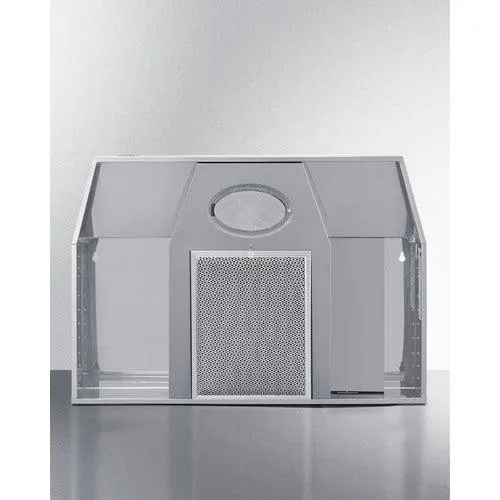

The H24RSS range hood ships set for ductless/recirculating use in kitchens without external exhaust options. It can be converted for ducted operation (rear or top venting) in one quick step. We include  an aluminum mesh grease filter, as well as an activated carbon filter for recirculating applications. A pre-installed light bulb lets you illuminate your cooking surface with a simple rocker switch light. The fan has a high and low setting to best meet your ventilation needs. Stainless steel construction completes the look and complements the stove.

The REXH24RSS ships together on one pallet. For a convertible gas stove and hood combination, see the RGH24RSS.

SPECIFICATIONS

Overview
Height of Cabinet	36.5" (93 cm)
Width	23.75" (60 cm)
Depth	24.25" (62 cm)
Depth with Handle	26.25" (67 cm)
Depth with door at 90°	43.5" (110 cm)
Door	Black/SS
Cabinet	Black
US Electrical Safety	UL
Amps	40.0
Voltage/Frequency	220 V AC/60 Hz
Weight	160.0 lbs. (73 kg)
Parts & Labor Warranty	1 Year
UPC	761101088013
Electric Range
Oven Capacity	2.9 cu.ft. (82 L)
Cooktop Surface	Glass
Element Type	Glasstop
Number of Elements	4
Element #1 Size	8.0" (20 cm)
Element #1 Wattage	2000.0
Element #2 Size	6.0" (15 cm)
Element #2 Wattage	1500.0
Element #3 Size	6.0" (15 cm)
Element #3 Wattage	1500.0
Element #4 Size	8.0" (20 cm)
Element #4 Wattage	2000.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Backguard	Yes
Cleaning Type	Manual
Oven Rack Qty	2
Oven Window	Yes
Oven Interior Height	15.25" (39 cm)
Oven Interior Width	19.0" (48 cm)
Oven Interior Depth	17.5" (44 cm)
Power Source	220V
Storage Compartment	Yes
Broiler Location	Inside Oven

FEATURES

Range/hood set

Includes our REX2451SSRT smooth-top electric range with oven and our H24RSS convertible range hood to create a fully functional cooking and ventilation station in small kitchens

24" width

Perfectly sized for apartments and smaller home kitchens

Under cabinet range hood in stainless steel

Low profile design offers a classic way to finish your kitchen, with a complete stainless steel exterior with an easy-to-match horizontal grain

Convertible hood

Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

Easy 1-step conversion

Hood ships pre-set for recirculating mode but can be converted for ducted use in less than a minute

Versatile top or rear exhaust

Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)

Filters included

Hood ships with a removable easy-to-clean aluminum mesh filter to capture grease, and a charcoal filter to absorb odors when using the hood in recirculating mode

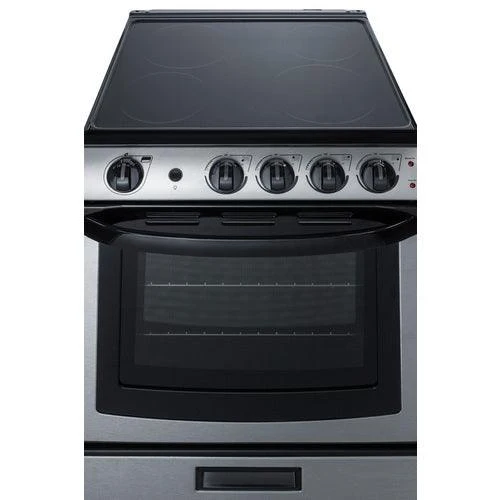

Smooth ceramic glass top

Smooth cooking surface ensures improved safety and easy cleanability

Oven window with light

Easier monitoring of your cooking with an oven window and on/off light

Storage drawer

Save even more space by storing your pots and pans in this pull-out compartment

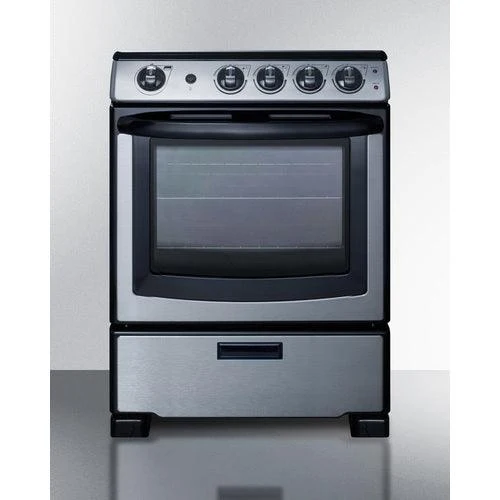

Removable backguard

Unit ships with low stainless steel backguard but can be easily converted to a traditional slide-in style for a more integrated look

Waist-high broiler

Broiler is located inside the oven, making it easier to use

Upfront controls

Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments

Push-to-turn knobs

To prevent accidents, knobs require a small amount of force when turning

Four cooking zones

Surface features two 8" and two 6" elements to accommodate a range of sizes and cooking needs

Safety burners

Cooking elements will cycle off before reaching dangerous flashpoint temperatures to prevent cooking fires, and will cycle back on to resume heating

Stainless steel finish

Oven door, storage drawer, and control panel feature a stainless steel finish

Adjustable racks

Includes two oven racks that can be adjusted to accommodate a variety of sizes when baking or broiling

Safety brake system for oven racks

Sliding racks will stay in your oven with special brake mechanism

Hot surface indicator

Indicator light shows if the cooking surface is still too hot to touch

Indicator lights

Control panel includes an 'on' light for the oven and burners for added safety when using the range

Porcelain construction

Oven interior features high quality porcelain construction for long-lasting durability

Anti-tip bracket

Included for user installation to help prevent accidents

Compact broiler tray

Two-piece pan and cover included

Cord not included

Compatible with standard 40 amp 3 or 4-wire range cords
