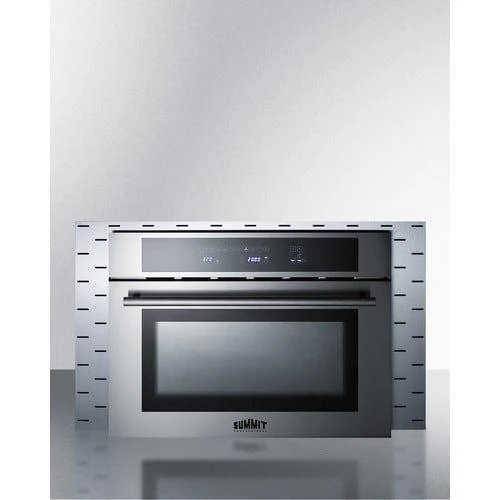

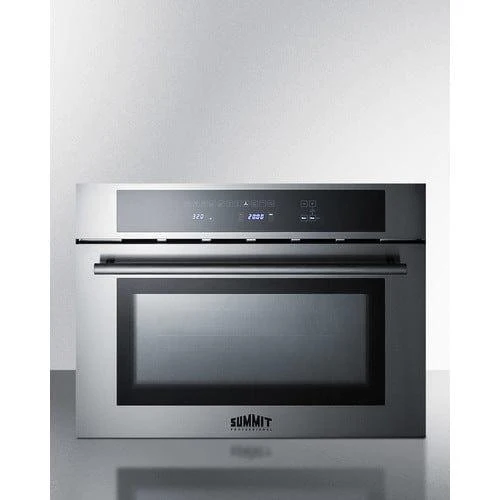

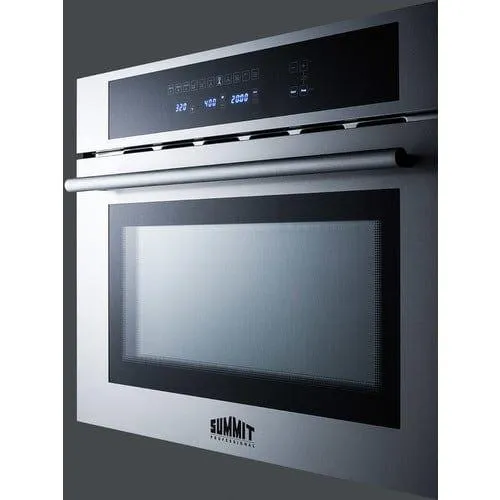

Summit 24" Wide Electric Speed Oven CMV24

Combines a microwave, convection oven, and grill in one elegant 24" fit

Enjoy complete cooking convenience in modern European style with Summit's CMV24 speed oven.

Designed for built-in installation, the CMV24 meets all of your cooking needs in just 24" of width. This unit can be installed in 22" W x 17 5/8" H wall cavities, as well as under the counter to make the best use of your kitchen space. The door and manifold feature sleek stainless steel construction for easy cleaning, with a matching handle to complete the modern look. The double pane glass door comes with an attractive tint and jet black trim to match the digital touch control panel.

Enjoy easy cooking with eleven different functions to cover all of your heating needs. The microwave setting can be run at 200W, 400W, 600W, 800W, or 1000W, as well as being combined with the broiler or Hot-Air function to ensure faster cooking that achieves the taste and texture you want for your dishes. You can also use the CMV24 as a standard electric oven complete with options for broiling and European style convection cooking. Defrosting options let you choose a manual setting by time or an automatic setting based on the weight and type of your food.

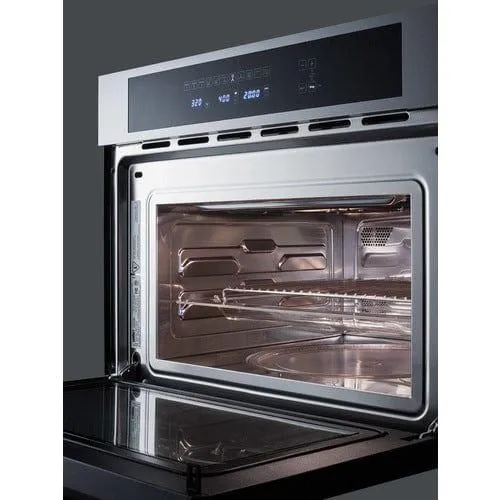

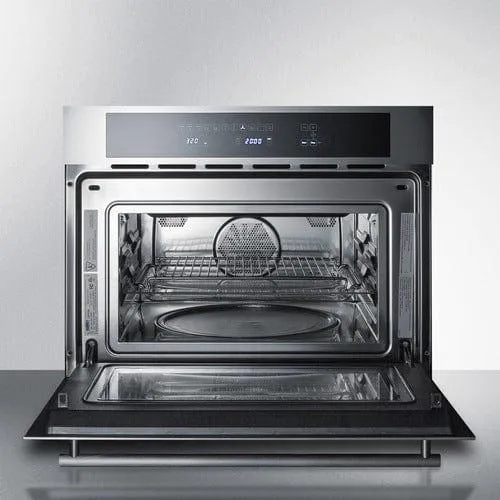

Inside, the CMV24 is constructed from stainless steel, with a removable glass turntable that sits flat inside. This unit ships with a glass baking tray and grill trivet.

With its ideal size, modern style, and advanced technology, the CMV24 is the perfect way to bring full service cooking convenience to space-challenged kitchens.

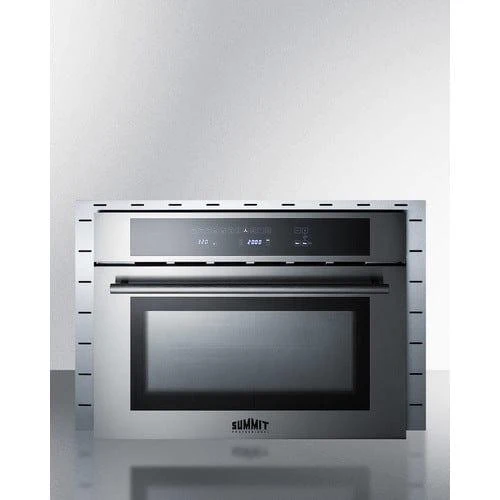

NOTE: This unit is 240V and requires installation to be completed by a qualified professional. We also offer trim kits to allow installation in wider cabinet openings. See the TrimKitCMV27 for 27" widths and TrimKitCMV30 for 30".

SPECIFICATIONS

Overview
Height of Cabinet	18.0" (46 cm)
Width	23.5" (60 cm)
Depth	21.88" (56 cm)
Depth with Handle	23.75" (60 cm)
Depth with door at 90°	34.75" (88 cm)
Capacity	1.34 cu.ft. (38 L)
Door	Stainless Steel
Cabinet	-
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	20.0
Voltage/Frequency	240 V AC/60 Hz
Weight	80.0 lbs. (36 kg)
Parts & Labor Warranty	1 Year
UPC	761101048529
Speed Oven
Controls	Digital
Cooking Timer	Yes
Digital Clock	Yes
Oven Cleaning Type	Manual
Oven Rack Qty	1
Interior Height	8.38" (21 cm)
Interior Width	16.5" (42 cm)
Interior Depth	15.38" (39 cm)
Cutout Height	17.63" (45 cm)
Cutout Width	22.0" (56 cm)
Cutout Depth	21.63" (55 cm)
Number of Cooking Settings	11
Microwave Function	Yes
Wattage	1000W
Microwave Frequency	2450 MHz
Convection	Yes
Convection Power	1600W
Broiler	Yes
Broiler Power	1500W
Turntable Diameter	12.5" (32 cm)
Child Lock	Yes
Window	Yes
Interior Light	Yes

FEATURES

Designed for built-in installation

Cutout dimensions: 17 5/8-17 3/4" H x 22-22 3/8" W x minimum 21 5/8" D

Stainless steel construction

Interior and exterior manifold and door trim are constructed from stainless steel for professional elegance and long-lasting durability

Professional handle

Sleek handle in brushed stainless steel offers an attractive look that matches many popular styles of kitchen cabinetry

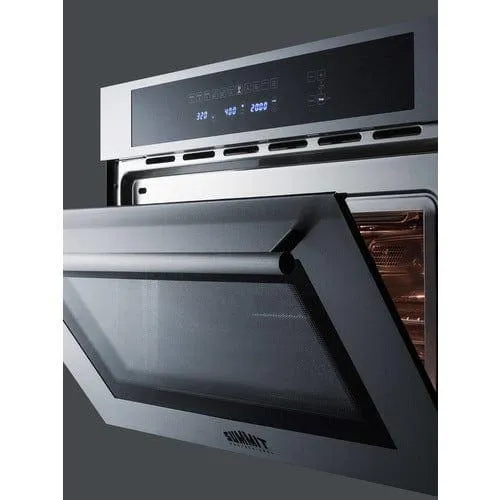

Oven window

Double pane glass door with a tint lets you monitor your cooking

Touch control panel

Intuitive touch controls for easy operation

Microwave function

Can be used for standard microwave cooking with options that allow 220W, 400W, 600W, 800W, and 1000W heating

Quick Start microwave function

Heat quickly without sifting through settings by simply pressing the "Start" key to microwave at maximum power for 30 seconds. Increase the time with each press of the Start key

Microwave + broiler function

Perfect for toasting food, baking cheese-covered dishes such as lasagna, grilling meat, or baking certain pies. Power level options are 200W, 400W, and 600W

Microwave + Hot-Air function

Perfect for rapidly baking foods at standard oven and microwave cooking temperatures

Hot-Air function

Convenient setting is ideal for roasting or baking applications

Broiler + Fan function

Ideal setting for grilling meat or defrosting potatoes

Broiler function

Single touch button lets you activate the broiling function

Defrosting options

Automatic or manual settings to best suit your thawing needs

Auto heating options

Three settings with multiple options let you reheat a variety of items including soup, vegetables, rice, fish, pizza, and deep frozen food by weight to ensure food is served at its best

Two-piece broiler tray included

Glass pan with removable steel grill included to help your broiling and baking needs

Clock

Digital clock displays the time when clock button is touched

Safety lock

Safety "Stop" button lets you lock the control panel to prevent children from accidentally activating the unit

Glass turntable

Removable glass turntable for even heating and easy cleaning

End of cycle alert

Oven will audibly beep when cooking function has finished

Professional installation required

See user manual for wiring specifications
