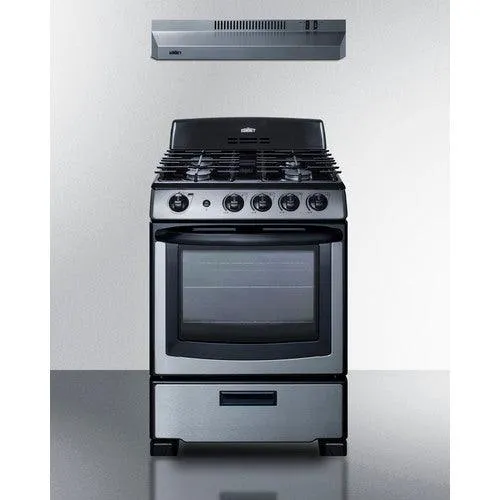

Summit 24" Wide Gas Range & Convertible Hood RGH24RSS

Small kitchen set includes our 24" wide deluxe gas range and a matching convertible range hood in stainless steel

Summit lets you create the perfect small kitchen with our 24" wide range and hood sets.

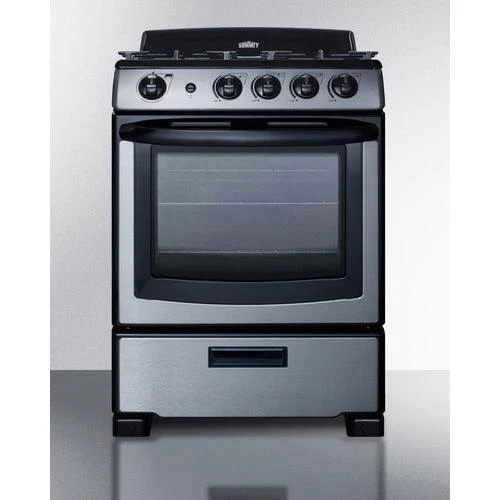

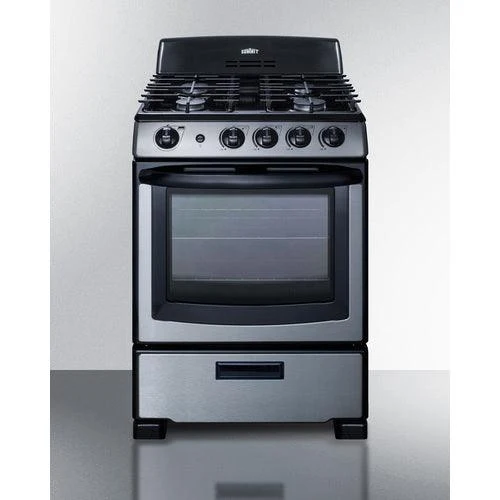

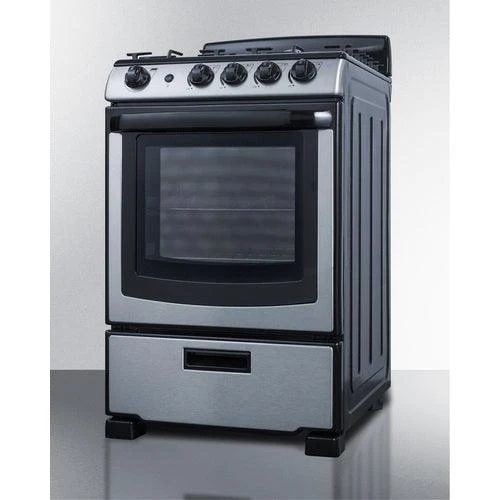

The RGH24RSS combines our popular PRO247SS North American-made gas range with our convertible H24RSS range hood. Ideal for apartments, this set offers versatile installation  options and an attractive finish in black and stainless steel.

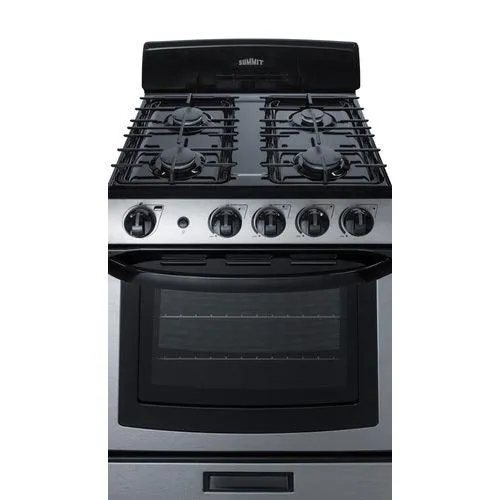

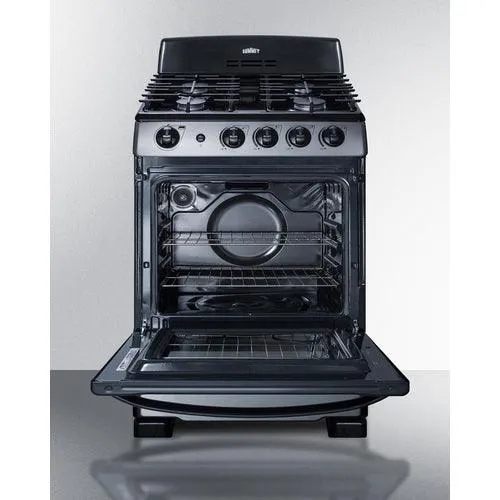

The PRO247SS gas range ships set for natural gas but includes an LP kit to allow easy conversion to propane connections. This unit includes four sealed burners (including a 12,000 BTU power burner) and continuous grates in durable cast iron. Upfront push-to-turn knobs offer easy use and allows you to operate the unit without reaching over hot burners. The large 2.9 cu.ft. oven provides plenty of cooking space, with two adjustable racks included. This unit includes an oven window and interior light to allow a full view of your cooking. It utilizes electronic spark ignition and comes with a pre-installed 3-prong 115V power cord. The oven and drop-down broiler drawer come in stainless steel, with a jet black cooking surface and cabinet.

The H24RSS range hood ships set for ductless/recirculating use in kitchens without external exhaust options. It can be converted for ducted operation (rear or top venting) in one quick step. We include  an aluminum mesh grease filter, as well as an activated carbon filter for recirculating applications. A pre-installed light bulb lets you illuminate your cooking surface with a simple rocker switch light. The fan has a high and low setting to best meet your ventilation needs. Stainless steel construction completes the look and complements the stove.

The RGH24RSS ships together on one pallet. For a smooth-top electric stove and hood combination, see the REXH24RSS.

SPECIFICATIONS

Overview
Height of Cabinet	42.0" (107 cm)
Width	23.63" (60 cm)
Depth	24.5" (62 cm)
Depth with Handle	25.75" (65 cm)
Depth with door at 90°	40.25" (102 cm)
Door	Stainless Steel
Cabinet	Black
US Electrical Safety	CSA
Canadian Electrical Safety	CSA-C
Voltage/Frequency	115 V AC/60 Hz
Weight	130.0 lbs. (59 kg)
Parts & Labor Warranty	1 Year
UPC	761101088006
Gas Range
Ignition	Spark
LP Convertible	Yes
Oven Capacity	2.9 cu.ft
Burner Type	Sealed
Number of Burners	4
Grate Material	Cast Iron
Burner #1 BTU	12000.0
Burner #2 BTU	9500.0
Burner #3 BTU	5000.0
Burner #4 BTU	9500.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Backguard	Yes
Cleaning Type	Manual
Oven Rack Qty	2
Oven Window	Yes
Oven Interior Height	15.25" (39 cm)
Oven Interior Width	19.0" (48 cm)
Oven Interior Depth	17.5" (44 cm)
Broiler Location	Below Oven

FEATURES

Range/hood set

Includes our PRO247SS 4-burner gas range with oven and our H24RSS convertible range hood to create a fully functional cooking and ventilation station in small kitchens

24" Width

Perfectly sized for apartments and smaller kitchens

Convertible hood

Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

Versatile top or rear exhaust

Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)

Easy 1-step conversion for ducted use

Hood ships pre-set for recirculating mode but can be converted for ducted use in less than a minute

Filters included

Hood ships with a removable easy-to-clean aluminum mesh filter to capture grease, and a charcoal filter to absorb odors when using the hood in recirculating mode

Under cabinet range hood in stainless steel

Low profile design offers a classic way to finish your kitchen, with a complete stainless steel exterior with an easy-to-match horizontal grain

Sealed burners

Four sealed burners with removable cast iron tops ensure safer, cleaner cooking

LP Convertible

Unit is set for natural gas but can be converted aftermarket with the included LP kit

Stainless steel finish

Range hood and the stove's door, broiler, and control panel, and handle feature a stainless steel finish for a professional look

Oven window with light

Easier monitoring of your cooking with an oven window and on/off light

Cast iron grates

Two sets of continuous cast iron burner grates offer durable cooking with a lightweight feel for easier cleaning

High output burner

Front right burner features 12,000 BTU output for powerful cooking

Two semi-rapid burners

Two left burners operate at 9,500 BTU to handle most heating needs

Low output burner

Rear right burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items

Upfront controls

Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments

Porcelain construction

Oven interior features high quality porcelain construction for long-lasting durability

Slide-out oven racks

Two racks with four glide positions for flexible cooking

Safety brake system for oven racks

Sliding racks will stay in your oven with special brake mechanism

Broiler compartment

Drop-down lower compartment offers the ideal conditions for broiling

Indicator lights

Control panel includes an 'on' light for the oven and burners for added safety when using the range

Push-to-turn controls

Burner knobs require a small amount of force to turn on for added protection against accidents

Electronic ignition

Spark ignition for added safety

Broiler pan included

Two-piece broiler pan with lid included with each range

High backguard

Solid backing prevents stovetop contents from splashing up or boiling over and staining walls

Power cord included (range)

Standard 3-pronged 115V cord included for the electronic ignition; NOTE: range hood must be hard-wired by a licensed professional

Anti-tip bracket

Safety feature included for user installation to help prevent accidents
