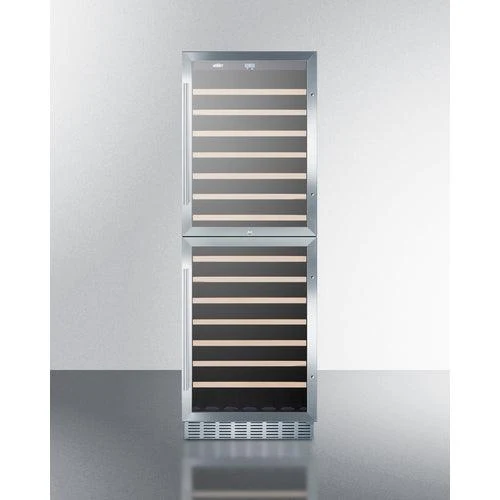

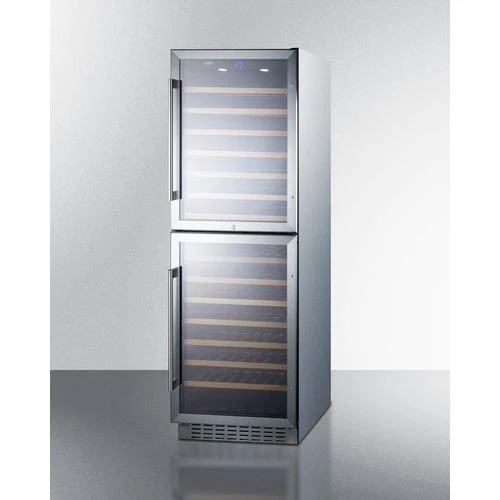

Summit 24" Wide Wine Cellar SWC1875BCSS

Dual zone design to store red and white wine under the right conditions

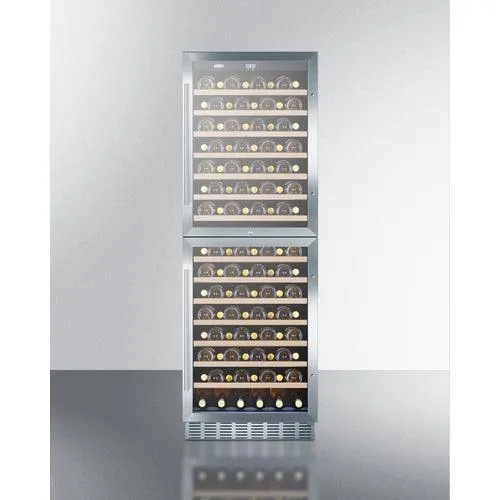

SUMMIT SWC1875BCSS is a built-in capable two-zone wine cellar designed to store up to 118 bottles.

Sized with a convenient 24" footprint, the SWC1875BCSS features a front-breathing system for built-in installation and a fully finished stainless steel wrapped to cabinet to also allow freestanding use. The two separate temperature zones include their own reversible stainless steel trimmed glass door, with pro style handles and front locks for added security. A stainless steel kickplate completes the professional look.

Inside, the SWC1875BCSS includes 14 slide-out wooden shelves to properly hold bottles. White and sparkling wine is best stored in the upper compartment, with reds preserved at a warmeer temperature below. Store up to 118 standard 750ml Bordeaux style bottles, or 118 wider Burgundy style bottles (generally used for Chardonnay or Pinot Noir). If storing champagne, the top shelf can hold 8 bottles. Recessed LED lighting offers an attractive and efficient display and the digital thermostat ensures easy and intuitive temperature management. The temperature can be displayed in Celsius or Fahrenheit for added convenience.

With its user-friendly features and elegant design, the SWC1875BCSS is the perfect way to keep your collection stored and displayed at its best.

SPECIFICATIONS

Overview
Height of Cabinet	69.63" (177 cm)
Width	23.63" (60 cm)
Depth	22.75" (58 cm)
Depth with Handle	24.63" (63 cm)
Depth with door at 90°	44.75" (114 cm)
Bottles	118 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.7
Voltage/Frequency	115 V AC/60 Hz
Weight	200.0 lbs. (91 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101059228
Wine Cellar
Number of Zones	2
Door Swing	RHD
Reversible	Yes
Shelf Type	Wood
Shelf Qty	14
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.07 oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Height 1	27.75" (70 cm)
Interior Width 1	20.0" (51 cm)
Interior Depth 1	17.5" (44 cm)
Temperature Range	41°F to 55°F (upper zone); 55°F to 72°F (lower zone)
Interior Height 2	31.0" (79 cm)
Interior Width 2	20.0" (51 cm)
Interior Depth 2	17.5" (44 cm)
Sabbath Mode	Yes

AVAILABLE UPGRADES

Exterior
Alarm/Thermometer - Factory-installed alarm with external temperature readout LHD - Left hand door swing Latch - Factory-installed door latch requires manual release to open unit
Door
T4F Door Tint T3F Door Tint T2F Door Tint T1SF Door Tint

FEATURES

Built-in capable

Front-breathing unit can be integrated into your cabinetry; 1/4" of space required around sides and top

Stainless steel wrapped cabinet

Exterior features 304 grade stainless steel for true luxury built to last

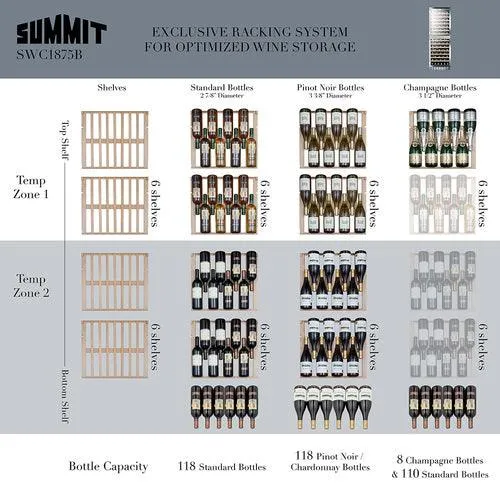

Large capacity

Stores up to 118 bottles of standard Bordeaux style or wider Burgundy style bottles

Two temperature zones

Chill white and sparkling wine in the upper zone while preserving your reds at a warmer temperature below

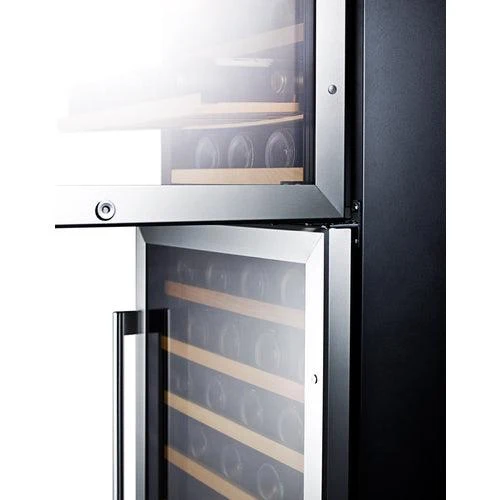

Two reversible glass doors

Elegant tint with user-reversible convenience and stainless steel trim

Digital thermostat

Located inside the unit, the electronic thermostat allows easy temperature adjustment with a display in Celsius or Fahrenheit

Factory installed lock

Keyed lock secures both sections

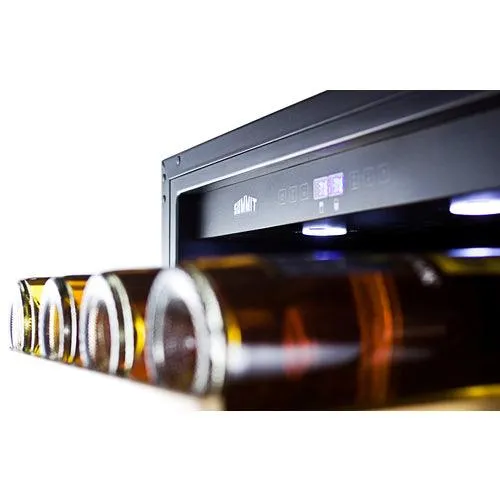

Recessed LED lighting

Attractive and energy efficient illumination for your collection

Slide-out wooden shelving

14 easy gliding shelves

Automatic defrost

Reduced maintenance with auto defrost system

Professional handles

Sturdy chrome handles add a professional look

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Stainless steel kickplate

An added touch of elegance

Temperature range

40ºF to 72ºF; Upper zone is ideal for white and sparkling wine served at a cooler temperature; Lower compartment is better suited for holding reds at a warmer temperature

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
