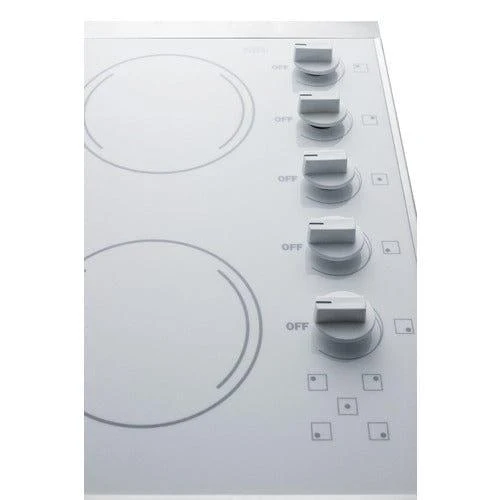

Summit 27" Wide 230V 5-Burner Radiant Cooktop CRS5B14W

Made in the USA with genuine Schott Ceran® glass

SUMMIT introduces a new series of smooth-top electric cooktops sized for unique kitchen counter spaces, all made in the USA with the industry's best elements.

The CRS5B14W is a 230V 6600W cooktop, with all burner elements made by E.G.O in Germany. This unit includes one large 8" 1800W element located in the center to accommodate large cooking vessels. Four standard 1200W 6 1/2" burners meet most heating needs. Push-to-turn knobs offer added safety, with an attractive matte white finish. Each burner includes an indicator light.

The smooth surface is made from ceramic Schott glass in a jet white finish, offering easier cleanup than traditional coil elements. The unit is finished with oversized stainless steel trim for a modern look. Sized with an exterior width of 27" and a conveniently shallow 20 1/2" depth, the CRS5B14W can fit in cutouts 25 1/4" W x 18 3/4" deep.

Designed and manufactured in the USA, the CRS5B14W is the perfect way to finish any small kitchen space. For this unit in a white glass finish, see the CRS5B13B.

SPECIFICATIONS

Overview
Height of Cabinet	3.13" (8 cm)
Width	27.0" (69 cm)
Depth	20.5" (52 cm)
Cabinet	White
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	25.0
Voltage/Frequency	230 V AC/60 Hz
Weight	35.0 lbs. (16 kg)
Shipping Weight	43.0 lbs. (20 kg)
Parts & Labor Warranty	1 Year
UPC	761101060354
Electric Cooktop
Heating Type	Radiant
Surface	Glass
Element Type	Glasstop
Number of Elements	5
Controls	Dial
Countertop Cutout Width	25.25" (64 cm)
Countertop Cutout Depth	18.75" (48 cm)
Element #1 Size	8.0" (20 cm)
Element #1 Wattage	1800.0
Element #2 Size	6.5" (17 cm)
Element #2 Wattage	1200.0
Element #3 Size	6.5" (17 cm)
Element #3 Wattage	1200.0
Element #4 Size	6.5" (17 cm)
Element #4 Wattage	1200.0
Element #5 Size	6.5" (17 cm)
Element #5 Wattage	1200.0
Power Cord Included	No

FEATURES

27" width

Designed to fit 25.25" W x 18.75" D cutouts

Schott Ceran surface

Smooth ceramic glass cooking surface in a classic white finish

High output burner

Center burner features an 8" diameter for 1800W of cooking power, ideal for larger cooking vessels

Standard burners

Four 6.5" 1200W burners meet most heating needs

E.G.O. burners

Considered by many to be the industry's best cooking technology

Push-to-turn knobs

Controls require a gentle push to help prevent cooking accidents

Indicator lights

Each burner includes an indicator light to show when the unit is on

Stainless steel trim

Stainless steel border adds an extra touch of style

230V operation

Requires professional hardwired installation to 230V power supply
