Summit 30" Under Cabinet Convertible Range Hood H30RSS

Convertible design allows ducted or ductless installation

Summit's under cabinet convertible range hoods offer versatile ventilation solutions for every kitchen space.

Model H30RSS is a 30" wide range hood ideal for apartments and other smaller kitchens. It features an attractive stainless steel finish with a horizontal grain. We include a pre-installed light bulb to illuminate your cooking surface. The 2-speed fan is easily managed by a rocker switch with a high and low ventilation setting.

This hood is convertible for horizontal or vertical ducted ventilation or ductless/recirculating ventilation where no exhaust connection to the outside is available. It ships ready for standard 3 1/4" x 10" rectangular ducting, but it can be used with a round 6" or 7" duct with the addition of a transition (not included). We include a metal mesh filter to catch grease and a charcoal filter to absorb smoke and odors when using in recirculating applications. This unit does not include a power cord and is designed to be hard-wired by a licensed professional.

Additional convertible range hoods are available in 18", 20", 24", and 36" sizes, with more styles and choices coming soon. We also manufacture an extensive selection of 30" wide ranges and cooktops, providing complete kitchen solutions at incredible value. Browse the full Summit product line to explore your options.

SPECIFICATIONS

Overview
Height of Cabinet	5.13" (13 cm)
Width	29.88" (76 cm)
Depth	18.63" (47 cm)
Cabinet	Stainless Steel
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Voltage/Frequency	115 V AC/60 Hz
Weight	12.0 lbs. (5 kg)
Shipping Weight	17.0 lbs. (8 kg)
Parts & Labor Warranty	1 Year
UPC	761101085081
Range Hood
Venting	Convertible
Controls	Dial
Light	Yes
Number of Lights	1
Light Type	Incandescent
Number of Fan Speeds	2
Duct Shape	3"1/4" x 10" rectangular or 6/7" round with transition

FEATURES

Under cabinet range hood

Low profile design offers a classic way to finish your kitchen

30 inch width

Sized for use over 30 inch cooking surfaces (additional sizes available)

Convertible design

Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

Easy 1-step conversion

Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute

Versatile top or rear exhaust

Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)

Stainless steel finish

Durable construction in an attractive style with a horizontal grain

Two-speed fan

High and low setting to allow proper ventilation of your kitchen as needed

Light & bulb included

Includes an incandescent bulb to help illuminate your cooking surface

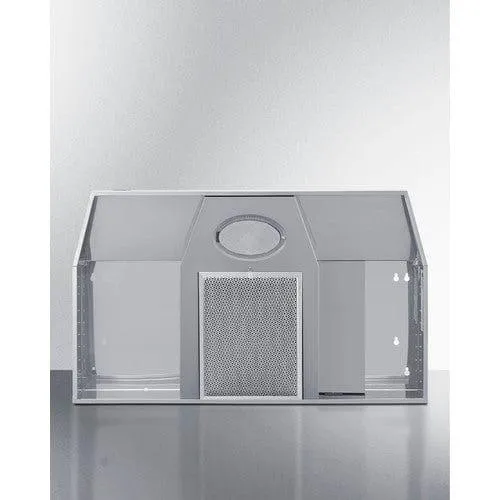

Removable metal grease filter

Easy installation and detaching allows you to properly clean the filter for optimum efficiency

Charcoal filter included

Helps absorb grease and odors when using the hood in recirculating mode

Rocker switch controls

Front-located on/off and high/low switches make it easy to manage the light and fan

Professional installation

Designed to be hard-wired by a licensed professional
