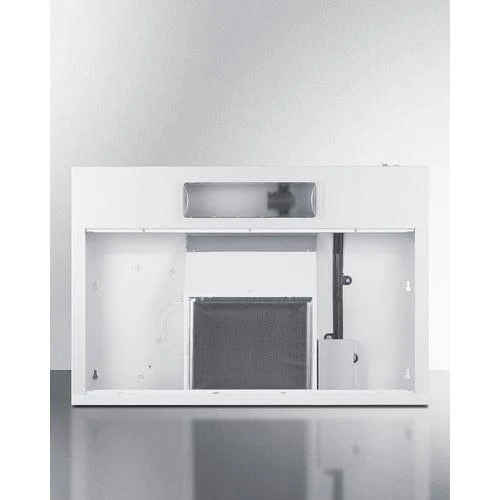

Summit 30" Under Cabinet Convertible Range Hood HC30WW

The Summit 30" Under Cabinet Convertible Range Hood HC30WW is a sleek and stylish addition to any kitchen. This range hood not only clears the air of cooking odors and smoke, but also adds a sophisticated touch to your culinary space. Its under cabinet design allows for easy installation and the convertible feature offers versatile ventilation options. With the Summit 30" Under Cabinet Convertible Range Hood, you can enjoy a clean and fresh kitchen while cooking your favorite meals.

Convertible design allows ducted or ductless installation to best meet your home's needs

Made in North America, Summit's HC series under cabinet convertible range hoods offer versatile ventilation solutions for every kitchen space.

Model HC30WW is a 30" wide range hood ideal. It comes in a clean white finish constructed from 21 gauge galvanized steel for a clean look and durable design. The powerful 2-speed fan is easily managed by a rocker switch with a high and low setting. This unit can operate at 300 CFM for thorough ventilation. Airflow is directed upwards at a slight angle, ensuring smoke and odors won't blow towards the home chef.

This hood ships for ductless/recirculating ventilation (where no exhaust connection to the outside is available) but is convertible for horizontal or vertical ducted ventilation (3 1/4" x 10" rectangular ducting or 7" round, transition required). We include a combination aluminum mesh/charcoal filter to absorb grease, smoke, and odors. This unit accepts a standard light bulb (not included). Both the filter and lens cover snap in place, with no tools required to change out as needed. Note: this hood does not include a power cord and is designed to be hard-wired by a licensed professional.

In addition to this range hood, Summit manufactures this series in additional colors, as well as shell hoods, wall-mounted European hoods, and island hoods in a range of styles. Browse the full Summit product line to explore your options.

SPECIFICATIONS

Overview
Height of Cabinet	5.5" (14 cm)
Width	29.88" (76 cm)
Depth	20.0" (51 cm)
Cabinet	White
US Electrical Safety	UL
Canadian Electrical Safety	ULC
Amps	1.7
Voltage/Frequency	115 V AC/60 Hz
Weight	13.0 lbs. (6 kg)
Shipping Weight	19.5 lbs. (9 kg)
Parts & Labor Warranty	1 Year
UPC	761101087122
Range Hood
Installation	Under Cabinet
Venting	Convertible
Controls	Dial
Number of Fan Speeds	2
Maximum Air Movement	300.0 CFM
Sone Rating	6
Duct Shape	3"1/4" x 10" rectangular or 6/7" round with transition

FEATURES

Under cabinet range hood

Low profile design offers classic style to finish your kitchen

30 inch width

Sized for use over 30 inch cooking surfaces (additional sizes available)

Convertible design

Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

Black finish

Matte finish in jet black suits any kitchen space

Easy conversion

Ships pre-set for recirculating mode but can be converted in a few simple steps

Versatile top or rear exhaust

Can be connected to 3 1/4" x 10" vertical or horizontal exterior venting or 7" round vertical (transition required for both)

Angled airflow

Vents are set at a slight upwards angle, ensuring smoke and odors won't be directed towards the user

Powerful ventilation

Can operate at 300 CFM to ensure thorough ventilation of your cooking surface

Durable 21 gauge steel construction

Powder-coated finish over steel that's 53% heavier gauge than most of the industry's under cabinet hoods

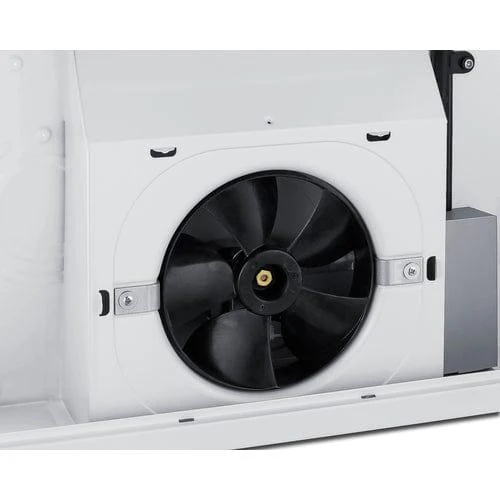

Two-speed fan

High and low setting to allow proper ventilation of your kitchen as needed

Accepts a standard bulb

Designed to hold a standard incandescent light bulb with easy installation and no tools required

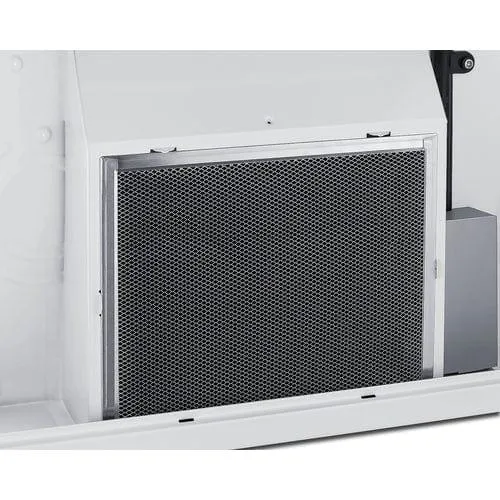

Combination charcoal/aluminum mesh filter

Aluminum filter includes charcoal filler to absorb smoke, grease, and odors for a cleaner kitchen experience

Removable filter

Snap-in design allows you to easily remove the filter for fast replacing as needed

Rocker switch controls

Front-located on/off and high/low switches make it easy to manage the light and fan

Professional installation

Designed to be hard-wired by a licensed professional

Made in North America

TAA compliant
