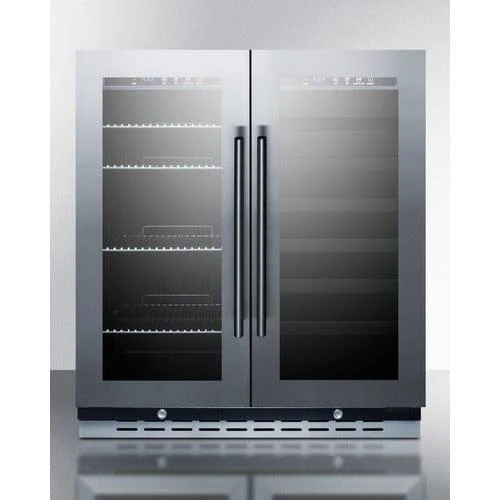

Summit 30" Wide Built-In Wine/Beverage Center SWBV3067B

Seamless stainless steel door trim brings true luxury under the counter

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

The SWBV3067B is a 30" wide wine and craft beer cooler designed for built-in installation under counters. The fully finished black cabinet also allows freestanding use. This unit includes two glass doors with a unique French door swing and seamless stainless steel trim. Both include factory installed locks and professional handles. A stainless steel kickplate completes the look.

Two separate zones feature independent digital thermostats, letting you preserve red wine under warmer temperature conditions while keeping white wine or craft beer at colder temperatures. We provide six wooden wine shelves in a jet black finish and four wire chrome shelves, letting you arrange the shelving configuration to best suit your storage needs. Recessed LED lighting lets you display all items under an attractive, energy efficient glow.

With a professional look and innovative design, SUMMIT SWBV3067B is a unique and versatile addition to any home. For a similar unit designed solely for wine storage, see the SWC3066.

SPECIFICATIONS

Overview
Height of Cabinet	34.38" (87 cm)
Width	29.5" (75 cm)
Depth	22.5" (57 cm)
Depth with Handle	24.25" (62 cm)
Depth with door at 90°	36.0" (91 cm)
Capacity	5.8 cu.ft. (164 L)
Bottles	33 bottles
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Amps	1.25
Voltage/Frequency	115 V AC/60 Hz
Weight	132.0 lbs. (60 kg)
Shipping Weight	186.0 lbs. (84 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101055794
Wine Cellar
Number of Zones	2
Door Swing	French
Adjustable Shelves	Yes
Shelf Type	Wire and Wood
Shelf Qty	10
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.06 oz.
High Side PSI	150.0
Low Side PSI	50.0
Interior Height 1	27.38" (70 cm)
Interior Width 1	11.75" (30 cm)
Interior Depth 1	17.5" (44 cm)
Compressor Step Width	11.75" (30 cm)
Compressor Step Depth	5.0" (13 cm)
Level Legs	4
Temperature Range	41 to 64ºF
Interior Height 2	27.38" (70 cm)
Interior Width 2	11.75" (30 cm)
Interior Depth 2	17.5" (44 cm)

AVAILABLE UPGRADES

Door
T4F Door Tint T3F Door Tint T2F Door Tint T1SF Door Tint

FEATURES

Commercially approved

ETL-S listed to ANSI-NSF Standard 7 for use in commercial establishments

Built-in capable

Make the best use of space by installing this unit under the counter and flush with other cabinetry

Fully finished cabinet

Allows the unit to be used freestanding

Dual zone design

Two independent zones allow you to store both red and white wine or craft beer at the proper conditions

Recessed LED lighting

Gentle and energy efficient LED lighting offers an elegant view of stored items

Digital thermostats

Each zone is equipped with electronic temperature controls for easy and intuitive temperature management

Adjustable wooden and chrome shelves

Includes 6 wooden shelves for bottle storage and 4 flat wire shelves to hold craft beer cans or bottles

Professional handles

Sleek stainless steel handles add an elegant touch to any setting

Glass doors

French door swing offers a modern look, with stainless steel door trim for an added accent

Seamless stainless steel trimmed door frame

Single-piece door trim offers a more deluxe look

Factory installed locks

Keyed locks on both zones offer separate security for interior contents

Automatic defrost

Reduced user maintenance with automatic defrost

Fan-forced cooling

Internal fans ensure both interiors have a consistent temperature from top to bottom

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
