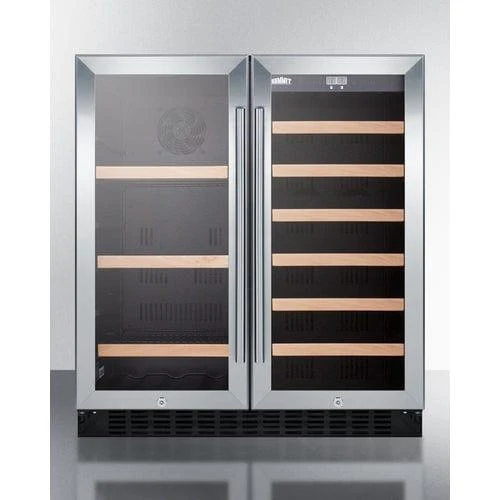

Summit 30" Wide Built-In Wine/Beverage Center SWBV3071

Dual zone design allows you to store craft beer and wine in elegant style

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

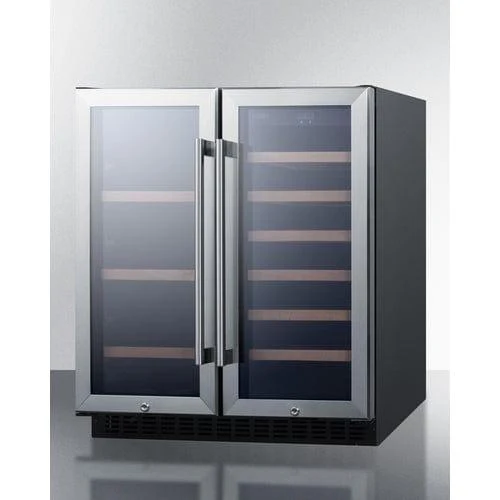

The SWBV3071 is a 30" wide wine and craft beer cooler designed for built-in installation under counters. The fully finished black cabinet also allows freestanding use. This unit includes two stainless steel trimmed glass doors with a unique French door swing. Both include factory installed locks and professional handles. Front locks offer keyed security for both compartments. The sealed back design ensures easier cleanability.

Two separate zones feature independent digital thermostats, allowing you to store craft beer or white wine in the left side while preserving your red wine in the right. The left beverage compartment includes three slide-out black wire shelves with wooden trim to match the six wooden shelves included in the right. Both sections feature a slotted floor to hold additional bottles. The digital control panel features an LED temperature readout in Celsius or Fahrenheit. Recessed LED lighting in a white hue offers an attractive and efficient presentation.

With its attractive style and user-friendly features, the SWBV3071 is a great addition to any home looking to bring versatile beverage storage under the counter.

SPECIFICATIONS

Overview
Height of Cabinet	34.0" (86 cm)
Width	29.5" (75 cm)
Depth	23.5" (60 cm)
Depth with Handle	25.25" (64 cm)
Depth with door at 90°	37.0" (94 cm)
Capacity	5.8 cu.ft. (164 L)
Defrost Type	Automatic
Door	Glass
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.5
Voltage/Frequency	115 V AC/60 Hz
Weight	132.0 lbs. (60 kg)
Shipping Weight	139.0 lbs. (63 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101050423
Wine Cellar
Number of Zones	2
Door Swing	French
Adjustable Shelves	Yes
Shelf Type	Wire and Wood
Shelf Qty	9
Thermostat Type	Digital
Interior Light	Yes
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.23 oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Height 1	26.38" (67 cm)
Interior Width 1	12.0" (30 cm)
Interior Depth 1	17.5" (44 cm)
Compressor Step Height	3.0" (8 cm)
Compressor Step Width	26.75" (68 cm)
Compressor Step Depth	5.0" (13 cm)
Level Legs	2
Temperature Range	Left side: 36º to 43ºF; Right side: 41º to 72ºF
Interior Height 2	24.75" (63 cm)
Interior Width 2	12.0" (30 cm)
Interior Depth 2	17.5" (44 cm)
Sabbath Mode	Yes

AVAILABLE UPGRADES

Door
T4F Door Tint T3F Door Tint T2F Door Tint T1SF Door Tint

FEATURES

Commercial design

Meets UL-471 commercial standards

Built-in capable

Make the best use of space by installing this unit under the counter

Dual zone design

Two independent zones allow you to store both red and white wine or craft beer at the proper conditions

Digital controls

Interior digital thermostat lets you separately manage the temperature of each section, with a readout viewable in Celsius or Fahrenheit

Generous storage capacity

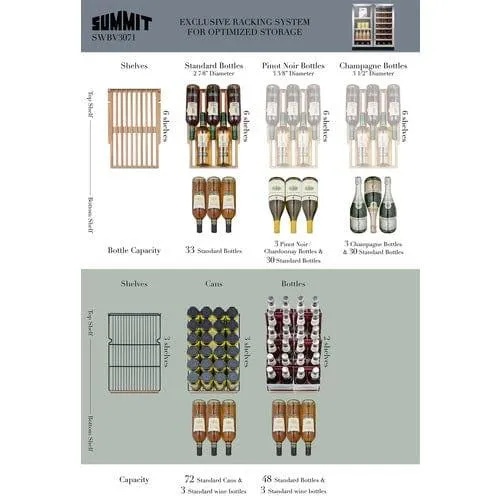

Store up to 33 standard Bordeaux style wine bottles in the right section and up to 72 8 oz. cans or 48 12 oz. bottles in the beverage section. To accommodate wider Burgundy style wine or champagne bottles, you can remove every other wine shelf

Recessed LED lighting

Gentle and energy efficient LED lighting in an attractive white hue offers an elegant view of stored items

Adjustable wooden shelves

Red wine section includes six removable wooden shelves for proper bottle storage

Adjustable beverage shelves

Craft beer section is equipped with three adjustable black wire shelves with an attractive wooden trim to complement the wine section

Slotted floors

Floor is specially designed with slots to allow you to store larger champagne or Burgundy style bottles safely on their sides

Professional handles

Sleek stainless steel handles add an elegant touch to any setting

Glass doors

French door swing offers a modern look, with stainless steel door trim for an added accent

Factory installed locks

Keyed locks on both zones offer separate security for interior contents

Automatic defrost

Reduced user maintenance with automatic defrost

Fan-forced cooling

Internal fans ensure both interiors have a consistent temperature from top to bottom

Sabbath mode

Setting allows you to disable the digital displays, lights, and alarms for religious observance.

High temperature alarm

Audible alarm sounds if the interior temperature rises above the recommended range

Open door alarm

Alarm will sound if either door is left open for over 60 seconds

Temperature memory function

In the event of power loss, the unit will retain its last temperature settings upon power recovery

Sealed back

Space-saving design with no exposed coils in the rear offers easy cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully finished cabinet

Allows the unit to be used freestanding

100% CFC free

Environmentally friendly design without ozone-damaging chemicals

CARB Compliant

Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
