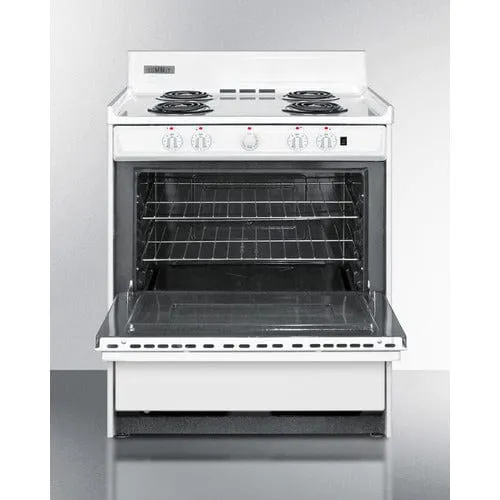

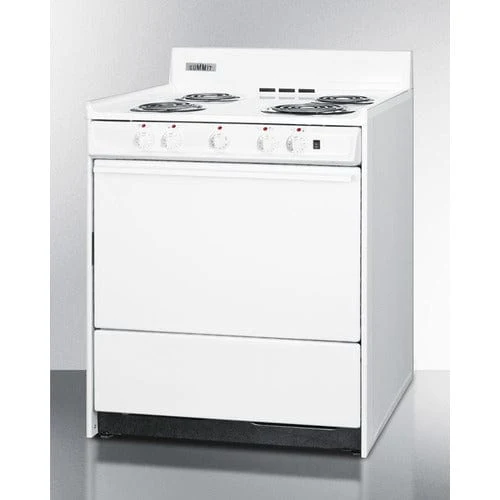

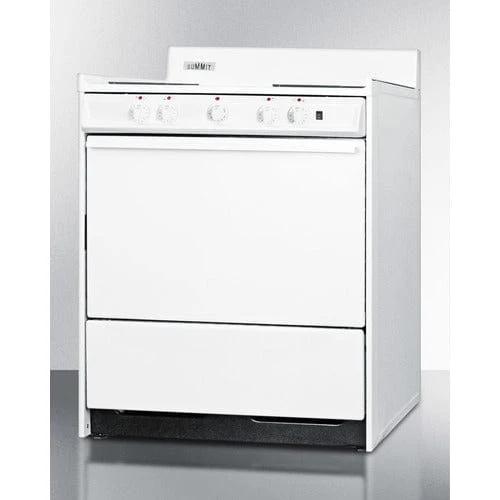

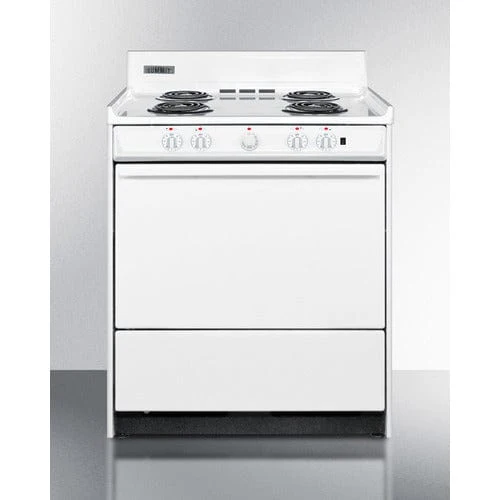

Summit 30" Wide Electric Coil Top Range WEM2171Q

Summit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens.

The WEM2171Q is an apartment-sized 220V electric range featured to meet ADA guidelines and ideal for use in senior living facilities, HUD applications, and other types of community living with added safety needs. It includes a pre-installed 3-prong line cord, as well as individual indicator lights for each cooking element and an interior oven light with an exterior on/off rocker switch. Sized at 30" wide, it has a full-sized 3.7 cu.ft oven interior that can accommodate large trays. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens.

Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric ranges, allowing for a slow but steady heating process that will not cycle off. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. This unit complies with ADA guidelines.

The WEM2171Q comes in a classic white finish to suit any kitchen setting. It has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. Porcelain and steel construction help the unit hold up to years of daily use. We include an anti-tip bracket for added safety.

With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 24", and 36" wide fits.

SPECIFICATIONS

Overview
Height of Cabinet	40.0" (102 cm)
Width	30.0" (76 cm)
Depth	24.0" (61 cm)
Door	White
Cabinet	White
US Electrical Safety	CSA
Voltage/Frequency	220 V AC/60 Hz
Weight	175.0 lbs. (79 kg)
Parts & Labor Warranty	1 Year
UPC	761101019758
Electric Range
Oven Capacity	3.7 cu.ft. (105 L)
Cooktop Surface	Porcelain
Element Type	Coils
Number of Elements	4
Element #1 Size	6.0" (15 cm)
Element #1 Wattage	675.0
Element #2 Size	6.0" (15 cm)
Element #2 Wattage	675.0
Element #3 Size	6.0" (15 cm)
Element #3 Wattage	675.0
Element #4 Size	8.0" (20 cm)
Element #4 Wattage	950.0
Burner Controls	Dial
Oven Controls	Dial
Oven Light	Yes
Backguard	Yes
Cleaning Type	Manual
Oven Rack Qty	2
Oven Interior Height	14.0" (36 cm)
Oven Interior Width	24.0" (61 cm)
Oven Interior Depth	19.0" (48 cm)
Individual Indicator Lights	Yes
Storage Compartment	Yes
Broiler Location	Inside Oven
Oven Door	White
HUD Qualified	Yes

FEATURES

Made in the USA

Designed and constructed domestically

Advanced safety features

Low wattage elements, individual indicator lights, and additional features to ensure added safety in senior living, HUD kitchens, and other group facilities

30 inch wide range

Standard size ideal for most kitchens

24 inch depth

Shallower fit is ideal for L-shaped and galley kitchens

Four coil elements

Three standard 6" and one large 8" element

Safety burners with low wattage outputs

Designed to comply with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off

Chrome drip pans

Each coil element includes a removable chrome pan for easier cleaning

Individual indicator lights

Control panel includes five indicator lights to show when every cooking element in use

Cord included

Pre-installed 3-prong 40 amp range cord

Upfront controls

All knobs are located in the front of the range, letting you adjust your heating without reaching over hot burners

Push-to-turn knobs

Burner knobs require a small amount of force to turn on for added protection against accidents; oven knob is not push-to-turn

Recessed oven door

Smart design limits the depth and protects adjacent cabinets

Porcelain and steel construction

Solid construction built to hold up to everyday use

Waist-high broiler

Broiler is located inside the oven, eliminating the need to transfer contents to a separate compartment towards the floor

Oven light

Exterior on/off rocker switch control for the oven interior

Adjustable oven racks

Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes

Storage compartment

Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen

Removable oven door and range top

Allows for easier cleaning as needed

Broiler tray included

Two-piece porcelain broiler tray with grease well

Anti-tip bracket

Included for user installation to help prevent tipping

ADA compliant design

Upfront controls and easy-to-operate knobs offer easier accessibility that complies with the Americans for Disabilities Act (ADA) guidelines
