Summit 33" Wide Convertible All-Freezer/Refrigerator UF22W

Versatile storage lets you set the temperature for refrigerator or freezer conditions, with a garage-ready freezer design ideal for storage in any space

Summit's selection of full-sized refrigeration offers versatile solutions for maximizing cold storage, with upright frost-free convertible freezers that can also be set at refrigerator temperatures.

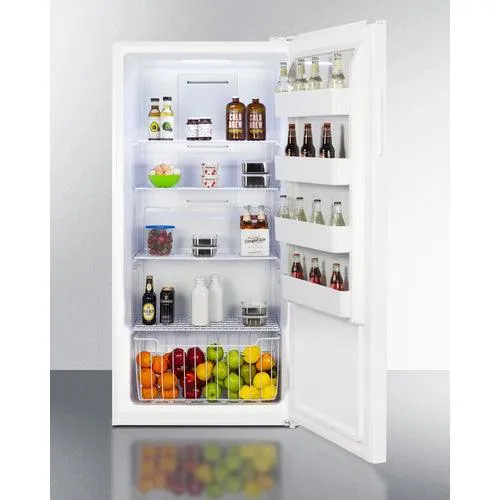

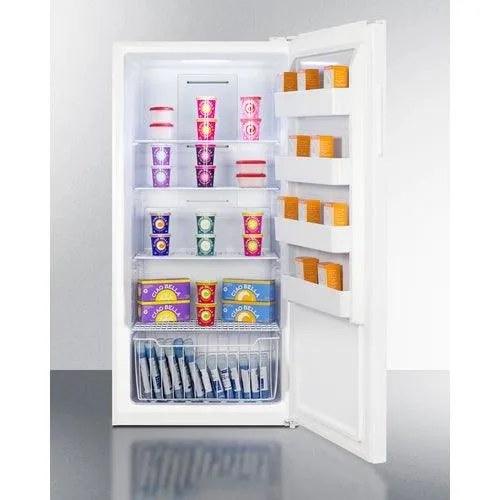

Model UF22W is a front-opening residential freezer that offers a full 21 cu.ft. of storage capacity. A touch control thermostat inside allows users to easily manage the temperature, as well as switch between refrigerator/freezer functionality as needed. Four adjustable wire shelves let you accommodate a variety of sizes, while a lower wire pull-out basket is included for additional storage as needed. Four removable in-door storage racks are ideal for holding condiments, frozen meals, ice cream, and other items. Frost-free operation ensures minimum maintenance and LED lighting makes it easy to navigate the large interior.

This unit comes in a textured white exterior finish. The garage-ready design allows you to use this as a freezer in temperatures as low as 0ºF and high as 110ºF (note: the refrigerator function will only stay in range if the ambient temperature is above 38ºF). The sealed back ensures easy cleanup, with a right angle plug for a flush fit into your outlet for added space savings. The door features top and side grips to make it easier to move as needed, with powerful magnetic door gaskets that create a tight and efficient seal. This unit ships with a non-reversible right hand door swing.

With its versatile functionality and convenient design, this is the ideal freezer (or refrigerator) for any home in need of extra fresh or frozen cold storage.

SPECIFICATIONS

Overview
Height of Cabinet	76.75" (195 cm)
Width	32.75" (83 cm)
Width with Door Open	33.75" (86 cm)
Depth	29.25" (74 cm)
Capacity	21.0 cu.ft. (595 L)
Defrost Type	Frost-Free
Door	White
Cabinet	White
US Electrical Safety	CSA
Canadian Electrical Safety	CSA-C
Energy Usage/Year	540.0kWh/year
Amps	2.2
Voltage/Frequency	115 V AC/60 Hz
Weight	240.0 lbs. (109 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101067568
Freezer
Door Swing	RHD
Reversible	No
Interior Height	68.63" (174 cm)
Interior Width	26.5" (67 cm)
Interior Depth	22.5" (57 cm)
Shelf Type	Wire
Shelf Qty	4
Full Door Shelves	4
Adjustable Shelves	Yes
Thermostat Type	Digital
Interior Light	Yes
Refrigerant Type	R600a
Refrigerant Amount	2.47 oz.
High Side PSI	210.0
Low Side PSI	103.0
Compressor Step Height	11.0" (28 cm)
Compressor Step Width	26.5" (67 cm)
Compressor Step Depth	4.0" (10 cm)
Sound Level	32.4 dB

AVAILABLE UPGRADES

Exterior
Alarm/Thermometer - Factory-installed alarm with external temperature readout PH - Probe Hole DL2B - Factory installed NIST calibrated digital data logger (DDL)

FEATURES

Upright Residential Freezer/Refrigerator

Full-size convertible design to hold freezer or refrigerator temperatures, ideal for bringing extra food storage to second kitchens, basements, garages, and other settings

Convertible operation

Capable of operating as a refrigerator or freezer for true storage flexibility

Garage-ready freezer design

Durable construction allows for garage use as a freezer (ambient temperature range: 0ºF to 110ºF). NOTE: when used as a refrigerator, ambient temperature must be above 38ºF for proper storage conditions

Large capacity

21 cu.ft. interior accommodates plenty of food and beverage items

Frost-free operation

True no-frost operation that eliminates the need to ever manually defrost the interior

Touch panel thermostat

Allows easy management of unit temperature, as well as changing operation between refrigerator/freezer as needed

Adjustable shelves

Rearrange the freezer space to fit any sized item or remove shelves for simple cleanup

Door storage

Four removable racks let you keep additional items in easy reach

Storage basket

Lower wire drawer for additional organizing of stored contents

Interior light

Automatically illuminates when the door is opened

Sealed back

Space saving design for easier cleanability

Right angle plug

Provides flexibility in unit placement without needing added depth

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
