Summit 33" Wide Upright Freezer UF19W

This item has been discontinued click HERE to see the replacement.

Upright design and frost-free operation for user convenience

Summit's selection of full-sized units offers generous storage capacity for a variety of cold storage applications, with frost-free upright all-freezers to ensure low maintenance use in busy facilities.

Made in North America, model UF19W is an upright all-freezer with a 17.9 cu.ft. storage capacity. It comes in a white exterior finish with a textured cabinet and user-reversible door swing. This unit has a sealed back for easier cleanup and a right angle cord to allow a better fit. A simple touch control thermostat is located inside for easy use.

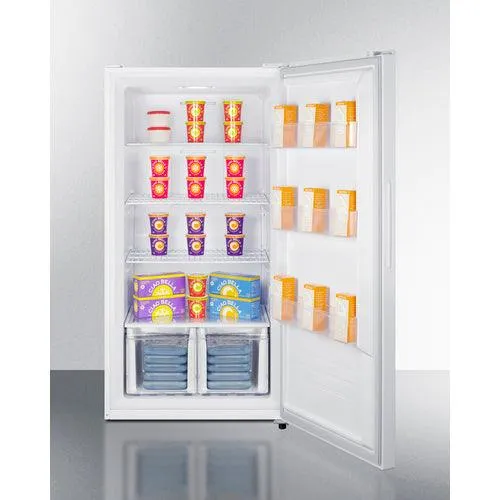

The UF19W utilizes frost-free operation, eliminating the need to manually defrost the interior. Adjustable wire shelves accommodate a variety of sizes, with clear twin crispers located at the bottom. Three removable door racks are also included. This unit features LED lighting for an efficient view.

With its low maintenance design and large storage capacity, the UF19W is the ideal storage solution for any home or break room in need of a reliable freezer for extra storage of frozen goods.

SPECIFICATIONS

Overview
Height of Cabinet	66.13" (168 cm)
Height to Hinge Cap	66.88" (170 cm)
Width	32.5" (83 cm)
Width with Door Open	33.5" (85 cm)
Depth	29.25" (74 cm)
Depth with door at 90°	60.5" (154 cm)
Capacity	17.9 cu.ft. (507 L)
Defrost Type	Frost-Free/Automatic
Door	White
Cabinet	White
US Electrical Safety	CSA
Canadian Electrical Safety	CSA-C
Energy Usage/Year	499.0kWh/year
Amps	1.8
Voltage/Frequency	115 V AC/60 Hz
Weight	200.0 lbs. (91 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101084350
Freezer
Door Swing	RHD
Reversible	Yes
Crisper Qty	2
Crisper Finish	Transparent
Crisper Cover	Glass
Interior Height	57.5" (146 cm)
Interior Width	26.0" (66 cm)
Interior Depth	23.25" (59 cm)
Shelf Type	Wire
Shelf Qty	3
Full Door Shelves	3
Adjustable Shelves	Yes
Thermostat Type	Digital
Interior Light	Yes
Refrigerant Type	R600a
Refrigerant Amount	2.05 oz.
High Side PSI	140.0
Low Side PSI	70.0
Level Legs	2
Compressor Step Height	12.0" (30 cm)
Compressor Step Width	26.0" (66 cm)
Compressor Step Depth	4.0" (10 cm)

AVAILABLE UPGRADES

Exterior
Alarm/Thermometer - Factory-installed alarm with external temperature readout PH - Probe Hole DL2B - Factory installed NIST calibrated digital data logger (DDL) LHD - Left hand door swing

FEATURES

Large capacity

17 cu.ft. of interior space

Frost-free operation

True no-frost operation that eliminates the need to ever manually defrost the interior

Touch panel thermostat

Basic cold/colder/coldest touch controls for easy and intuitive operation

Adjustable shelves

Three wire shelves allow users to rearrange the freezer space to fit any sized item or remove shelves for simple cleanup

Door shelves

Three removable racks provide convenient storage on the door

Twin crispers

Two clear crisper drawers included for easy storage

Interior light

Automatically illuminates when the door is opened

Reversible door

User-reversible door swing for added flexibility to best accommodate your setting

Fully finished white cabinet

Allows the unit to be freestanding

Sealed back

Space saving design for easier cleanability

Right-angle plug

Provides flexibility in unit placement without needing added depth

100% CFC free

Environmentally friendly design does not contain ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
