Summit 36" Wide 208-240V 5-Burner Radiant Cooktop CR5B36T9B

Touch controls for intuitive cooking, with two extra large dual ring elements to accommodate larger sized cookware

Summit's collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters, with user-friendly touch controls.

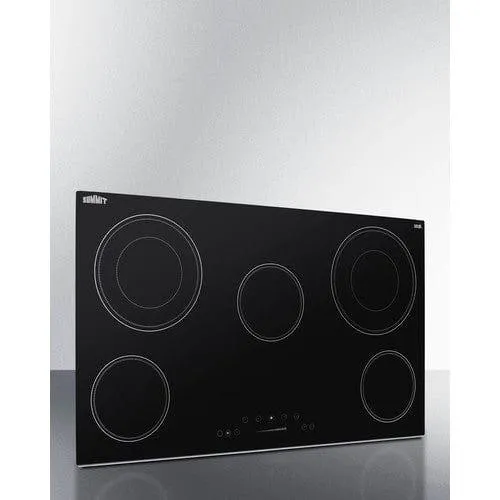

The CR5B36T9B is a 36" wide 208-240V radiant cooktop designed to fit popular 34 3/4" W x 19 5/8" D counter cutouts. The surface is made from smooth EuroKera ceramic glass in a jet black finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional.

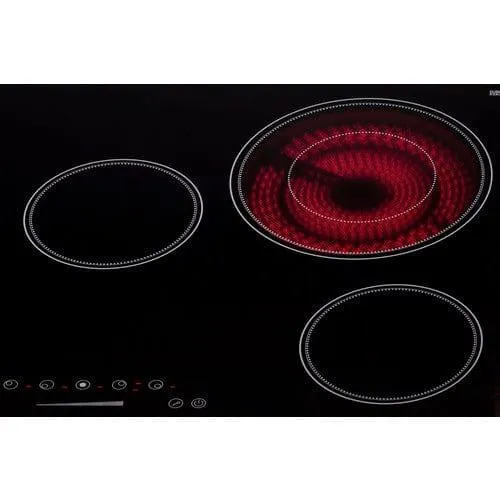

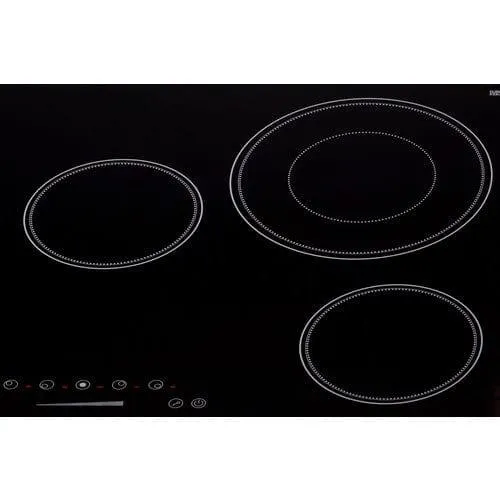

Five elements let you meet a variety of cooking needs. The two extra large dual ring elements in the rear (2200W 9" element on the left and 3000W 9 3/4" element on the right) allow you to efficiently heat woks, Dutch ovens, and other large cooking vessels or to switch to the inner 5 1/2" elements as needed. The 6 1/2" 1200W front burners cover standard sizes, while the center 100W warming zone element lets you keep cookware heated without overcooking.

The digital controls are centered upfront, ensuring users won't have to reach over hot burners to adjust the temperature. The intuitive touch design is easy to operate and clean. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes) that can either turn the unit off when complete, or serve as a visual countdown with an audible alert when the set time has been reached. Safety features include a child lock function, automatic shutoff after two hours, and a residual heat indicator.

With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR5B36T9B brings a user-friendly cooking performance with reliable safety to the kitchen. Additional choices are available in 24" and 30" wide sizes, as well as white glass finishes. Browse the full Summit lineup for more.

SPECIFICATIONS

Overview
Height of Cabinet	2.13" (5 cm)
Width	35.5" (90 cm)
Depth	20.5" (52 cm)
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	30.0
Voltage/Frequency	240 V AC/60 Hz
Weight	36.0 lbs. (16 kg)
Shipping Weight	35.5 lbs. (16 kg)
Parts & Labor Warranty	1 Year
UPC	761101077574
Electric Cooktop
Heating Type	Radiant
Surface	Glass
Element Type	Glasstop
Number of Elements	5
Controls	Digital
Cooking Timer	Yes
Countertop Cutout Height	3.2" (8 cm)
Countertop Cutout Width	34.75" (88 cm)
Countertop Cutout Depth	19.63" (50 cm)
Element #1 Size	6.5" (17 cm)
Element #1 Wattage	1200.0
Element #2 Size	9.0" (23 cm)
Element #2 Wattage	2200.0
Element #3 Size	6.5" (17 cm)
Element #3 Wattage	100.0
Element #4 Size	9.75" (25 cm)
Element #4 Wattage	3000.0
Element #5 Size	6.5" (17 cm)
Element #5 Wattage	1200.0
Power Cord Included	No

FEATURES

36" wide 5-burner radiant cooktop

Designed to fit common 34 3/4" x 19 5/8" counter cutouts

EuroKera glass surface

Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish

Extra large 3000W burner

Rear right burner comes with a 9 3/4" diameter and powerful 3000W cooking power to handle large pots and help boil water with more speed

Large 2200W burner

Left rear 2200W element is 9" in diameter to handle larger cooking vessels

2 Standard 1200W burners

Front left and front right burners are 6.5" in diameter to meet most cooking needs

Dual cooking zones

Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware

Warming zone

Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating

Digital touch controls

Easy operation with a digital control panel and digital display conveniently centered upfront

9 power levels

Select and adjust your heating levels at the touch of a button

Timer

Allows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is up

Residual heat indicator light

Indicator shows when the surface is still hot to touch

ADA compliant design

Upfront controls meet ADA guidelines for easier accessibilty

Child lock

Safety feature lets you lock the cooktop to prevent unsupervised heating

Safety cut-off function

If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off

Automatic shutoff

If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating

208-240V operation

Requires professional hardwired installation (cord not included)
