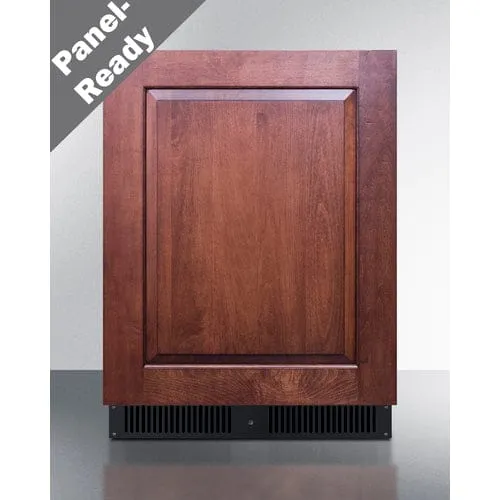

Summit AL54IF | 24" Wide Built-In All-Refrigerator | ADA

The Summit 24" Wide Built-In All-Refrigerator is a versatile and convenient addition to any kitchen. With its wide design, it can easily store all your refrigerated goods in one place. And with its built-in feature, it seamlessly blends in with your existing cabinetry. Enjoy an organized and aesthetically pleasing kitchen with the Summit All-Refrigerator.

Designed to fit under lower ADA compliant counters

SUMMIT's AL54 series features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

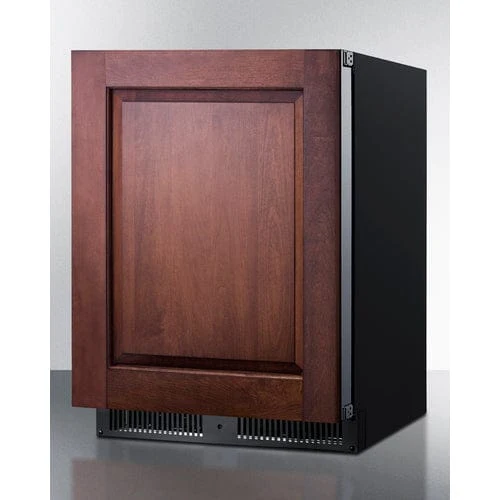

Sized with a convenient 24" footprint, the AL54IF is just 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished black cabinet allows freestanding use, while the front-breathing system also allows this unit to be built-in with minimum clearance. The reversible door features a European-style fully articulating hinge for smooth opening. This also allows the door to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle plug for a better fit.

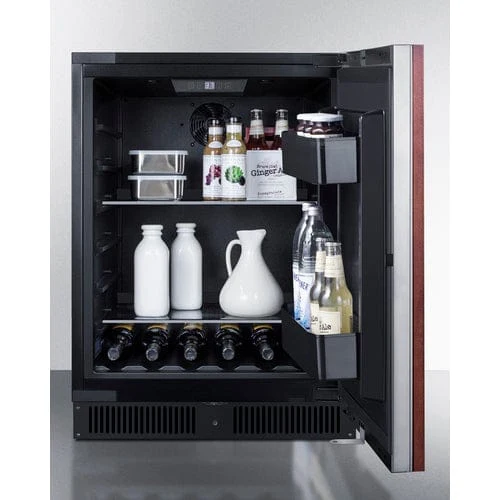

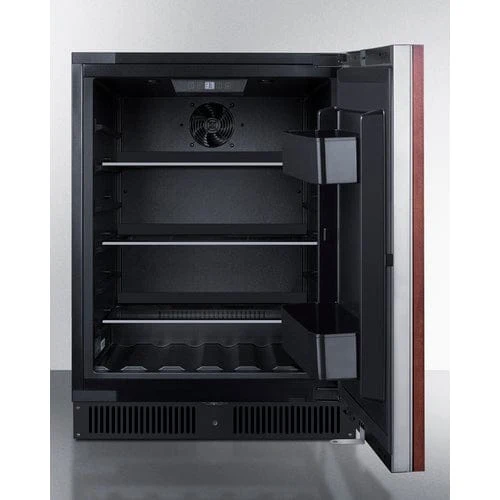

Inside, the AL54IF utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes adjustable glass shelves for flexible, spill-proof storage and two large door racks ideal for keeping condiments in easy reach. The floor is specially slotted to hold bottles in place. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

The AL54IF refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. Additional styles are available, as well a matching frost-free freezer (model ALFZ53IF). Browse the full Summit line to explore your endless options.

SPECIFICATIONS

Overview
Height of Cabinet	32.0" (81 cm)
Width	23.38" (59 cm)
Depth	22.63" (57 cm)
Depth with door at 90°	46.0" (117 cm)
Capacity	4.4 cu.ft. (125 L)
Defrost Type	Frost-Free
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	270.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	100.0 lbs. (45 kg)
Shipping Weight	130.0 lbs. (59 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101053998
Refrigerator Features
Sabbath Mode	Yes
Door Swing	RHD
Reversible	Yes
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	2
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	0.99oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	36 to 43ºF
Sound Level	33.3dB
Dimensions
Interior Height	24.38" (62 cm)
Interior Width	20.0" (51 cm)
Interior Depth	16.63" (42 cm)
Compressor Step Height	3.25" (8 cm)
Compressor Step Width	20.0" (51 cm)
Compressor Step Depth	5.25" (13 cm)

AVAILABLE UPGRADES

Exterior
LHD - Left hand door swing SSK - Stainless steel kickplate
Door
CDG-Emerald green door CDY-Saffron gold door wrap CDB-Cobalt blue door wrap CDP-Lavender purple door wrap

FEATURES

24" Wide ADA Height All-Refrigerator

Panel-ready refrigerator sized at 32" high for built-in installation under ADA compliant counters

Custom style

Door accepts overlay panel, allowing you to seamlessly blend the refrigerator into your space

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

Panel-ready door

Customize this unit using the included 2-piece bracket system (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)

Easy panel installation with included 2-piece bracket kit

Enhanced panel execution allows the unit to be flush with cabinets

Stainless steel door

Fully finished door also allows you to choose a traditional stainless steel front if not installing an overlay panel

Fully articulating hinge

European style hinge design ensures a flush fit and allows for a smoother opening

Frost-free operation

No-frost operation for minimum user maintenance

Digital thermostat

Electronic controls located inside the unit for precise temperature management

Recessed LED light

Efficient and attractive presentation with LED lighting

Adjustable glass shelves

Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup

Door storage

Two removable door racks offer convenient storage for condiments and bottles

Bottle slots

Floor is specially slotted to store wine and other bottles safely in place

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Open door alarm

Audible alarm will sound if the door is left open longer than one minute

High temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 96 hours

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Factory-installed lock

Keyed lock located in the kickplate for optional security

Sealed back

Space-saving design that offers easier cleanability

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Matching freezer

Pair with the ALFZ53IF frost-free freezer to create a complete refrigerator/freezer set under the counter

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
