Summit AL55IF | 24" Wide Built-In All-Refrigerator | ADA

This Summit AL55IF all-refrigerator offers a compact 24" width and built-in design for easy installation under low counters, perfect for ADA compliant kitchens. With reliable cooling performance, this compact refrigerator is ideal for small spaces while providing ample storage for your food and beverages.

Designed to fit under lower ADA compliant counters

SUMMIT features built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

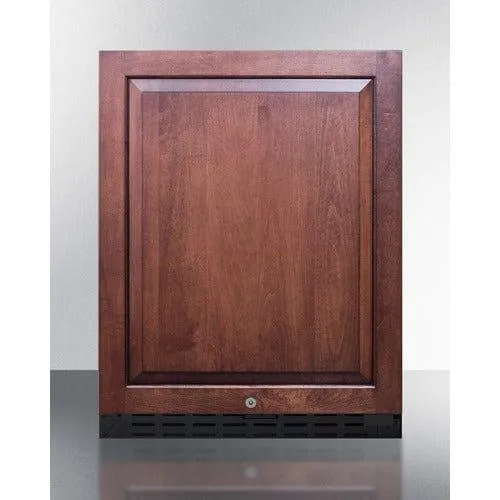

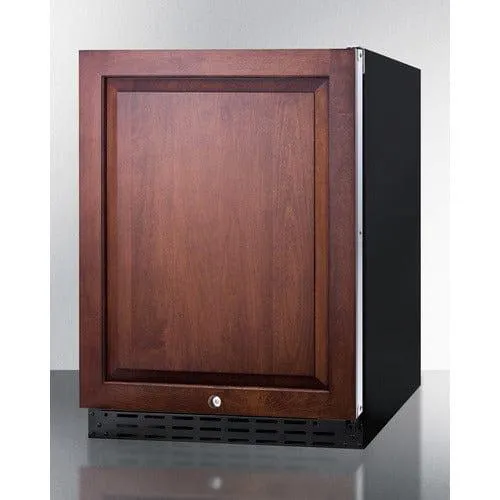

The AL55IF refrigerator meets both residential and commercial standards for versatile use. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 3/4" H x 23 3/16" W; 3/4" thick with a maximum weight of 10 lbs.). The door is factory reversible, and users must supply their own door handle. A temperature alarm offers added security should the temperature go beyond the setpoint, and the optional Sabbath Mode can be used to disable certain electrical features during periods of religious observance. The automatic defrost system keeps the unit running efficiently with little user maintenance, and the internal fan ensures the unit is evenly cooled.

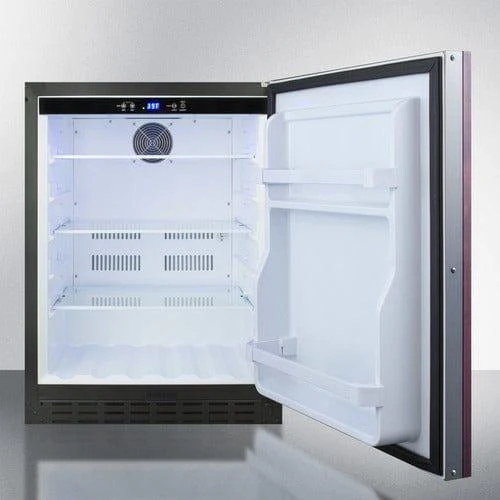

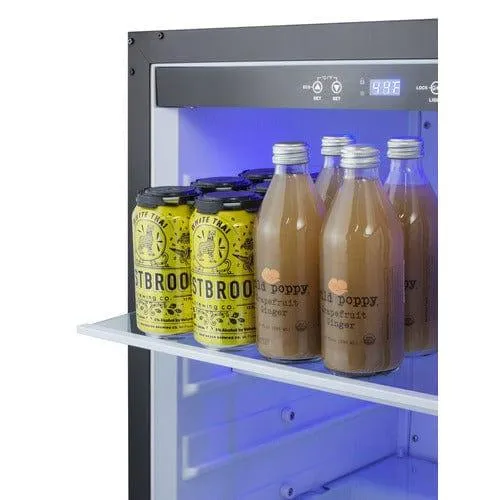

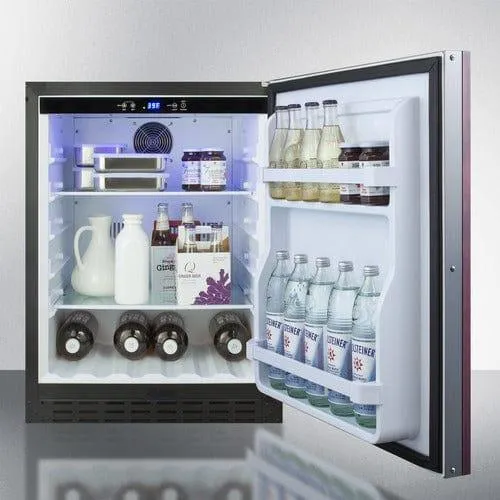

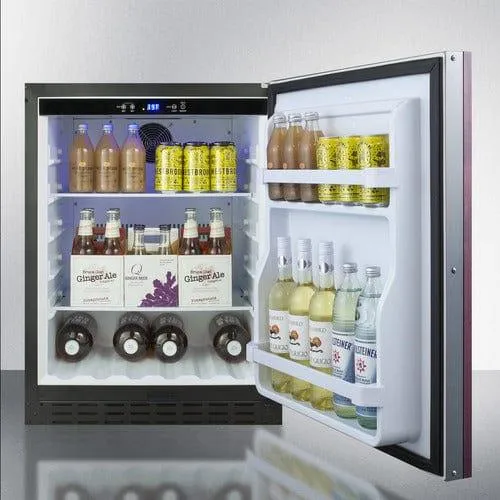

Inside, the AL55IF has a digital control panel which allows you to manage the unit’s temperature with ease. An adjustable temperature range between 36 and 46ºF ensures contents are kept cold. Three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two door racks are ideal for keeping condiments within easy reach, while the slotted floor ensures easy storage of bottles. The dimmable soft LED lighting in a gentle blue hue with three brightness settings offers an attractive and efficient presentation inside the white interior.

With its advanced user features and versatile design, the AL55IF is an excellent addition to any ADA compliant setting looking for a refrigerator with a modern, elegant look. For a matching frost-free freezer, see the ALFZ51IF.

SPECIFICATIONS

Overview
Height of Cabinet	31.63" (80 cm)
Width	23.5" (60 cm)
Depth	23.38" (59 cm)
Depth with Handle	25.38" (64 cm)
Depth with door at 90°	45.0" (114 cm)
Capacity	4.2 cu.ft. (119 L)
Defrost Type	Automatic
Door	Panel-Ready
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	250.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	95.0 lbs. (43 kg)
Shipping Weight	135.0 lbs. (61 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101067049
Refrigerator Features
Sabbath Mode	Yes
Door Swing	RHD
Reversible	Factory Reversible
Shelf Type	Glass
Shelf Qty	3
Full Door Shelf Qty	2
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.23oz.
High Side PSI	150.0
Low Side PSI	50.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	36 to 46ºF
Sound Level	33.7 dB
Dimensions
Interior Height	23.5" (60 cm)
Interior Width	19.0" (48 cm)
Interior Depth	17.25" (44 cm)
Compressor Step Height	5.5" (14 cm)
Compressor Step Width	19.0" (48 cm)
Compressor Step Depth	5.0" (13 cm)

AVAILABLE UPGRADES

Exterior
Extra key for IF door LHD - Left hand door swing Latch - Factory-installed door latch requires manual release to open unit
Handle
TBC Copper Towel Bar Handle CP Full-Length Copper Pipe Handle

FEATURES

ADA compliant

32” height allows for installation within ADA-compliant spaces

Commercially approved

ETL-S listed to NSF-7 commercial standards

Built-in capable

Front-breathing design allows the unit to be built-in under counters

Digital control panel

Makes for easy temperature reading/management with electronic controls inside

Panel-ready door

Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 3/16" W x 27 3/4" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles

White interior

Classic interior allows for easy cleaning and viewing of products

Adjustable shelving

Three easy-glide shelves that extend 50% give space and flexibility when organizing the interior’s contents

Brake shelving system

Provides added safety when loading and unloading the unit's 3 shelves

Slotted floor

Allows for easy storage of bottles

Automatic defrost

Reduced maintenance with auto defrost system

Internal fan

Fan-forced cooling ensures the unit is evenly cooled from top to bottom

Interior lighting

Dimmable LED lighting (with 3 brightness settings) in a blue hue allows for easy viewing of contents while maintaining an elegant feel

Temperature alarm

Alarm sounds if temperature goes out of recommended range after 2 hours

Sabbath mode

Optional feature disables alarms, interior light, and displays for up to 96 hours

Factory-reversible door swing

Factory-reversible door swing makes it easy to best accommodate your setting (unit comes with RHD but can be converted to LHD upon request at the time of purchase)

Integrated hinge

Flat stainless steel hinge ensures no added height is needed when installing under a counter

Fully finished black cabinet

Allows unit to be used freestanding

Matching freezer

Pair with Summit ALFZ51IF to create a matching set

100% CFC free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
