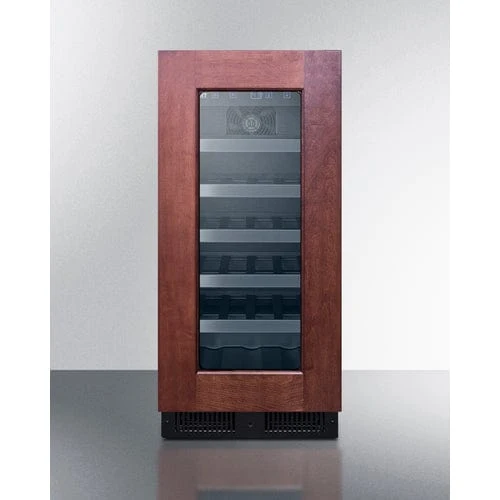

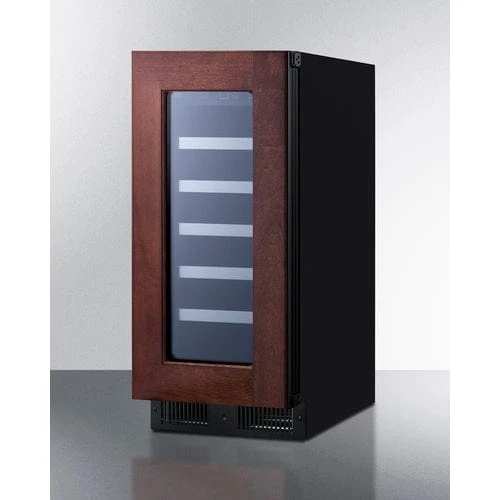

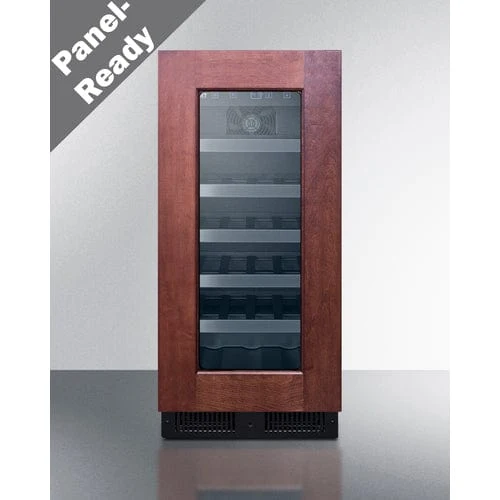

Summit ALWC15PNRLHD 15" Wide Built-In Wine Cellar, ADA Compliant (Panel Not Included)

The Summit ALWC15PNRLHD is a top-of-the-line 15" wide built-in wine cellar that is ADA compliant (panel not included). With expertly crafted features and expert design, this wine cellar ensures optimal storage conditions for your collection. Keep your wine at its peak in this professional-grade cellar.

Uniquely sized under 32" high for an easy fit under lower ADA compliant counters

Summit offers the industry's largest selection of 32" high ADA compliant appliances, with quality choices for built-in or freestanding use in 15" wide spaces.

The ALWC15PNRLHD is a wine cellar sized just under 15" wide and 32" high to fit under lower ADA compliant counters. The front-breathing system allows built-in installation, while the fully finished black cabinet also makes it safe for freestanding use. This unit includes a fully articulating European-style hinge and 2-piece bracket kit that lets you easily install overlay panels over the door trim to create a custom look. The double pane tempered glass door provides a full view of stored contents and a front lock offers convenient security.  For added space savings, the ALWC15PNR is designed with a sealed back and right angle cord.

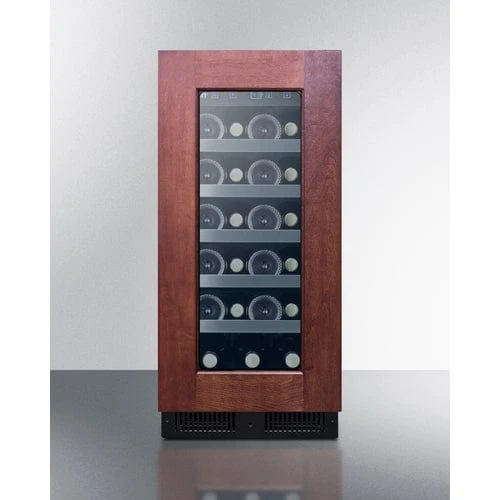

Five wooden shelves let you store up to 23 bottles of your favorite wine. The shelves are specially designed to store either standard Bordeaux style or wider Burgundy style bottles. Recessed LED lighting offers an attractive and energy efficient presentation for your collection. This model utilizes automatic defrost for easy maintenance and includes an internal fan to ensure more even temperature distribution. An audible alarm sounds if the door has been left open for over one minute, or if the temperature has risen out of the recommended storage range. This unit is also equipped with Sabbath mode to allow users the option of disabling certain electrical functions during periods of religious observance.

With its unique size and user-friendly features, the ALWC15PNRLHD is the perfect choice for bringing quality wine storage to ADA compliant settings. Additional ADA compliant choices are available in 6", 18", 24", and 36" wide sizes.

SPECIFICATIONS

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Nominal Width	15.0" (38 cm)
Width	14.75" (37 cm)
Nominal Depth	24.0" (61 cm)
Depth	23.63" (60 cm)
Depth with door at 90°	38.25" (97 cm)
Capacity	2.2 cu.ft. (62 L)
Bottles	23 bottles
Defrost Type	Automatic
Door	Glass/Panel-Ready Frame
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	65.0 lbs. (29 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101092072
Wine Cellar
Number of Zones	1
Door Swing	LHD
Reversible	Yes
Adjustable Shelves	Yes
Shelf Type	Wood
Shelf Qty	5
Thermostat Type	Digital
Interior Light	Yes
Refrigerant Type	R600a
Refrigerant Amount	0.78 oz.
High Side PSI	270.0
Low Side PSI	105.0
Interior Height 1	21.25" (54 cm)
Interior Width 1	10.5" (27 cm)
Interior Depth 1	17.25" (44 cm)
Compressor Step Height	3.5" (9 cm)
Compressor Step Width	10.5" (27 cm)
Compressor Step Depth	5.0" (13 cm)
Level Legs	4
Temperature Range	41º to 64ºF
Sabbath Mode	Yes
Sound Level	32.9 dB

AVAILABLE UPGRADES

Exterior
SSK - Stainless steel kickplate Latch - Factory-installed door latch requires manual release to open unit
Door
T1S Door Tint T4 Door Tint T3 Door Tint T2 Door Tint T1 Door Tint

FEATURES

15" Wide Undercounter Wine Cellar

32" high single zone glass door wine cellar with panel-ready door trim

ADA Compliant

Sized at 32" high for use under lower ADA compliant counters

Panel-ready door trim

European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry

Built-in capable

Make the best use of space by installing your appliance under the counter

Commercial design

Meets UL-471 commercial standards

Seamless stainless steel trimmed glass door

Provides a full display of your stored collection with a heat-safe double tempered design

Factory installed lock

Keyed lock for a secure interior, with two keys included

Digital thermostat

Electronic controls for precise temperature management, with indicator lights for red, white, and sparkling wines

Digital display

Temperature readout can be shown in Celsius or Fahrenheit

Recessed LED lighting

Gentle illumination with an on/off switch

Wooden shelves

Classic look holds up to 23 Bordeaux or Burgundy style bottles

Slotted floor

Floor includes slots to hold bottles in place, and can store up to three champagne bottles

Automatic defrost

Reduced maintenance and steady temperature performance

Professional handle

Stainless steel handle completes the professional look

Left hand door swing

For this unit with the door opening from the other side, see model ALWC15PNR

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Open door alarm

Alarm sounds if the door is left open for more than 60 seconds

High temperature alarm

Audible alarm sounds if the interior temperature rises out of set range

Temperature memory function

In the event of power loss, unit will return to its last settings when power is restored

Right angle cord

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully articulating European style hinge

Smoother opening and a better fit with an integrated European hinge

Flush back

Space saving design makes it easier to install flush against the wall

Matching beverage center available

Pair with the ALBV15PNR for a perfectly matched ADA compliant set

Fully finished black cabinet

Allows the unit to be used freestanding

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
