Summit ASDG2411PNR 24" Wide Built-In Beverage Center | ADA

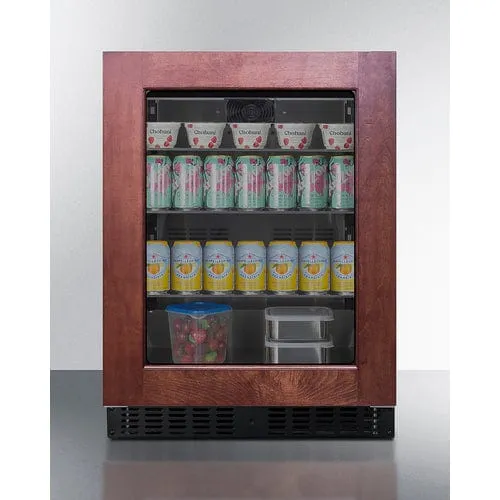

The Summit ASDG2411PNR is the perfect addition to any kitchen, with its 24" wide built-in design and ADA compliance. Keep your beverages chilled and easily accessible with this sleek and efficient beverage center. Panel not included.

Just under 18" deep for an easy fit in island kitchens, wet bars, and other undercounter spaces with shallower cutouts

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

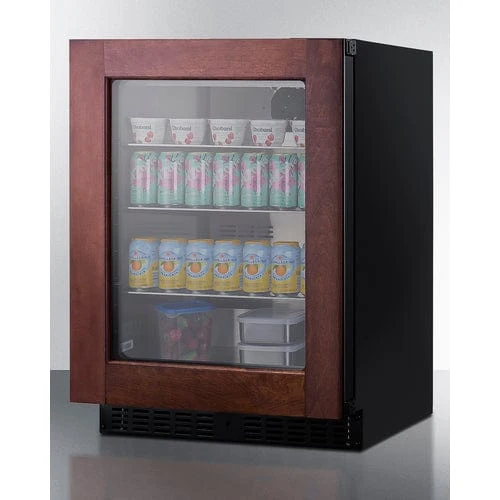

Model ASDG2411PNR is a 24" wide beverage refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit features our European style fully articulating hinge, allowing for easy installation of custom door trim panels to match your cabinetry. The sealed rear and right angle cord ensure a better fit. The door is user-reversible and includes a front lock to protect your stored items.

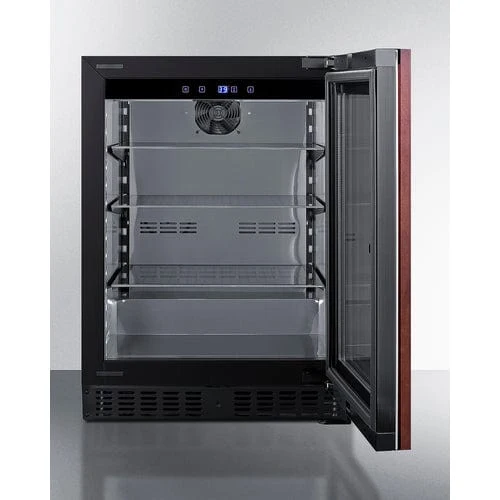

Inside, the ASDG2411PNR features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. This unit includes an LED strip on each side of the interior cabinet, with dimmable settings in a gentle white hue that lets you create the perfect display conditions. A commercial grade cantilevered shelving system with glass shelves ensures flexible storage to accommodate any size. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

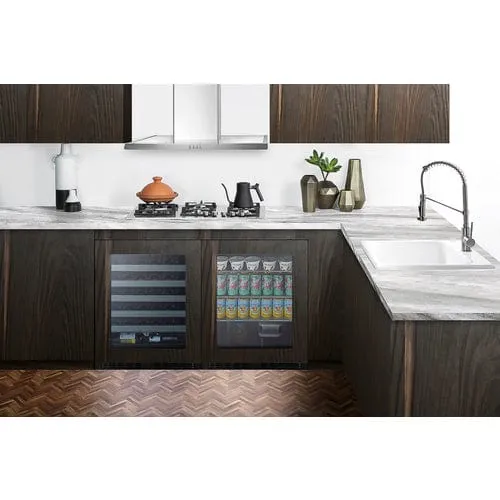

The ASDG2411PNR is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDW2412PNR wine cellar. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.

SPECIFICATIONS

Overview
Nominal Height	32.0" (81 cm)
Height of Cabinet	32.0" (81 cm)
Nominal Width	24.0" (61 cm)
Width	23.38" (59 cm)
Nominal Depth	18.0" (46 cm)
Depth	17.75" (45 cm)
Depth with door at 90°	39.88" (101 cm)
Capacity	3.25 cu.ft. (92 L)
Defrost Type	Frost-Free
Door	Glass/Panel-Ready Frame
Cabinet	Black
US Electrical Safety	ETL
Canadian Electrical Safety	ETL-C
Sanitation	ETL-S
Energy Usage/Year	285.0kWh/year
Amps	1.0
Voltage/Frequency	115 V AC/60 Hz
Weight	120.0 lbs. (54 kg)
Parts & Labor Warranty	1 Year
Compressor Warranty	5 Years
UPC	761101104188
Refrigerator Features
Sabbath Mode	Yes
Door Swing	RHD
Reversible	Yes
Height Adjustable	Yes
Shelf Type	Glass
Shelf Qty	3
Adjustable Shelves	Yes
Thermostat Type	Digital
Fan Type	Interior and Exterior
Refrigerant Type	R600a
Refrigerant Amount	1.38oz.
High Side PSI	270.0
Low Side PSI	105.0
Level Legs Qty	4
Interior Light	Yes
Temperature Range	36 to 43ºF
Sound Level	33.1 dB
Dimensions
Interior Height	24.5" (62 cm)
Interior Width	19.5" (50 cm)
Interior Depth	12.25" (31 cm)
Compressor Step Height	3.75" (10 cm)
Compressor Step Width	19.5" (50 cm)
Compressor Step Depth	4.5" (11 cm)

AVAILABLE UPGRADES

Door
T1S Door Tint T4 Door Tint T3 Door Tint T2 Door Tint T1 Door Tint
Exterior
LHD - Left hand door swing

FEATURES

24" wide beverage center

3.25 cu.ft. interior for residential or commercial cold storage

Less than 18" deep

Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

ADA compliant design

32" height allows easy installation under lower ADA compliant counters

Adjustable height

Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

Built-in capable

Front-breathing design lets you make the best use of space by installing your appliance under the counter

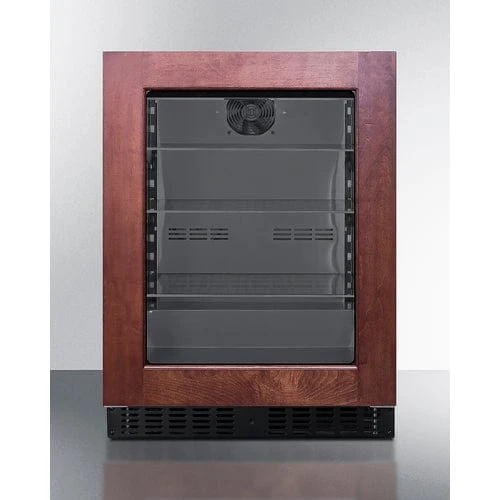

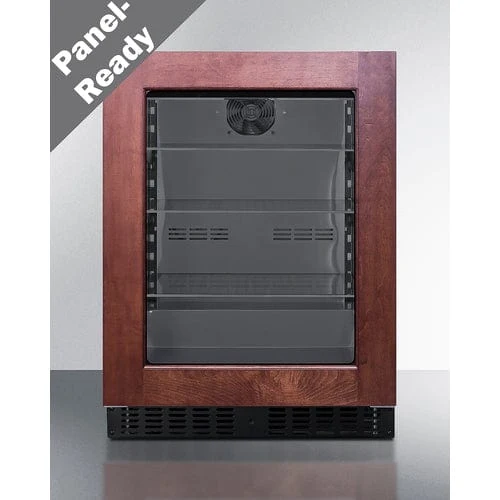

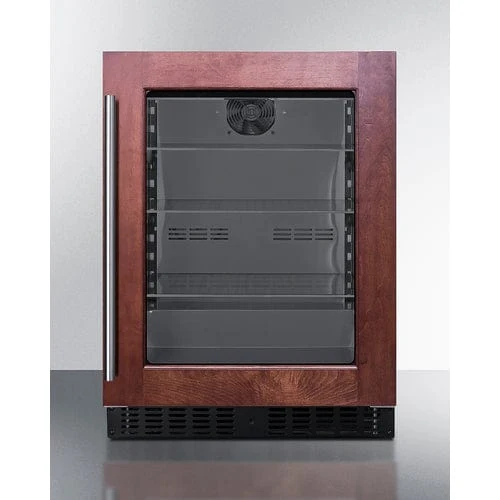

Panel-ready door

European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 28 1/4" H x 23 1/4" W with a 3 1/4" H x 3 1/4" W inner frame

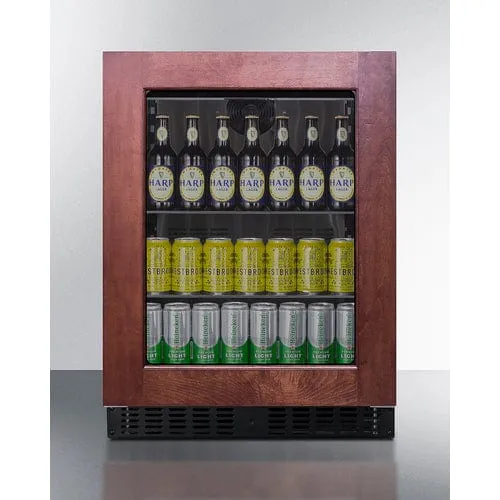

Double pane tempered glass door

Elegant design offers a clear but protected view of your interior

Seamless stainless steel door trim

Glass is framed by with a flush one-piece stainless steel trim for an elevated look

Stainless steel interior

Walls and floor are constructed from stainless steel for added strength and easy cleanup

Factory installed lock

Keyed lock for a secure interior (2 keys included)

Digital thermostat

Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

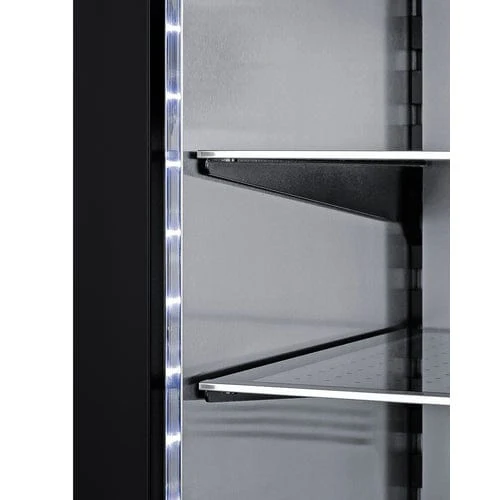

Dimmable LED lighting

Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

Frost-free operation

No-frost operation for minimum user maintenance

Internal fan

Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

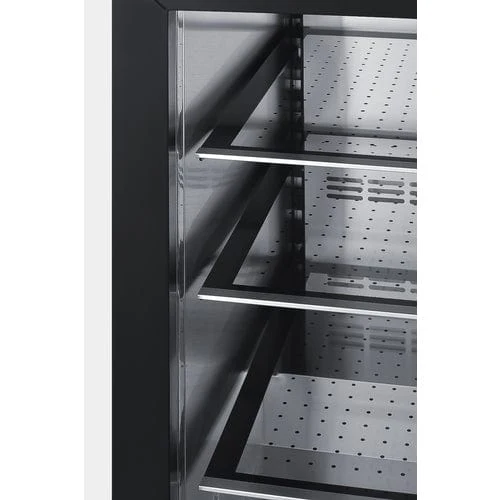

Cantilevered shelving

Adjustable glass shelves with stainless steel clips allow you to adjust the shelf height for the best fit

Open door alarm

Audible alarm will sound if the door is left open longer than one minute

High temperature alarm

High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting

Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function

Unit will retain its last settings when power is restored in the event of power loss

Right angle plug

Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back

Space-saving design with no exposed coils that offers easier cleanability

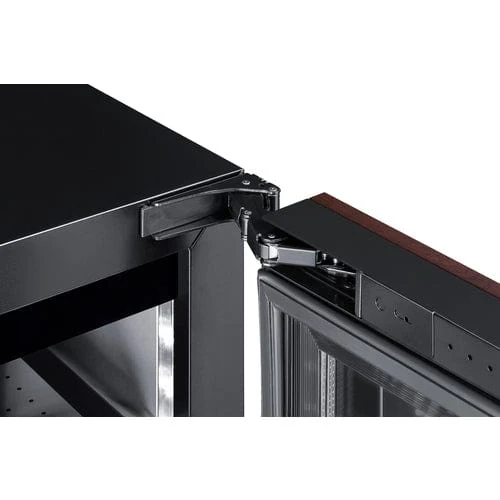

Fully articulating European style hinge

Smoother opening and a better fit with an integrated European hinge

Reversible door

User-reversible door swing for added flexibility

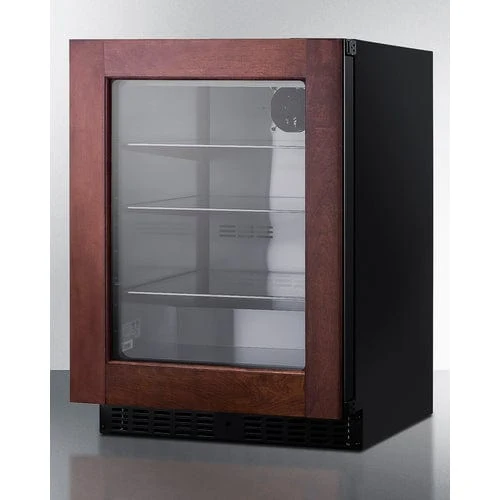

Fully finished black cabinet

Allows the unit to be used freestanding

Commercially approved

ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

100% CFC Free

Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant

Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
